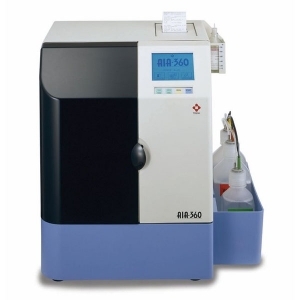

Tosoh Bioscience AIA 360 Automated Immunoassay Analyzer

Contact us with any questions.

Thank you!

Request Quote

Description

Sophisticated Diagnostics in a Compact Analyzer

The AIA-360’s size and affordability make it an excellent fit for POLs and small hospitals, as well as for specialty testing or for use as a back-up analyzer.

System Features:
• 36 tests per hour
• First result ~ 20 minutes
• Full ST test menu
• Random access
• Continuous processing
• Simple touch screen operation
• Bar-coded primary tube sampling

Ideal for:
• Physician Office Labs
• Small hospitals
• Specialty analyzer
• Back-up analyzer

Test Cup Reagent Technology:

l Dry reagent format

l 90 day calibration stability for most assays

l Single, unitized cups–No pre-mixing or measuring

l Interchangeable results between Tosoh AIA Systems

l Bar-coded for identification/inventory management

l 10 minute incubation time for most assays





Additional information

Manufacturer

Specifications

Method: Fluorescence Enzyme Immunoassay
Detection: LED illuminant, non flow cell/TOP-TOP photometry method
Throughput: 36 tests per hour
Reaction time: Antigen antibody reaction: 10 minutes
Sample loading: Capacity 25 samples maximum
Reagent loading: Capacity 25 tests maximum
Test for each: sample 4 tests per sample
Sampling: Fixed Probe with Clot detection function
Sample Vessel: Primary Tube 13 x 75/100mm, 16 × 75/100mm (diameter x length)
2 mL sample cup
Barcode: Code39, Code128, ITF, NW-7 and JAN
Interface: RS232C
Size/Weight: 16(W) x 16(D) x 21(H) lnches / 61 lbs.
400(W) x 400(D) x 520 (H) mm / 29 kg
Power source: AC100-240V. 50/60Hz 250VA
Environment: Temperature: 15-30° C, Relative Humidity 40-80%

Test Menu

Tumor Thyroid Reproductive
AFP TSH β-HCG
CEA TT3 HCG
PA T4 DHEA-S
27.29 FT3 E2
CA125 FT4 FSH
CA 19-9 T-U LH II
TSH 3rd-Gen * PRL
Diabetes TPOAb * PROG II
C-Peptide II TgAb * PROG III
IRI SHBG
Testosterone
Cardiac Anemia Kidney
BNP New! FER BMG
CK-MB B12 * Cystatin C
cTnl I 2nd-Gen FOLATE * intact PTH
Myoglobin RBC FOLATE *
Metabolic Additional
CORT ACTH
HGH Homocysteine
IgE II
PAP
25-OH Vitamin D
