Awareness Technology Stat Fax 1904 Biochemistry Analyzer

The compact and robust design of the Stat Fax® 1904 makes it an excellent choice for basic photometric biochemistry analysis. It delivers accurate and reproducible results, supporting a wide range of flexible applications. The Stat Fax 1904 is a stand-alone biochemistry analyzer that measures absorbance or concentration and calculates results for both endpoint and kinetic colorimetric clinical assays.

Features & Benefits:

• Accepts 12 mm test tubes
• Standard 6-filter configuration (340 nm – 600 nm)
• Reads and calculates results of endpoint and kinetic colorimetric clinical assays
• Kinetic assays can be plotted on the internal graphics printer to verify linearity
• Built-in 37˚C incubation block with 12 stations
• Supports single or multipoint calibration
• Can store more than 50 tests in memory

Photometer:

• Stability: Drift of no more than 0.005 A in 8 hours (bichromatic)
• Light Source: Tungsten halogen lamp with lamp saver feature
• Standard Wavelengths: 340, 405, 450, 505, 545, 600 nm
• Optional Filter Range: 340 nm – 700 nm (custom order)
• Reading Range: 0 to 2.5 absorbance units

Sampling & Tube Handling:

• Tube Size: 12 mm minimum
• Minimum Sample Volume: 1 mL
• Read Speed: 3 seconds per tube
• Temperature: 37˚C, block with 12 stations constantly on; read cell has on/off switch

Operating Modes & Calculations:

• Calibration: Single point calibration by standard or factor; multipoint calibration with point-to-point curve fit
• Rate Measurement: By standard or factor (batch or individually)
• Test Menu: More than 50 open channels to store tests; stores all parameters including wavelengths, calculations, unit codes, linear and normal ranges, rate timing, standard values, test names, and previous standard curves

Physical Specifications:

• Dimensions: 9” × 13.5” × 5” (22.86 × 34.29 × 12.7 cm)
• Weight: 10 lbs (4.5 kg)

Power Requirements:

• 115/230 V AC, 50/60 Hz (switch selectable)

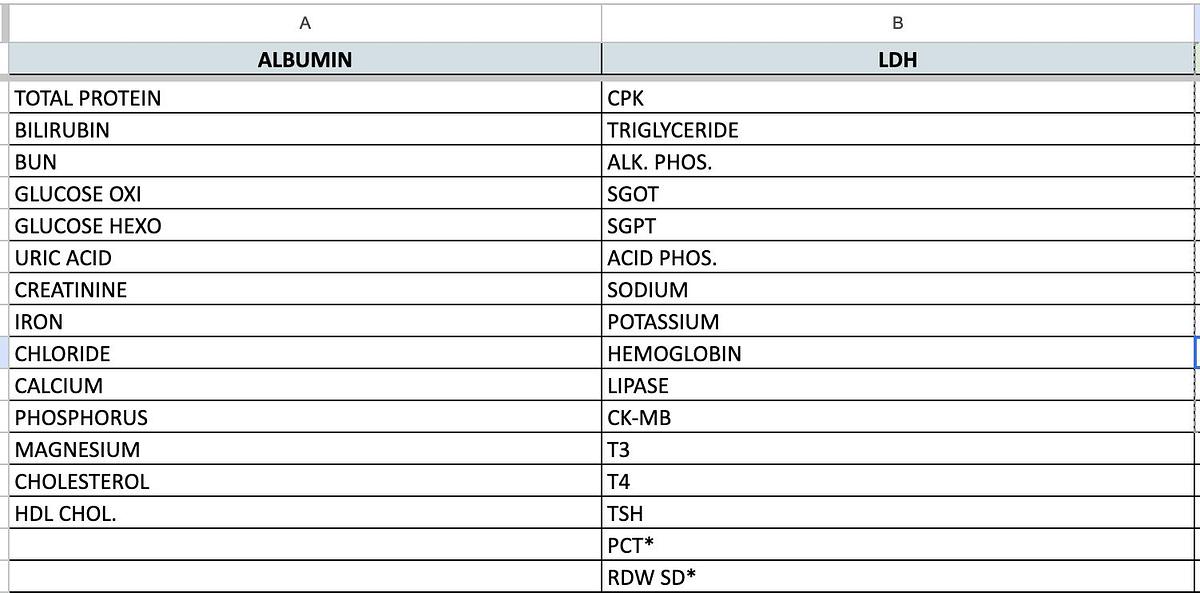

ALBUMIN

TOTAL PROTEIN

BILIRUBIN

BUN

GLUCOSE OXI

GLUCOSE HEXO

URIC ACID

CREATININE

IRON

CHLORIDE

CALCIUM

PHOSPHORUS

MAGNESIUM

CHOLESTEROL

HDL CHOL.

LDH

CPK

TRIGLYCERIDE

ALK. PHOS.

SGOT

SGPT

ACID PHOS.

SODIUM

POTASSIUM

HEMOGLOBIN

LIPASE

CK-MB

T3

T4

TSH

PCT*

RDW SD*
