Tokyo Boeki Biolis 24i Premium, Chemistry Analyzer

This benchtop chemistry analyzer offers a menu of 100 tests, including general chemistry, special chemistry, and drugs of abuse. It can run over 400 tests per hour and can analyze 3–30 µL of serum, plasma, or urine using endpoint, rate, and turbidimetry analytical methods. A bi-directional interface and barcoded primary tube sampling provide positive sample ID and eliminate the need for instrument programming.

The system features semi-permanent reaction cuvettes and an integrated distilled water system, eliminating the need for expensive disposable cuvettes and water cubes. A thorough 10-step cuvette wash station administers heated alkaline and acid washes before and after each run. The analyzer is compatible with all LIS systems, removing the need for paper documentation.

Reagents are barcoded, ready-to-use liquids, with 30-day on-board reagent stability and 14-day calibration stability for easy daily start-up.

Confidence in Results

• Automatic Antigen Excess Check
• Minimal carryover through contact-free sample/reagent air mixing
• Intuitive software and robust hardware

Increase Productivity

• First result in 15 minutes; subsequent results every 30 seconds
• Up to 240 tests/hour
• On-board reagent cooling and monitoring
• Wide measuring range minimizes re-runs, ensuring optimal reagent usage and throughput

Reliability

• Mean time between failure: up to 258 days
• Quick start-up and shut-down
• Very low downtime, ensuring continuity of laboratory service

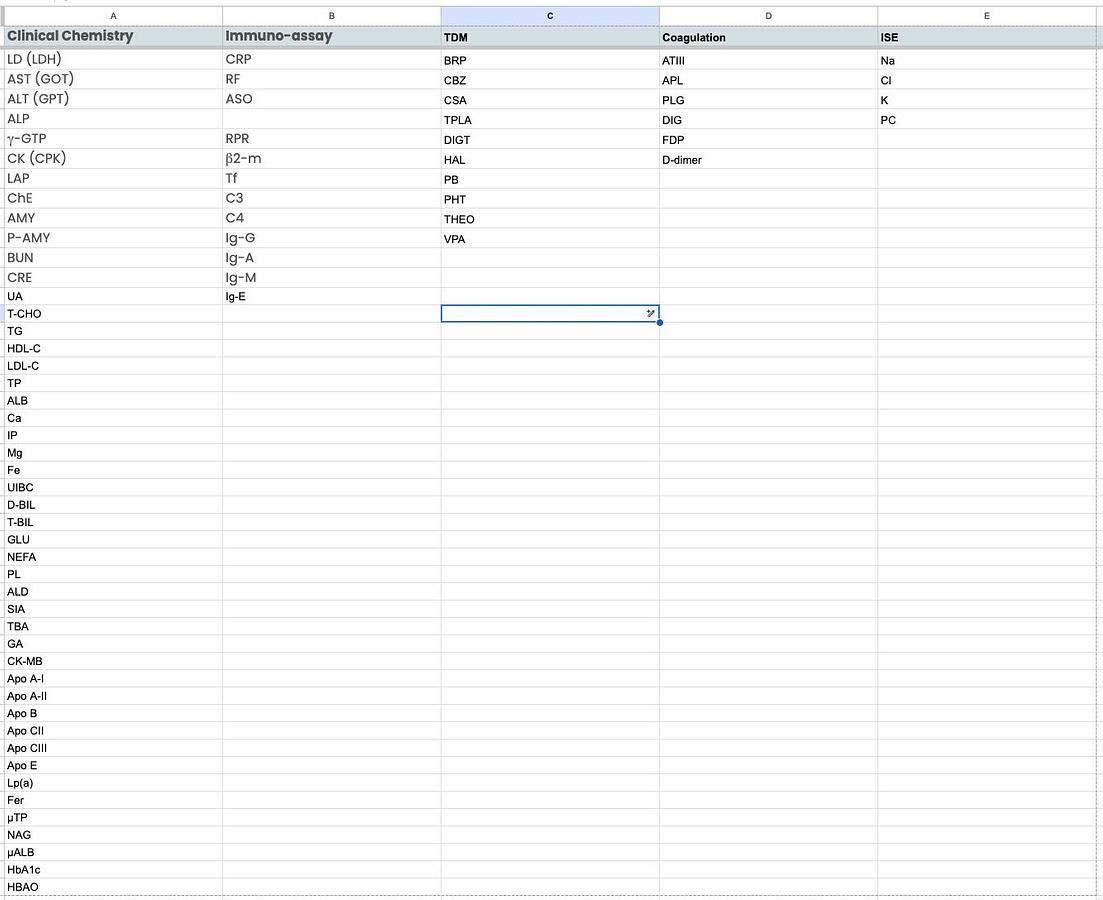

Test Menu

Clinical Chemistry

LD (LDH)

AST (GOT)

ALT (GPT)

ALP

γ-GTP

CK (CPK)

LAP

ChE

AMY

P-AMY

BUN

CRE

UA

T-CHO

TG

HDL-C

LDL-C

TP

ALB

Ca

IP

Mg

Fe

UIBC

D-BIL

T-BIL

GLU

NEFA

PL

ALD

SIA

TBA

GA

CK-MB

Apo A-I

Apo A-II

Apo B

Apo CII

Apo CIII

Apo E

Lp(a)

Fer

μTP

NAG

μALB

HbA1c

HBAO

Immuno-assay

CRP

RF

ASO

TPLA

RPR

β2-m

Tf

C3

C4

Ig-G

Ig-A

Ig-M

Ig-E

TDM

BRP

CBZ

CSA

DIG

DIGT

HAL

PB

PHT

THEO

VPA

Coagulation

ATIII

APL

PLG

PC

FDP

D-dimer

ISE

Na

Cl

K

Onboard reagent cooling (10°C + 2°C) Dual reagent probes with automated washing between reagent addition Reagent level detection and reagent management Automatic reagent changeover Sampling Module Minimum sample volume 150µL Automatic sample dilution Automatic rerun Sample level detection Automatic interior/exterior sample probe washing Reaction Module 60 semi-permanent acrylic cuvettes Reaction temperature 37°C + 0.1°C Automatic 10-step, high temperature cuvette washing system Dual-chamber, air pressure enhanced mixing Optics Module Automatic cell blank monitoring Silicon photo-diode detectors Software Windows®-based LIS compatible (RS-232C bi-directional interface) Levy-Jennings QC monitoring Water supply, wash solutions and waste level alarms Physical Specifications 3L Acid and 3L Alkali wash bottles 10L DI water reservoir, 10L waste container and 5L back-up waste and water containers
