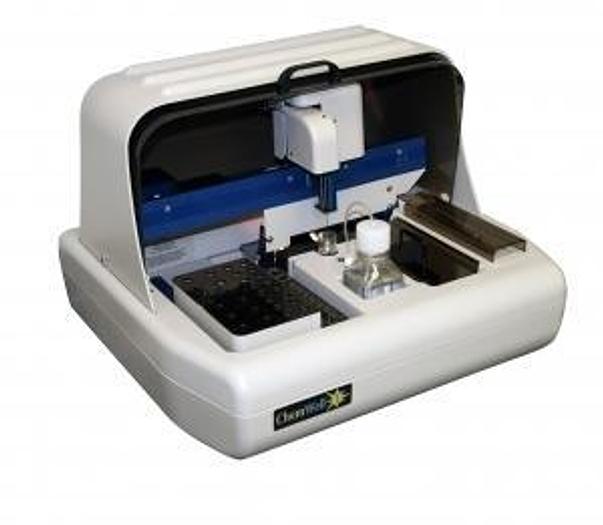

Awarenes Technology ChemWell-T Chemistry Analyzer
Awarenes Technology ChemWell-T Chemistry Analyzer
Contact us for price
Description
The Awareness Technology ChemWell T Chemistry & Turbidimetric Analyzer is a fully automated random access analyzer. Specially designed for biochemistry and immuno-turbidimetric applications, the ChemWell-T works best for small throughput and specialty labs. The analyzer can also be used as a backup analyzer.
A fully open system, the ChemWell-T is controlled by a computer that provides large storage for test scheduling, patient data and quality control, as well as personal reporting formatting per test or a history of tests. The intuitive software also delivers great performance with track gauge and control, self-monitoring, and processing for all biochemical profiles and turbidimetric assays.
The ChemWell-T chemistry analyzer is a compact system with high performance capacities. This Awareness Technology analyzer can process 100 tests per hour with continuous load, random access, automatic dilution, and pre-dilution for samples out of range. Additionally, the system has flexible configurations of the universal rack, and includes 6 wavelengths with the option to add 2 more.
ChemWell-T analyzers provide outstanding value from the day of purchase through daily operation, and through the instrument’s entire life cycle.
Features/Benefits
General Reagent & Sample Handling Incubating, Timing & Temperature Control Reading + (2% of the reading + 0.005A) from 1.0 to 3.0A. Software
Specifications
| Manufacturer | Awareness Technology |
| Condition | New |
| Stock Number | 109 |
| Typical Throughput | Up to 100 tests per hour. |
| Typical Reaction Volume | 250 µL. |
| Reaction Vessel | 5-well cuvettes. |
| Maximum Reaction Volume | 500 µL. |
| Dimensions | 21” (53 cm) width, 15.5” (40 cm) height, 20” (50 cm) depth. |
| Weight | 37 lbs (15 kg). |
| Functions | Dilution, pre-dilution, dispensing samples & reagents. |
| Syringe Pump | Capacity 500 µL, range 2 µL – 450 µL. Settings in increments of 0.5 µL. |
| Probe | 316 L stainless steel for maximum reagent compatibility, level sensing. |
| Mixing | Probe oscillation, time & speed adjustable. |
| Precision for Volumes < 5 µL | < 3% CV. |
| Precision for Volumes > 5 µL | < 2% CV. |
| Max. numbers of Reagents/Samples | Combined 35 in standard rack. Assorted replaceable racks. Total can be increased with custom design racks. |
| Max. number of Reactions | 40 |
| Reaction Temperature | From ambient to 40ºC. Incubation timing is software controlled & automatically optimised. |
| Reagent Cooling | Reagent cooling is standard; cools 8º to 12ºC below ambient through Peltier thermoelectric module. |
| Optical Design | User-selected monochromatic or bichromatic results. 8 position filter wheel with the following standard filters: 340, 405, 505, 545, 580, 630, + 2 optional. Custom configurations available. |
| Interference Filters | Long life, hard coat, ion assisted deposition, 10 nm typical half bandpass. |
| Instrument Bottles | 250 mL priming bottle. |
| Calculation Modes | Absorbance, single standard, factor, fixed time kinetics, kinetics by standard or factor, multi-calibrator point-to-point, linear regressions, cubic spline & percentage absorbance. |
| Self Monitoring Modes | Lamp, filters, reagent levels, mechanical function & more. |
| QC Options | Store control data, print Levey-Jennings or QC range plots. Supplied with programmed protocols for Megazyme test kits. |
| Linear Range | 0.0 to 3.0A. |
| Photometer Accuracy | + (1% of the reading + 0.005A) from 0 to 1.0A. |
| Format | USB with internet upgrades. |
| Supports | Windows® XP, Vista or 7 (computer not supplied). |
| Recommended System | Windows® XP, Vista or 7. 512MB SDRAM, CD drive, USB port. |
| Certifications | NRTL listed, CE marked |
