Beckman Coulter AU5830 Clinical Chemistry Analyzer

Description

Includes:

One Beckman Coulter AU5830 without ISE, Instrument and Peripherals, 210V

The fastest full-menu clinical chemistry analyzers for high- and ultra high-volume core laboratories. Clinical chemistry analyzers in the AU5800 series are the fastest in the industry, processing up to 2,000 tests per hour with a full menu of assays, including Therapeutic Drug Monitoring (TDM) and Drugs of Abuse (DAT). Increase lab productivity with continuous operation, powerful throughput, and scalable capacity of up to four modules.

Features & Benefits:

IDEAL FOR:

Hospital or reference laboratories (4.0M to 6.5M tests/year)

NUMBER OF ONBOARD REAGENTS:

PHOTOMETRIC THROUGHPUT:

Up to 6,000 tests/hour

THROUGHPUT WITH DUAL ISE:

Up to 7,800 tests/hour

NUMBER OF SIMULTANEOUS ASSAYS:

SAMPLE CAPACITY:

400 samples (2×20 rack set)

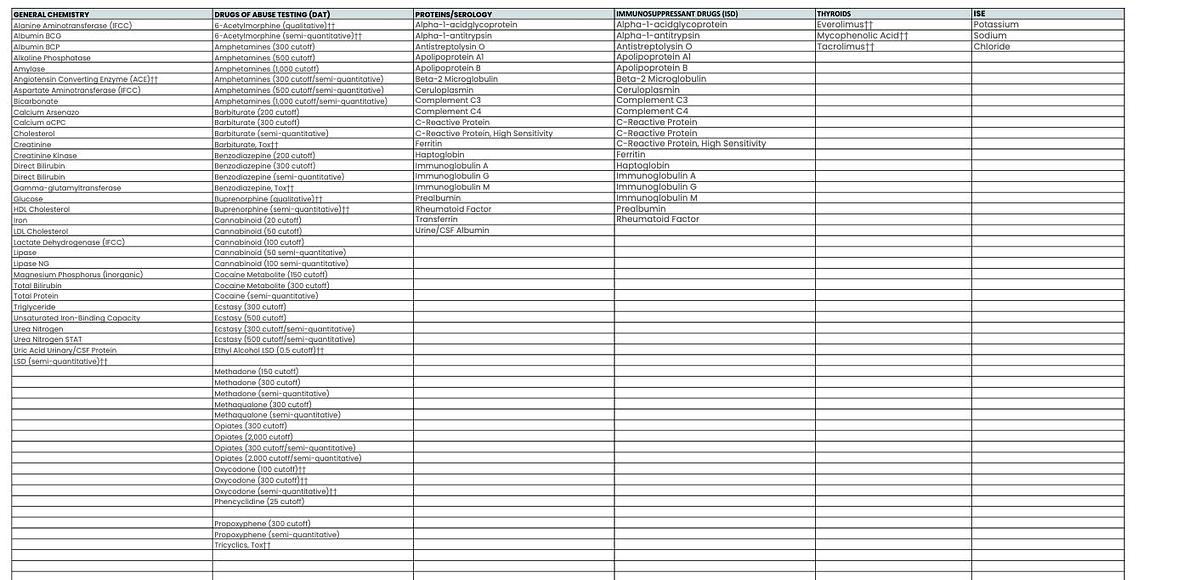

Test Menu

Specifications

Condition	New
Stock Number	243
Reaction Incubation Method	Dry bath system
Reaction Temperature	Dry bath: 37± 0.3 °C (98.6± 0.5 °F)
Reaction Solution Amount	• 80 to 287 µL
Reaction Time	Maximum 8 minutes 40 seconds
Reaction Cell	Glass square cuvette (optical path length: 5 mm)
Reaction Line	Rotary disk system: 204 cuvettes x 2 lines
Mixing System	Rotative mixing bar system
Photometer	Multi-wavelength diffraction grating spectrophotometer Photometric Modes: Monochromatic or bichromatic Wavelengths 340 to 800 nm (13 steps of 340, 380, 410, 450, 480, 520, 540, 570, 600, 660, 700, 750, and 800 nm)
Measurable Absorbance Range	0 to 3.0 Abs (converted in units of 10 mm of optical path length)
Photometric points	28
Photodetector	Silicon photodiode array
Light Source	Halogen lamp 12 V/100 W
Photometric resolution	0.0001 Abs
