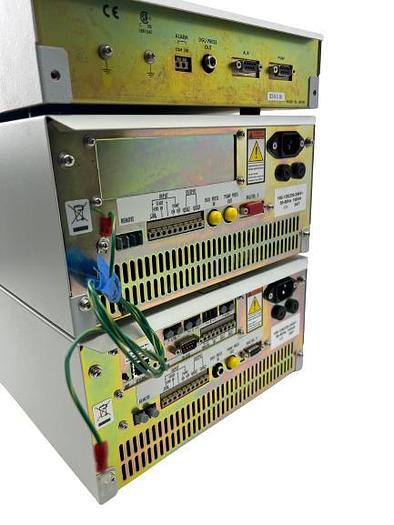

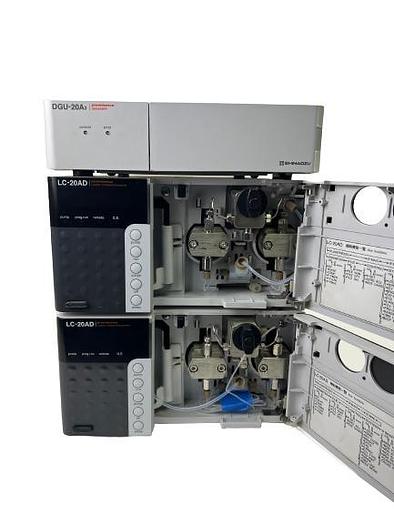

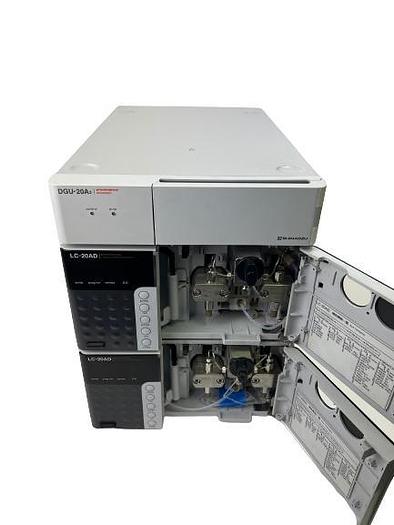

Shimadzu Prominence Modular HPLC
Shimadzu Prominence Modular HPLC
$11,997
or
Call 951.296.1266
Description
Shimadzu Prominence Modular HPLC System
Includes:
- One DGU-20A3 Prominence Degasser
- Two LC-20AD Prominence Liquid Chromatographs
Features & Benefits:
The Shimadzu Prominence Modular HPLC is a network-ready system designed to meet the needs of today’s advanced analytical laboratories. It features the world’s first web control, fastest sample injection, and highest detection sensitivity, setting a new standard in high-performance liquid chromatography.
With injection times as fast as 10 seconds per 10 µL, Prominence delivers exceptional speed and precision. The system also offers Self Diagnosis (Expert Function), Validation, Web-Based System Control, and Full Automation for reliable, continuous operation.
Specifications:
- Degasser: Shimadzu DGU-20A3 Prominence Degasser
- Pump: Shimadzu LC-20AD Prominence HPLC Pump
Specifications
| Manufacturer | Shimadzu |
| Condition | New |
| Stock Number | 78 |
| Number of Flow Lines | 3 |
| Degassing Performance | UV absorption difference with and without degasser is over 300 mAU (using UV absorption detector, wavelength 210 nm, sensitivity 0.5 AU, flowing Methanol saturated with dissolved oxygen (HPLC grade) at 25°C with 1 ml/min) |
| Operating Flow Rate | 20 mL/min per flow line (using deionized water –applicable range varies depending on the solvent being delivered). |
| Pressure Resistance | 98 kPa (1 kgf/cm2) or less Only when suctioning with the delivery unit. Pressurized delivery to the degasser is prohibited.) |
| Internal Capacity | 380 µL per flow line |
| Materials Contacting Solvents | Special synthetic polymers designed for all solvents (degassing membrane), PEEK (connector joints) |
| External Output | When system self-diagnostics detects an abnormality, a signal is output to the external terminal (ALARM) |
| Self-cleaning | Includes mechanism that extends vacuum pump life by drawing in air when the vacuum pump is running |
| Tubing | 3 mm O.D. x 1.5 mm I.D. PTFE tubing |
| Dimensions | 25″ W x 16.55 x 2.85″ H (26 x 42 x 7.2 cm) |
| Weight | 11 lbs. (5 kg) |
| Operating Conditions | 4 – 35°C, 20 – 85% humidity |
| Power supply | +24 V (powered via connection by remote cable to delivery unit) |
| Solvent delivery method | Parallel-type |
| Plunger capacity | 10µL |
| Maximum discharge pressure | 40MPa |
| Flow-rate setting range | 0.0001 to 10.0000 mL/min. |
| Pulsation | 0.1 MPa (for water at 1.0 mL/min. and 7MPa) |
| Constant-pressure solvent delivery | Supported |
| Operating temperature range | 4C to 35C |
| Dimensions, weight | 260 (W) x 140 (H) x 420 (D) mm, 10 kg |
| Power requirements | 100 VAC, 150 VA, 50/60 Hz |
