Shimadzu Prominence Modular HPLC
Shimadzu Prominence Modular HPLC
$23,497
or
Call 951.296.1266
Description

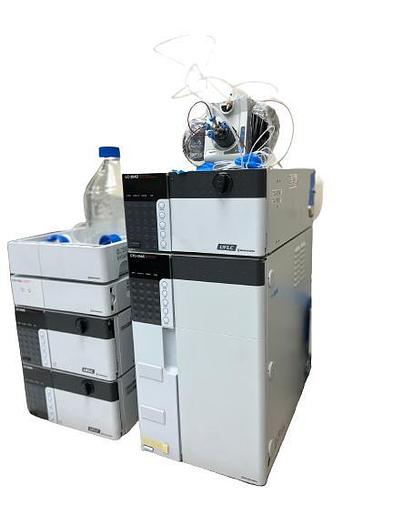

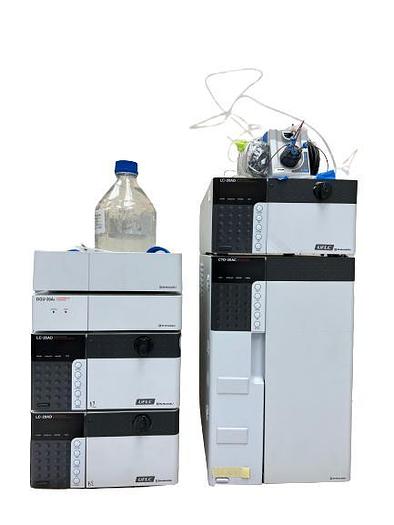

Shimadzu Prominence Modular HPLC System
Includes:
- One DGU-20A3 Prominence Degasser
- One CTO-20AC Prominence Column Oven
- Three LC-20AD Prominence Liquid Chromatographs
- System reservoir tray
- Pump
Features & Benefits:
The Shimadzu Prominence Modular HPLC is a network-ready, high-performance liquid chromatography system designed to meet the demands of today’s most advanced analytical laboratories.
Prominence features the world’s first web control system, fastest sample injection, and highest detection sensitivity, setting a new standard in HPLC technology. With injection times as fast as 10 seconds per 10 µL, it ensures exceptional speed and precision for high-throughput workflows.
Key features include:
- Self-Diagnosis (Expert Function) for system reliability and maintenance monitoring
- Full system validation and control through a web browser
- Fully automated operation for continuous, unattended performance
Specifications:
- Shimadzu DGU-20A3 Prominence Degasser
- Shimadzu CTO-20AC Prominence Column Oven
- Shimadzu LC-20AD Prominence HPLC Pump

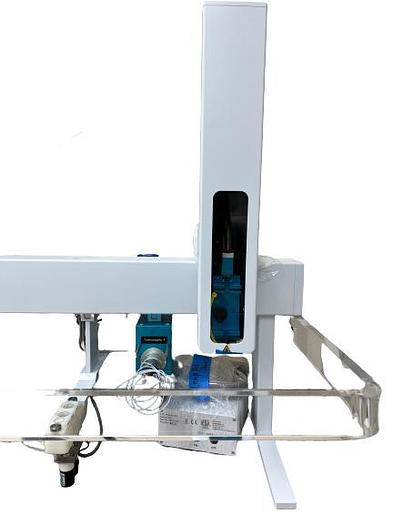

- PAL HTS-xt AutoSampler (High-Throughput Model, 80cm length)
- 4-valve operation for parallel or staggered sample analysis
- 2- or 3-valve operation for multidimensional chromatography
- Upgradable with PAL Dilutor Module for flexible analysis requirements
- Precise and accurate sample loading for high-throughput environments
- Extended X-axis length (120cm) for FIA/MS, parallel HPLC, or MUX systems
- Built for unattended 24-hour/day mass spectrometry analysis
- Various accessories and configuration options available
Specifications
| Manufacturer | Shimadzu |
| Condition | New |
| Stock Number | 77 |
| Number of Flow Lines | 3 |
| Degassing Performance | UV absorption difference with and without degasser is over 300 mAU (using UV absorption detector, wavelength 210 nm, sensitivity 0.5 AU, flowing Methanol saturated with dissolved oxygen (HPLC grade) at 25°C with 1 ml/min) |
| Operating Flow Rate | 20 mL/min per flow line (using deionized water –applicable range varies depending on the solvent being delivered). |
| Pressure Resistance | 98 kPa (1 kgf/cm2) or less Only when suctioning with the delivery unit. Pressurized delivery to the degasser is prohibited.) |
| Internal Capacity | 380 µL per flow line |
| Materials Contacting Solvents | Special synthetic polymers designed for all solvents (degassing membrane), PEEK (connector joints) |
| External Output | When system self-diagnostics detects an abnormality, a signal is output to the external terminal (ALARM) |
| Self-cleaning | Includes mechanism that extends vacuum pump life by drawing in air when the vacuum pump is running |
| Tubing | 3 mm O.D. x 1.5 mm I.D. PTFE tubing |
| Dimensions | 25″ W x 16.55 x 2.85″ H (26 x 42 x 7.2 cm) |
| Weight | 11 lbs. (5 kg) |
| Operating Conditions | 4 – 35°C, 20 – 85% humidity |
| Power supply | +24 V (powered via connection by remote cable to delivery unit) |
| Cooling method | Electronic cooling |
| Temperature-setting range | 4°C to 85°C |
| Storable devices | 2 manual injectors, gradient mixer, 2 high-pressure flow-line selection valves, etc |
| Temperature-control precision | 1°C max. |
| Temperature-control range | 10°C below room temperature to 85°C |
| Storage capacity | 10 columns, max 25 cm length |
| Time program | Linear temperature program supported |
| Safety measures | Solvent sensor, temperature fuse, temperature upper limit |
| Operating temperature range | 4C to 35C |
| Solvent delivery method | Parallel-type |
| Plunger capacity | 10µL |
| Maximum discharge pressure | 40MPa |
| Flow-rate setting range | 0.0001 to 10.0000 mL/min. |
| Pulsation | 0.1 MPa (for water at 1.0 mL/min. and 7MPa) |
| Constant-pressure solvent delivery | Supported |
| Dimensions, weight | 260 (W) x 140 (H) x 420 (D) mm, 10 kg |
| Power requirements | 100 VAC, 150 VA, 50/60 Hz |
