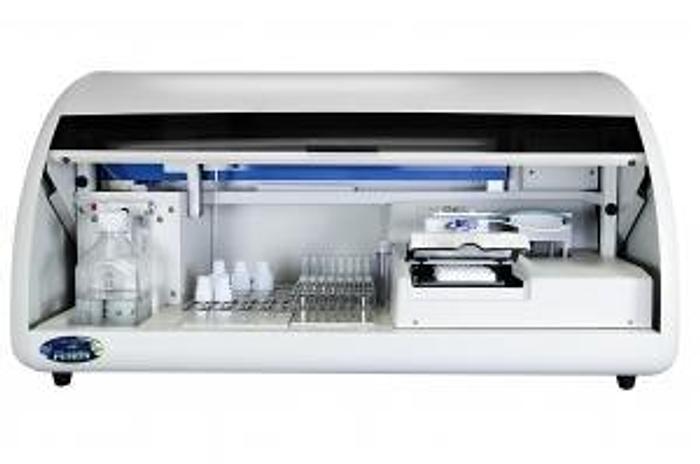

Awareness Technology ChemWell Fusion Chemistry Analyzer

Awareness Technology ChemWell Fusion Chemistry Analyzer

Contact us for price

or
Call 951.296.1266

Description

ChemWell FUSION is an affordable automated open system with a Dual-Function reader that automatically switches from reading absorbance to chemiluminescence. ChemWell FUSION is PC-controlled and includes a comprehensive software package. You can program a wide range of glow-luminescent assays and standard colorimetric ELISA tests including hormones, infectious diseases, tumor markers, autoimmune and more.

Smart software optimizes throughput while starting tests at intervals to avoid timing conflicts. The software manages each assay separately so that multiple assays can be processed on the same plate even if they have different timings, reagents, and reading modes.

Patented optical system uses PMT (photomultiplier) to detect light signals from Luminescence and from 4 standard wavelengths for Absorbance. The patented scan head prevents crosstalk.

Features

  • Makes dilutions and pre-dilutions
  • Pipettes from 2uL to 250uL
  • Handles multiple reagents
  • Smart software optimizes throughput while starting tests at intervals to avoid t
  • Ease of operation through intuitivedesign
  • Integrated precision pipetting & microwell platewashing
  • The ability to run both ELISA & CLIA on the same microwell stripplate
  • Intelligent software that prevents timingconflicts
  • Complete patient database with search and history trackingsystem
  • Flexible reporting options including export to excel orLIS
  • Customizable reagent and sample placement offeringflexibility
  • An open system, with the ability to program any assay Lockout security protectionoptions
  • Simplifiedmaintenance
  • iming conflicts

    • Specifications

    ManufacturerAwareness Technology
    ConditionNew
    Throughput200 Tests / hour
    • SystemOpen system
    • DimensionsWidth: 0,85m / Height: 0,40m / Depth: 0,51m
    • Weight36 Kg
    • Min. and Max. Volume2 uL- 1,95mL.
    • Sample Position96
    • ApplicationClinical and veterinary testing – Environmental testing – Analysis of food and water – Life science research
    • Performed TestsReproductive function Thyroid function – Tumor markers – Infections – Anemia – Cytokines – Cardiovascular markers – Diabetes – Drug monitoring – Drugs – Analytes – Allergology – Vitamins – Veterinary.
    • SpecificationsWorks with 96-well microplates, 12 standard 8-well microtiter, 8 standard 12-well microplates, white for CLIA and transparent for EIA; Programmable sampler rinser prevents reagents from contamination; 4 channel photometry module; Built-in thermostat; 8 channel washing device; 4 Filter wheel (405 – 450 – 592 – 630 nm); Quality control software (QC); Open System for Working with Reagents and Test-Systems of any Manufacturers.
    • Accessories and disposablesSample rack (AWR-TK-994113 )/Reagent rack (AWR-TK-994119)/Reagent Rack for Spinreact reagents (AWR-TK-994204)/Reagent Reagent (AWR-TK-029050)/Sample Vials per Caps (AWR-TK-15733335)/Reagent Bottle (AWR-TK-187110)/Reagent Bottle (AWR-TK-157409)/Strip Tray (AWR-TK-157201)/Uncoated Microwell Strip157201157202/Start-up kit of reagents (WM) /personal computer (WM)
    • Reagents Positions27
