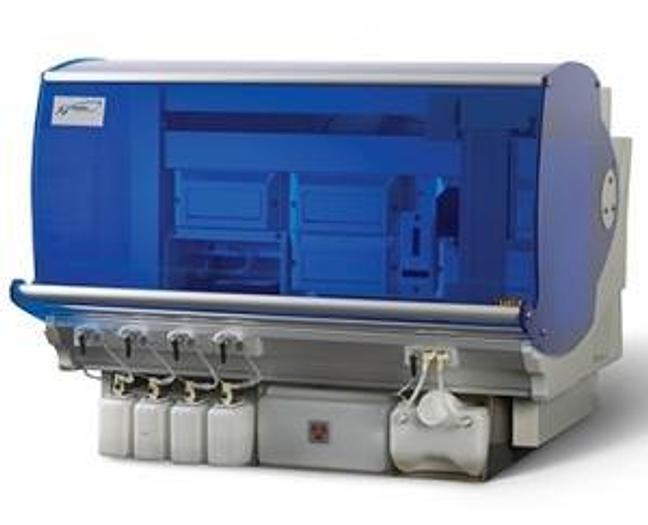

Dynex DSX 4-Plate Automated Immunoassay

DSX Fully Automated Immunoassay Analyzer

The DSX is a fully automated 4-plate processing system capable of performing multiple assays per plate.

Easy to Use

• Graphical user interface with intuitive Windows™-based operation
• On-screen help available at each step of setting up or programming assays
• Worklist Load Wizard guides users through DSX Worklist setup, indicating graphically where to place reagents, samples, and plates
• Modular design: incubators, reader, washer, and barcode reader are easy to replace

Efficient

• 4 buffers
• Supports up to 2 incubator modules for 37–50°C incubations
• 8-second cycle time per sample
• Strip synchronization to counteract drift
• Open system: includes Diamedix programs; other programs can run in parallel
• Supports infectious disease testing requiring tips

Dependable

• Alarms for “Wash Buffer Low” and “Waste Full”
• Liquid level check alarms
• Tip, foam, bubble, and clot detection

Economical

• Uses inexpensive white polyethylene tips, not carbon-filled black tips
• Only 2 tips per sample; tip inventory tracked to eliminate waste
• Tracks dilution well usage; uses 8-well dilution strips to minimize wasted wells
