Mindray BS 480 Chemistry Analyzer

Mindray BS 480 Chemistry Analyzer

Contact us for price

Description

Mindray BS 480 Chemistry Analyzer. A floor-standing, discrete and random access clinical chemistry analyzer offering a constant 400 tests per hour. The BS-480 chemistry analyzer is a versatile mid to high volume chemistry platform with conventional software design, easy to navigate interface; creating a positive user experience in today’s fast-paced laboratory environment. The wide selection test menu includes general chemistries and electrolytes serving the need of most clinical laboratories and hospitals.

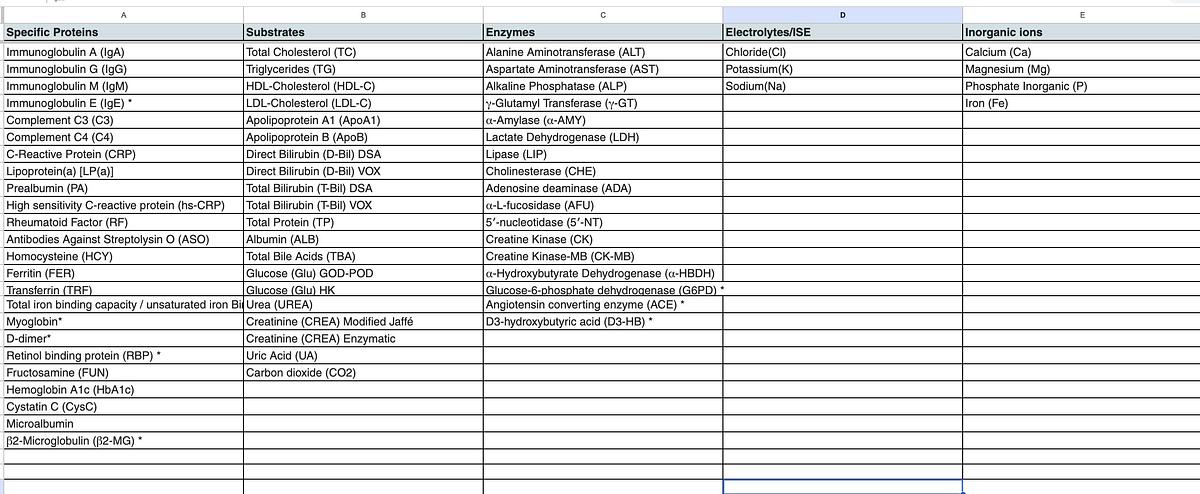

Test Menu

Specific Proteins Substrates Enzymes Electrolytes/ISE Inorganic ions
Immunoglobulin A (IgA) Total Cholesterol (TC) Alanine Aminotransferase (ALT) Chloride(Cl) Calcium (Ca)
Immunoglobulin G (IgG) Triglycerides (TG) Aspartate Aminotransferase (AST) Potassium(K) Magnesium (Mg)
Immunoglobulin M (IgM) HDL-Cholesterol (HDL-C) Alkaline Phosphatase (ALP) Sodium(Na) Phosphate Inorganic (P)
Immunoglobulin E (IgE) * LDL-Cholesterol (LDL-C) γ-Glutamyl Transferase (γ-GT) Iron (Fe)
Complement C3 (C3) Apolipoprotein A1 (ApoA1) α-Amylase (α-AMY)
Complement C4 (C4) Apolipoprotein B (ApoB) Lactate Dehydrogenase (LDH)
C-Reactive Protein (CRP) Direct Bilirubin (D-Bil) DSA Lipase (LIP)
Lipoportein(a) [LP(a)] Direct Bilirubin (D-Bil) VOX Cholinesterase (CHE)
Prealbumin (PA) Total Bilirubin (T-Bil) DSA Adenosine deaminase (ADA)
High sensitivity C-reactive protein (hs-CRP) Total Bilirubin (T-Bil) VOX α-L-fucosidase (AFU)
Rheumatoid Factor (RF) Total Protein (TP) 5′-nucleotidase (5′-NT)
Antibodies Against Streptolysin O (ASO) Albumin (ALB) Creatine Kinase (CK)
Homocysteine (HCY) Total Bile Acids (TBA) Creatine Kinase-MB (CK-MB)
Ferritin (FER) Glucose (Glu) GOD-POD α-Hydroxybutyrate Dehydrogenase (α-HBDH)
Transferrin (TRF) Glucose (Glu) HK Glucose-6-phosphate dehydrogenase (G6PD) *
Total iron binding capacity / Urea (UREA) Angiotensin converting enzyme (ACE) *
unsaturated iron Binding capacity (TIBC/UIBC) Creatinine (CREA) Modified Jaffé D3-hydroxybutyric acid (D3-HB) *
Myoglobin* Creatinine (CREA) Enzymatic
D-dimer* Uric Acid (UA)
Retinol binding protein (RBP) * Carbon dioxide (CO2)
Fructosamine (FUN)
Hemoglobin A1c (HbA1c)
Cystatin C (CysC)
Microalbumin
β2-Microglobulin (β2-MG) *
BS-480 Chemistry Analyzer Technical Specifications System function Fully automated, discrete, random access, STAT, urine and homogeneous immunoassays; STAT sample priority Single/Dual/Triple/Quadruple reagent chemistries, Monochromatic/Bichromatic Sample Handling carry-over < 0.05% Automatic sample dilution, Pre-dilution and post-dilution Internal bar code reader Sample/ Reagent barcode reading including Codabar, ITF (Interleaved Two of Five), code128, code39, UPC/EAN, Code93; Bi-directional LIS Interface transmission ISE Module (optional) Optional selection of K+, Na+, Cl Reagent Handling inventory check Reaction System 546nm, 570nm, 605nm, 660nm, 700nm, 740nm, 800nm Control and Calibration -point), Logit-Log 4P, Logit-Log 5P, Spline, exponential, Polynomial, Parabola Cumulative sum check, twin plot Operation Unit Working Conditions or 110~130V, 60Hz, 1500VA

Specifications

ManufacturerMindray
ConditionNew
ThroughputUp to 240 tests per hour
Measuring principlesAbsorbance Photometry, Turbidimetry
MethodologyEnd-point, Fixed-time, Kinetic, ISE (Optional)
ProgrammingUser defined profiles and calculation
Sample tray90 positions for primary or secondary tubes and sample cups
Sample volume1.5~45 µl, step by 0.1µl
Sample probeLiquid level detection, clot detection and collision protection
Probe cleaningInterior and exterior automatic probe washing
Dilution with ratio up to 1150
Dilution vesselPermanent Cuvette
Reagent tray80 positions in refrigerated compartment (2~10°C)
Reagent volumeR1: 45- 350 ul, R2 ~ R4 :10 – 350ul
Reagent probeLiquid level detection, collision protection and
Reaction rotorRotating tray, 90 cuvettes with automatic washing
CuvetteOptical length 5mm
Reaction volume120~360µl
Operating temperature37°C
Temperature fluctuation±0.1°C
Mixing system2 independent mixers
Light SourceHalogen-tungsten lamp
PhotometerReversed optics, grating photometry
Wavelength340nm, 380nm, 412nm, 450nm, 505nm,
Absorbance range0~3.3Abs (10mm conversion)
Resolution0.0001Abs
Calibration modeLinear (one-point, two-point and multi
Control rulesWestgard multi-rule, Levy-Jennings,
Operation systemWindows 8
InterfaceRS-232, Network Port, USB/ parallel port
Power Supply200~240V, 50/60Hz, 1500VA
Temperature15~30°C
Humidity35~85%
Water consumption≤20L/hour, De-ionized water
Dimension46in x 28in x 45in (W x D x H)
Weight661lb
