Randox RX Daytona + Chemistry/Toxicology Analyzer

Randox RX Daytona + Chemistry/Toxicology Analyzer

Contact us for price

Description

Randox RX Daytona +

Includes:

One Randox RX Daytona.

The RX daytona+ is a fully automated, random access platform delivering a high level of precision, accuracy and reliability with the ability to perform emergency STAT sampling. The most versatile analyzer in its class, the RX daytona+ is capable of performing 270 photometric tests per hour and up to 450 with ISE testing.

Features/Benefits

Features:



The RX daytona+ is a fully automated, random access platform delivering a high level of precision, accuracy and reliability with the ability to perform emergency STAT sampling. The most versatile analyzer in its class, the RX daytona+ is capable of performing 270 photometric tests per hour and up to 450 with ISE testing.



– World leading extensive test menu covering routine chemistries, specific proteins, lipids, antioxidants, cardiac and diabetes testing, offering cost savings through consolidation of routine and novel tests on a single platform



– Integrated barcode readers for reagent and sample identification. Increased functionality with 12 wavelengths generated via diffraction grating (340-800nm) ensuring a multitude of chemistries are possible on one system



– Separate sample and reagent pipettes minimize carryover. Dedicated micropipettes are equipped with liquid level sensors and crash detection. Dual five speed stirrers provide optimised mixing for each assay



– Economic platform with low water consumption of only 5 liters per hour saving on consumable costs. The RX daytona+ also requires minimal maintenance



– Easy to use icon based and advanced software with an on-board inventory management system providing unrivalled up-time and  performance with sensitive clot detection sensors and on-board cuvette checking function



– Advanced software with unrivalled QC capabilities developed to improve laboratory efficiencies with the ability to generate Levey-Jennings charts, calibration curves and the ability to provide QC statistics and results. There are also 7 different calibration options available

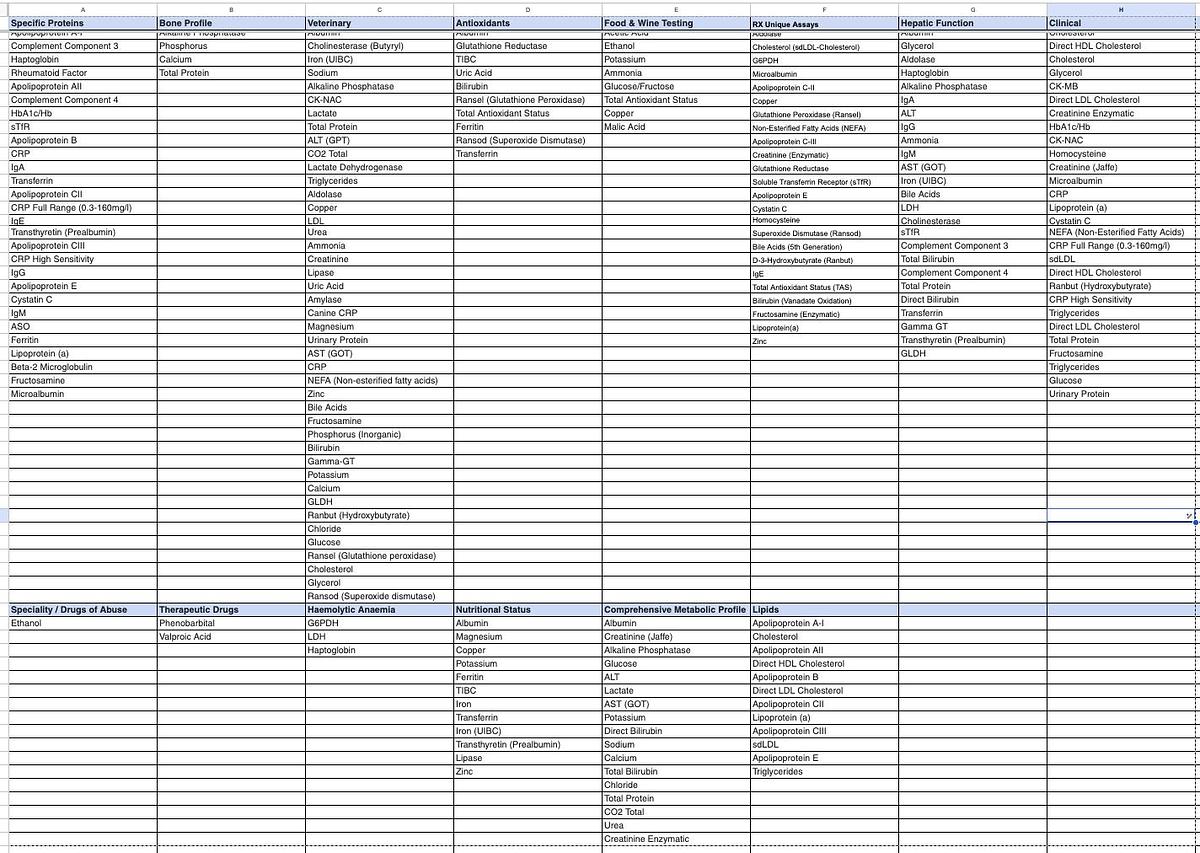

Test Menu

Clinical
Cardiac     Diabetes
Cholesterol Direct HDL Cholesterol   Cholesterol Glycerol
CK-MB Direct LDL Cholesterol   Creatinine Enzymatic HbA1c/Hb
CK-NAC Homocysteine   Creatinine (Jaffe) Microalbumin
CRP Lipoprotein (a)   Cystatin C NEFA (Non-Esterified Fatty Acids)
CRP Full Range(0.3-160mg/l) sdLDL   Direct HDL Cholesterol Ranbut (Hydroxybutyrate)
CRP High Sensitivity Triglycerides   Direct LDL Cholesterol Total Protein
      Fructosamine Triglycerides
      Glucose Urinary Protein
Hepatic Function
Albumin Glycerol   Renal Function
Aldolase Haptoglobin   Albumin IgG
Alkaline Phosphatase IgA   Ammonia LDH
ALT IgG   Beta-2 Microglobulin Magnesium
Ammonia IgM   Calcium Microalbumin
AST (GOT) Iron (UIBC)   Chloride Potassium
Bile Acids LDH   Creatinine Enzymatic Sodium
Cholinesterase sTfR   Creatinine (Jaffe) Phosphorus (Inorganic)
Complement Component 3 Total Bilirubin   Cystatin C Urinary Protein
Complement Component 4 Total Protein   Glucose Urea
Direct Bilirubin Transferrin   HbA1c/Hb Uric Acid
Gamma GT Transthyretin (Prealbumin)
GLDH     Electrolytes
      Calcium Magnesium
Lipids     Chloride (Nondirect) Potassium (Nondirect)
Apolipoprotein A-I Cholesterol   CO2 Total Sodium (Nondirect)
Apolipoprotein AII Direct HDL Cholesterol
Apolipoprotein B Direct LDL Cholesterol   Basic Metabolic Profile
Apolipoprotein CII Lipoprotein (a)   Calcium Glucose
Apolipoprotein CIII sdLDL   CO2 Total Potassium
Apolipoprotein E Triglycerides   Chloride Sodium
      Creatinine Enzymatic Urea
Comprehensive Metabolic Profile     Creatinine (Jaffe)
Albumin Creatinine (Jaffe)
Alkaline Phosphatase Glucose   Autoimmune
ALT Lactate   Complement Component 3 IgA
AST (GOT) Potassium   Complement Component 4 IgE
Direct Bilirubin Sodium   CRP IgG
Calcium Total Bilirubin   CRP Full Range (0.3-160mg/l) IgM
Chloride Total Protein   CRP High Sensitivity Rheumatoid Factor
CO2 Total Urea
Creatinine Enzymatic     Pancreatic Function
      Amylase Lipase
Nutritional Status     Glucose Pancreatic Amylase
Albumin Magnesium   LDH
Copper Potassium
Ferritin TIBC   Neonatal Screening
Iron Transferrin   CRP IgE
Iron (UIBC) Transthyretin (Prealbumin)   CRP Full Range (0.3-160mg/l) Transthyretin (Prealbumin)
Lipase Zinc   CRP High Sensitivity

Haemolytic Anaemia     Inflammation & Infection
G6PDH LDH   ASO Lactate
Haptoglobin     CRP Rheumatoid Factor

Bone Profile     Neurological Disorders (CSF)
Alkaline Phosphatase Phosphorus   IgA IgM
Calcium Total Protein   IgG
Veterinary
Albumin Cholinesterase (Butyryl) Iron (UIBC) Sodium
Alkaline Phosphatase CK-NAC Lactate Total Protein
ALT (GPT) CO2 Total Lactate Dehydrogenase Triglycerides
Aldolase Copper LDL Urea
Ammonia Creatinine Lipase Uric Acid
Amylase Canine CRP Magnesium Urinary Protein
AST (GOT) CRP NEFA (Non-esterified fatty acids) Zinc
Bile Acids Fructosamine Phosphorus (Inorganic)
Bilirubin Gamma – GT Potassium
Calcium GLDH Ranbut (Hydroxybutyrate)
Chloride Glucose Ransel (Glutathione peroxidase)
Cholesterol Glycerol Ransod (Superoxide dismutase)



Therapeutic Drugs   Speciality / Drugs of Abuse
Phenobarbital   Ethanol
Valproic Acid




Specific Proteins
Apolipoprotein A-I Complement Component 3 Haptoglobin Rheumatoid Factor
Apolipoprotein AII Complement Component 4 HbA1c/Hb sTfR
Apolipoprotein B CRP IgA Transferrin
Apolipoprotein CII CRP Full Range (0.3-160mg/l) IgE Transthyretin (Prealbumin)
Apolipoprotein CIII CRP High Sensitivity IgG
Apolipoprotein E Cystatin C IgM
ASO Ferritin Lipoprotein (a)
Beta-2 Microglobulin Fructosamine Microalbumin



Antioxidants
Albumin Glutathione Reductase TIBC Uric Acid
Bilirubin Ransel (Glutathione Peroxidase) Total Antioxidant Status
Ferritin Ransod (Superoxide Dismutase) Transferrin
Food & Wine Testing
Acetic Acid Ethanol Potassium
Ammonia Glucose/Fructose Total Antioxidant Status
Copper Malic acid



Aldolase Cholesterol (sdldl-cholesterol) G6PDH Microalbumin
Apolipoprotein C – II Copper Glutathione Peroxidase (Ransel) Non-Esterified Fatty Acids (NEFA)
Apolipoprotein C – III Creatinine (Enzymatic) Glutathione Reductase Soluble Transferrin Receptor (sTfR)
Apolipoprotein E Cystatin C Homocysteine Superoxide Dismutase (Ransod)
Bile Acids (5th Generation) D-3-Hydroxybutyrate (Ranbut) IgE Total Antioxidant Status (TAS)
Bilirubin (Vanadate Oxidation) Fructosamine (Enzymatic) Lipoprotein(a) Zinc



Toxicology
Therapeutic Drugs   Speciality / Drugs of Abuse
Phenobarbital   Ethanol
Valproic Acid



Specific Proteins
Apolipoprotein A-I Complement Component 3 Haptoglobin Rheumatoid Factor
Apolipoprotein AII Complement Component 4 HbA1c/Hb sTfR
Apolipoprotein B CRP IgA Transferrin
Apolipoprotein CII CRP Full Range (0.3-160mg/l) IgE Transthyretin (Prealbumin)
Apolipoprotein CIII CRP High Sensitivity IgG
Apolipoprotein E Cystatin C IgM
ASO Ferritin Lipoprotein (a)
Beta-2 Microglobulin Fructosamine Microalbumin
Research
Antioxidants
Albumin Glutathione Reductase TIBC Uric Acid
Bilirubin Ransel (Glutathione Peroxidase) Total Antioxidant Status
Ferritin Ransod (Superoxide Dismutase) Transferrin
Food & Wine Testing
Acetic Acid Ethanol Potassium
Ammonia Glucose/Fructose Total Antioxidant Status
Copper Malic acid



Aldolase Cholesterol (sdldl-cholesterol) G6PDH Microalbumin
Apolipoprotein C – II Copper Glutathione Peroxidase (Ransel) Non-Esterified Fatty Acids (NEFA)
Apolipoprotein C – III Creatinine (Enzymatic) Glutathione Reductase Soluble Transferrin Receptor (sTfR)
Apolipoprotein E Cystatin C Homocysteine Superoxide Dismutase (Ransod)
Bile Acids (5th Generation) D-3-Hydroxybutyrate (Ranbut) IgE Total Antioxidant Status (TAS)
Bilirubin (Vanadate Oxidation) Fructosamine (Enzymatic) Lipoprotein(a) Zinc



RX Unique Assays

Aldolase Cholesterol (sdldl-cholesterol) G6PDH Microalbumin
Apolipoprotein C – II Copper Glutathione Peroxidase (Ransel) Non-Esterified Fatty Acids (NEFA)
Apolipoprotein C – III Creatinine (Enzymatic) Glutathione Reductase Soluble Transferrin Receptor (sTfR)
Apolipoprotein E Cystatin C Homocysteine Superoxide Dismutase (Ransod)
Bile Acids (5th Generation) D-3-Hydroxybutyrate (Ranbut) IgE Total Antioxidant Status (TAS)
Bilirubin (Vanadate Oxidation) Fructosamine (Enzymatic) Lipoprotein(a) Zinc



Specifications: PHYSICAL DIMENSIONS PERFORMANCE CHARACTERISTICS REAGENT & SAMPLE SYSTEM REACTION SYSTEM CALIBRATION & QC POWER & CONNECTIVITY OPERATING SYSTEM

Specifications

ConditionNew
Height625mm
Depth670mm
Width870mm
Weight120kg
Throughput270 tests per hour, 450 tests per hour with ISE
Analyzer typeCompact fully automated random access bench top clinical analyzer
Assay typeEndpoint, kinetic and ISE
MaintenanceDaily maintenance – less than 5 minutes. Simple twice yearly preventative maintenance service
Data managementStorage of up to 30,000 patient reports, search facility
Test channels50 photometric channels, 3 direct ISE
Sleep modeUser defined sleep mode capabilities with automatic wash and instrument prep
Reagent pipetteDedicated reagent micropipette with liquid level sensor and crash detection
Reagent capacityRemovable turntable with 50 cooled positions for 20ml and 70ml bottles
Reagent cooling8 to 15°C
Reagent identificationBarcode reagent identification
Reagent inventoryCalculation of remaining reagent volume and tests available Alert for shortage or expired reagents
Sample additionSampling interruption for addition of samples
Sample capacity50 positions are contained within the universal carousel, including 10 bespoke positions for calibrators and controls
Sample dead volume150µl in standard or primary tubes, 100µl in paediatric cups
Sample dilutionPre-dilution and automatic re-assay with diluted, reduced or increased sample volume
Sample identificationBarcode sample identification
Sample pipetteDedicated sample micropipette with liquid level sensor, crash protection and clot detection
Sample tube sizeMultiple primary tube sizes (diameter 12 to 16mm, height 55 to 100mm), Paediatric cups
Sample typeSerum, Plasma, Urine, CSF & Whole Blood Sample volume 1.5 to 35µl (0.1µl increments)
STAT samplingSTAT samples can be added immediately via emergency loading port 11
Reaction time10 minutes (R1: 5 min. + R2: 5 min.)
Reaction volume100 to 350µl
Stirring speed5 speed levels available
Stirring systemDual 5 speed stick type rotating stirrers
Temperature controlDry bath
Water consumptionMaximum 5L per hour
Water requirementsNCCLS type 1 or 2 purified water supply
Wash unit12 stage washing process
Cuvettes72 semi-permanent cuvettes
Incubator temperature37°C ± 0.1°C
Cycle time13 seconds
Detector methodDirect absorbance in cuvette (bi-chromatic and monochromatic)
Detection principal12 wavelengths generated via diffraction grating: 340, 380, 415, 450, 510, 546, 570, 600, 660, 700, 750 and 800nm
ISE unitOptional ISE unit available
Light sourceHalogen tungsten lamp air cooled by fan
Quality controlInteractive Levey-Jennings charts, daily, monthly and batch QC with data archiving
Calibration principalFactor, Linear, Point to point, Log-logit, Exponential, Spline and Spline 2
Power requirementAC100V to 120V, 6.5A (Max.) AC200 to 230V, 3.3A (Max.) 50/60Hz
Power consumption650VA
Permissible voltage variation± 10% (Max.)
LIMS connectivityBi-directional ASTM Standard (RS232 connection)
Operator interfaceWindows10® based software
