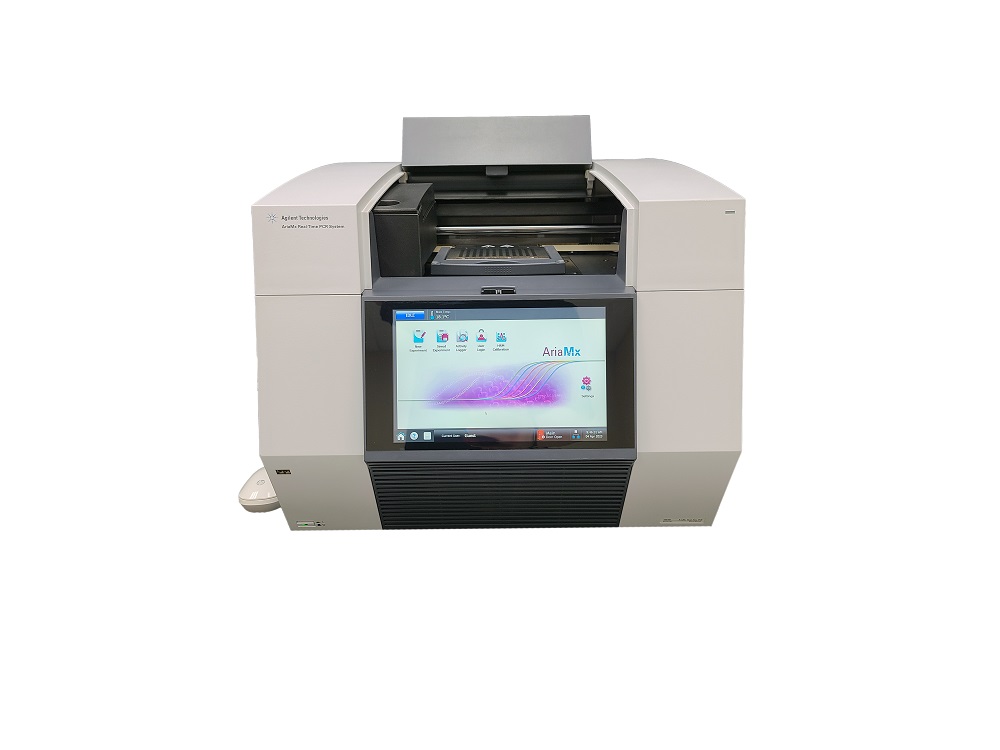

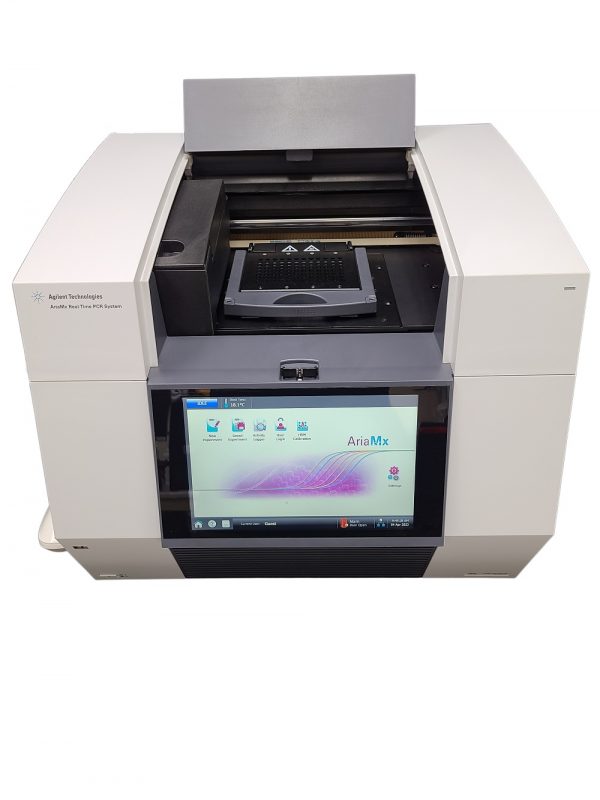

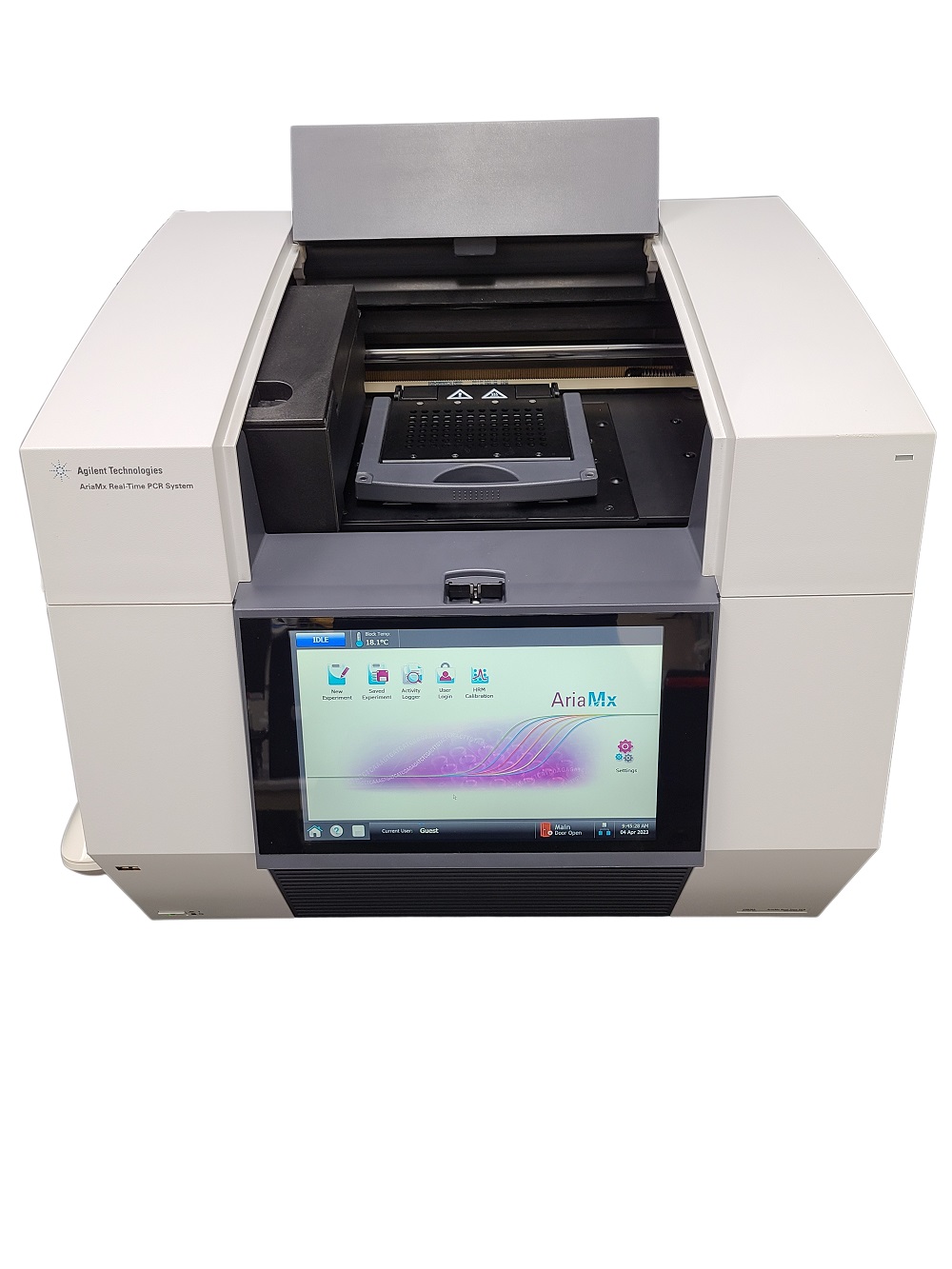

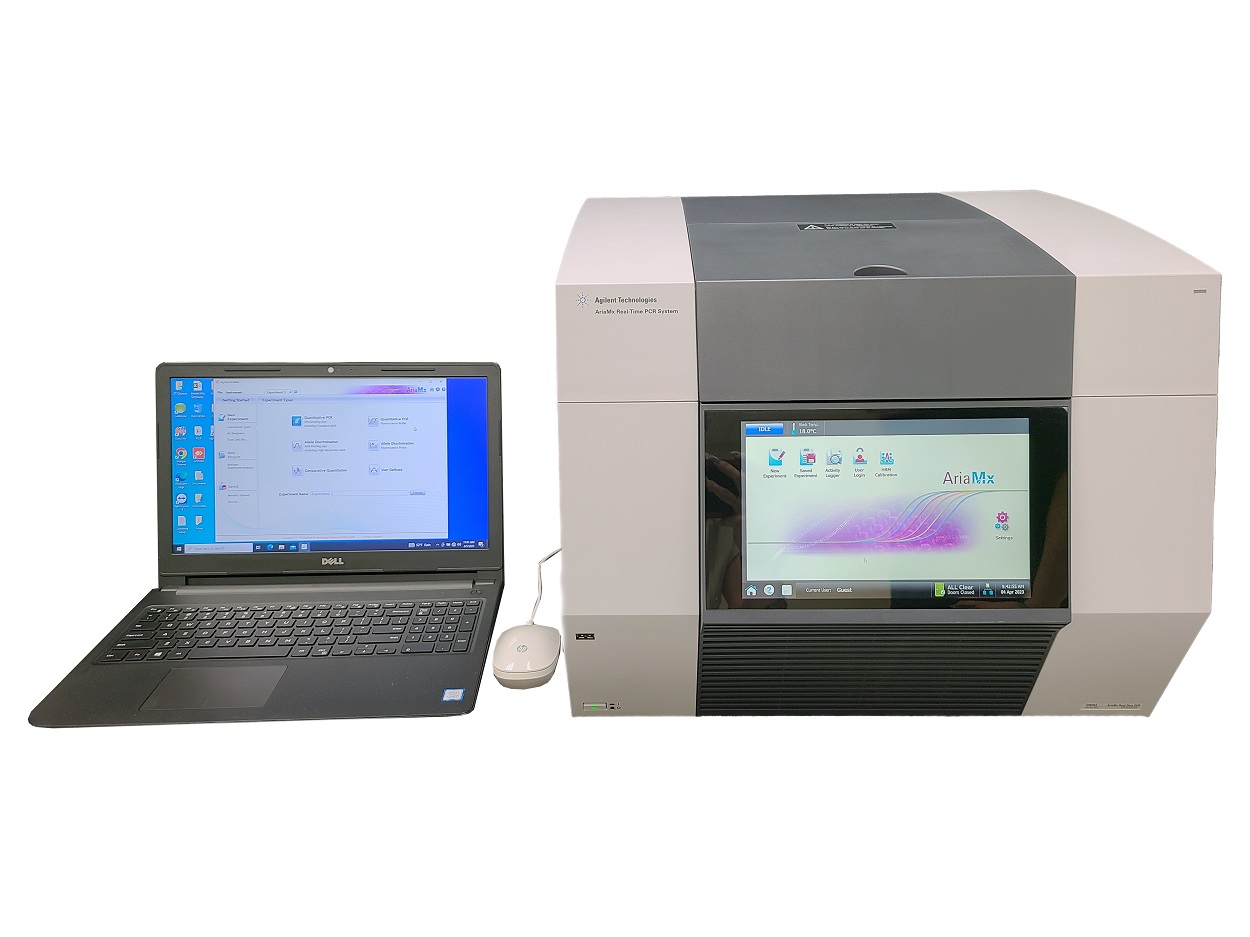

Agilent Technologies AriaMX Real-Time PCR System

Contact us with any questions.

Thank you!



-Agilent AriaMX RT PCR System





  • Usable with many fluorescence detection chemistries, including SYBR Green and EvaGreen dyes, and fluorogenic probe systems such as TaqMan
  • Combines a novel thermal cycler, an advanced optical system with LED excitation source, and comprehensive data analysis software
  • Ultrafast chemistry helps you to complete your study in a timely fashion
  • Proprietary rapid hot-start enzymes and fastest industry high-resolution melt reagents
  • Intuitive operation with a touch screen interface
  • Modular optics and open reagent platform for increased agility
  • Multiplex capability with six filters for five plexing and two to five channels
  • Validated for most applications and chemistries
  • Intuitive open-source software and robust data analysis with proprietary algorithms
  • Instrument validated on 100,000+ samples across 14 different assays



ARIA Software – Standard with Instrument · Yes
Accuracy · ±0.2 °C
Controller Touchscreen · Yes
Data Acquisition Time · <3 sec
Detection Sources · 8 filtered photodiodes
Dimensions (WxDxH) · 50.0 x 46.0 x 42.0 cm (19.7 x 18.1 x 16.5 inches)
Dynamic Range · 9
Excitation Source · 8 dye specific LEDs per optical module
Max Optical Modules · 6
Maximum Block Ramp Rate · 6 °C/Sec
Number of Peltiers · 6
Number of Wells · 96
Number of wells for multiplexing · Up to 5 targets per well
Optical Cartridge Types · SYBR/FAM



· CY5

· CY3

· ATTO425

PCR Uniformity · ±0.4 °C
Protocol Storage Count · 5GB
Reaction Volume · 10-30 µL
Remote Monitoring · Yes
Self-Installable Optical Cartridges · Yes
Software Included · Free software including LIMS connectivity feature 21 CFR part 11 enabled software
Software Upgrade Statements · Available online, no charge
Thermal System Temperature Range · 25.0-99.9 °C
