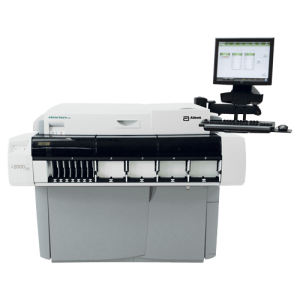

Abbott Architect i2000SR Immunoassay Analyzer

Contact us with any questions.

Thank you!

Request Quote



The ARCHITECT i2000SR immunoassay analyzer meets your laboratory’s high standards by delivering STAT results when you need them. The flexible protocols built into the ARCHITECT i2000SR enhance laboratory workflow and allow you to report results with confidence. The ARCHITECT i2000SR immunoassay analyzer offers a maximum throughput of up to 200 tests per hour. Featuring a load-up capacity of 135 samples with 35 priority and 100 routine areas, the ARCHITECT i2000SR has 25 refrigerated reagent positions.

Additional information



Maximum Throughput  Up to 200 tests/hour
Sample Types Serum, Plasma, Whole Blood, Urine
Sample Tubes Height: 72-102 mm

Diameter: 9.6-16.1 mm

Sample Cup Yes (50 µL dead volume)
Sample Capacity 135
Sample Barcode Types Code 39, Codabar, Interleaved 2 of 5, Code 128
Sample Result Storage 50,000
Sample Volume 10-150 μL, Average: 57 μL
Automatic Dilution Yes
Sample Probe Carryover ≤0.1 parts per million
Reagent Capacity 25 refrigerated positions
Reagent Type 100% liquid ready-to-use
Reagent Onboard Stability 14-30 days
Calibration Frequency Calibrate with new lot number, if controls are out of range or if specified otherwise within the package insert
Sample, Clot and Bubble Detection  Yes
Reagent Pressure Monitoring  Yes
Sample Interference Measurement No
System Control Center 1 SCC, with color touchscreen monitor, keyboard and mouse
Onboard Maintenance Records Yes
Online Error Code Help Yes
Host Interface Bidirectional, serial RS-232 interface, host query option available
Remote Diagnostics AbbottLink
(H x W x D)
48” x 61” x 49”

121.9 x 154.9 x 124.5 cm

Weight 1,081 lbs

490.3 kg

Electrical Requirements AC 180-264V, 47-63 Hz
Water Requirements Purified water to dilute buffer concentrate
Heat Output* 4280 BTU/hr, running mode
Sample Loading RSH

Test Menu

Cancer Cardiac Fertility/Pregnancy Infectious Disease
CA 125 CK-MB Estradiol Anti-HAV IgM
CA 15-3 Myoglobin FSH Anti-HBc
CA 19-9 XR Troponin-I hCG (Total B-hCG) Anti-HBc IgM
CEA Galectin-3IN DVLMT LH Anti-HBs
Free PSA High Sensitive Troponin-I Progesterone Anti-HCV
HE-4 Prolactin HBsAg
Total PSA SHBG HBsAg Confirmatory
Testosterone HIV Ag/Ab Combo
Metabolic Therapeutic Drug Monitoring Transplant Thyroid
Active-B12 (HoloTC) Carbamazepine Cyclosporine Anti-Tg
B12 Digoxin Sirolimus Anti-TPO
C-Peptide Gentamicin Tacrolimus Free T3
Cortisol Phenobarbital Free T4
Ferritin Phenytoin T-Uptake
Folate Theophylline Total T3
Hemoglobin A1c (Whole Blood) Valproic Acid Total T4
Homocysteine Vancomycin TSH
Intact PTH
Vitamin D
