Description

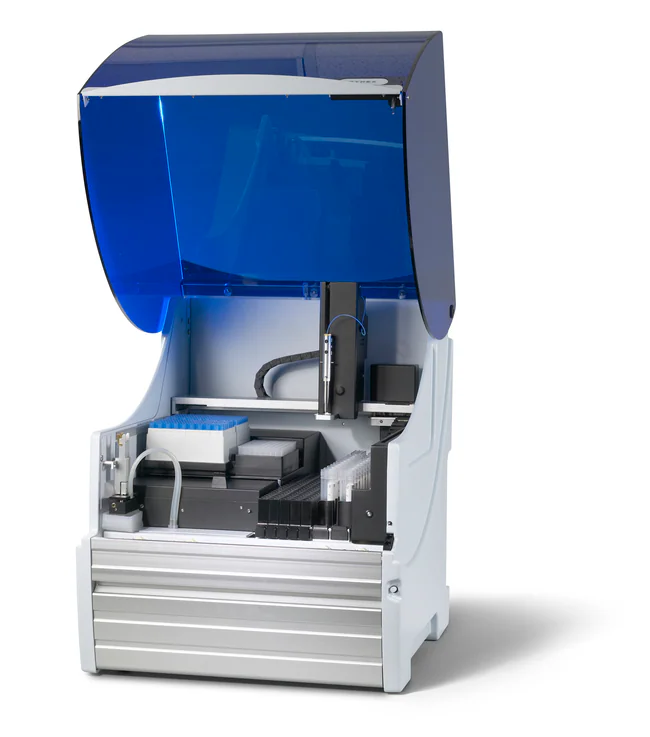

Dynex DS2 Automated ELISA Processing System
Run any assay from any vendor
- Fully automated open system
- Ability to bring in tests that are currently being sent out
- Automated sample distribution, incubation, reagent addition, washing and detection steps of assays as defined by the manufacturer. The lab can customize assay parameters, assay steps, OD read settings, result calculations, quality control checks and report formats with ease
Reliable workload scheduling
- For the past 2 years DYNEX DS2 has achieved 98.5 uptime when mean time between failure target is set at 250 days
- Schedule your preventive maintenance during slow period
- Electronic Signature Pipetting (ESP) is a sophisticated technique used by the DS2 for detection of gross pipetting errors often caused by the presence of particulate matter, clots, foam, or bubbles in the sample. Insufficient sample transfer can therefore be detected and reported to the operator during a run
- Prevent unscheduled down time
Saves Space
- The DS2 system footprint is less than four square feet of linear counter space to process up to two 96-well microplates and 100 specimens making it ideal for lab’s expanding workload
- Utilize the same linear space as manual incubator and reader
The innovative DS2 is designed for clinical, research and industrial labs that want to enhance their processes through automation. Installed in over 3,500 labs worldwide, the DS2 is the solution for the rigorous, repeatable analyses required in critical applications including immunology, infectious disease, hormone, allergy, blood-chemistry, drugs-of-abuse testing, food safety, forensics, and environmental testing among others.
Specifications
Physical Specifications
Dimensions Metric Non Metric
Width: 54 cm 21 in
Depth: 68 cm 27 in
Height: 66 cm 26 in
Footprint: 0.36 sq m 3.9 sq ft
Bench Weight: 48 kg 105 Ib
Ship Weight: 78 kg 170lb
Noise: Noise output < 78 dB
System Specifications
Number of Plates: 2
Sample Capacity: 100 per load
Continuous Sample Loading: Yes
Sample Tube Size: 10 mm – 16 mm diameter
40 mm – 100 mm height
Number of Reagents: Up to 8 (25 mL tubes)
Up to 10 (15 mL tubes)
Number of
Standard/Control Bottles: 24 (2 mL vials)
Assays per Plate: Up to 12
Dilution Wells Capacity: Up to 96 deep-well strips (12 x 8)
Sample Tip Capacity: 216 tips (2 x 108)
Reagent Tip Capacity: 20 tips
Reader Specifications
Photometric Range: 0.100 – 3.0 OD
Spectral Range: 405 nm – 690 nm
Filter Slots: 6 wavelength
Precision: < 1% CV (< 2.0 OD)
< 2% CV (2.0 – 3.0 OD)
Accuracy: ± 0.005 OD or 2.5
(0.000 – 3.000 OD) whichever is greater
Read Time: < 30 sec (single wavelength)
Washer Specification
Manifold Configuration: 8-way
Programmable Volumes: 50 µL – 1,000 µL
Wash Buffer Capacity: 2 wash bottles at 2 L, with level-sensing
Residual Wash Volume: < 3 µL with super sweep
Dispense Precision: ≤ 5% CV (with 300 μL in a 96 well plate)
Waste Container: 1 x 1.5 L
Incubator Specifications
Number of Incubators: 2
Temperature Range: Ambient + 4° C to 40° C
Temperature Accuracy: ± 1° C across plate @ 37° C
Shaking: Independent linear motion
14 – 20 Hz (periodic or continuous)
Temperature Monitoring: Yes
Reagent Pipetting Specifications
Reagent Tip Size: 1,300 µL
Reagent Pipetting Volume: 20 μL – 1,000 μL
Precision, Reagent Tip: < 3% CV at any operating volume above
20 uL (single-shot mode)
Sample Pipetting Specifications
Sample Tip Size: 300 μL
Sample Pipetting Volume: 10 μL – 250 μL
Sample Pipetting Precision: < 3% CV at any operating volume above
10 uL (single-shot mode)
Dilution Range: 1 part in 199 one-stage dilution
1 part in 39,601 two-stage dilution
Process Security
Liquid Level Sensing: Yes (reagents, controls and samples)
Level Sensor System: Pressure di erential
Clot Detection: Yes
Dispense Anomaly Detection: Yes
Tip Detection: Yes
Electronic Signature Pipetting: Yes
Alarms: Yes
Software
Controlling Software: DS-Matrix
Work Protocols (Assays): Unlimited
Data Processing: Quantitative and qualitative
Levey-Jennings: Yes
Westgard Rules: Yes
Process Reporting: Event log + error log
Automatic Error Recovery: Yes
Password Access Control: Yes
