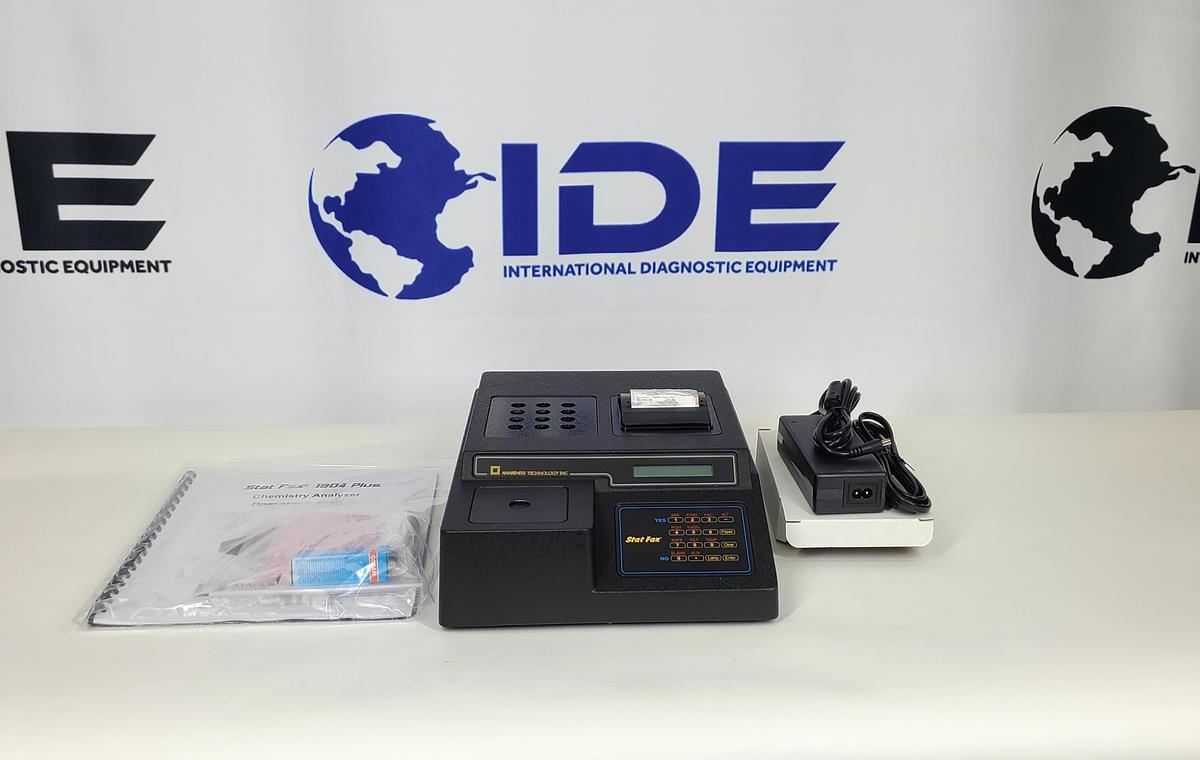

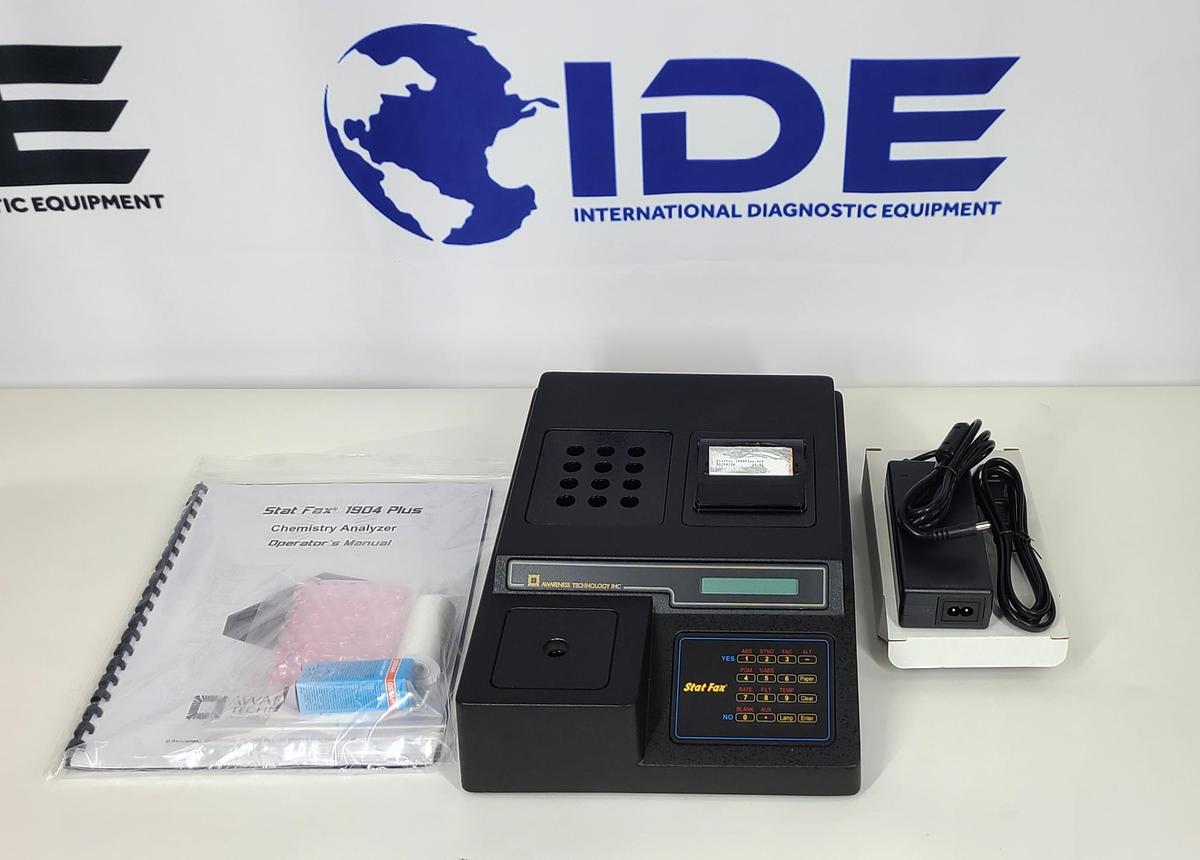

Awareness Technology Stat Fax 1904 Biochemistry Analyzer

Awareness Technology Stat fax 1904 Biochemistry Analyzer

Includes:

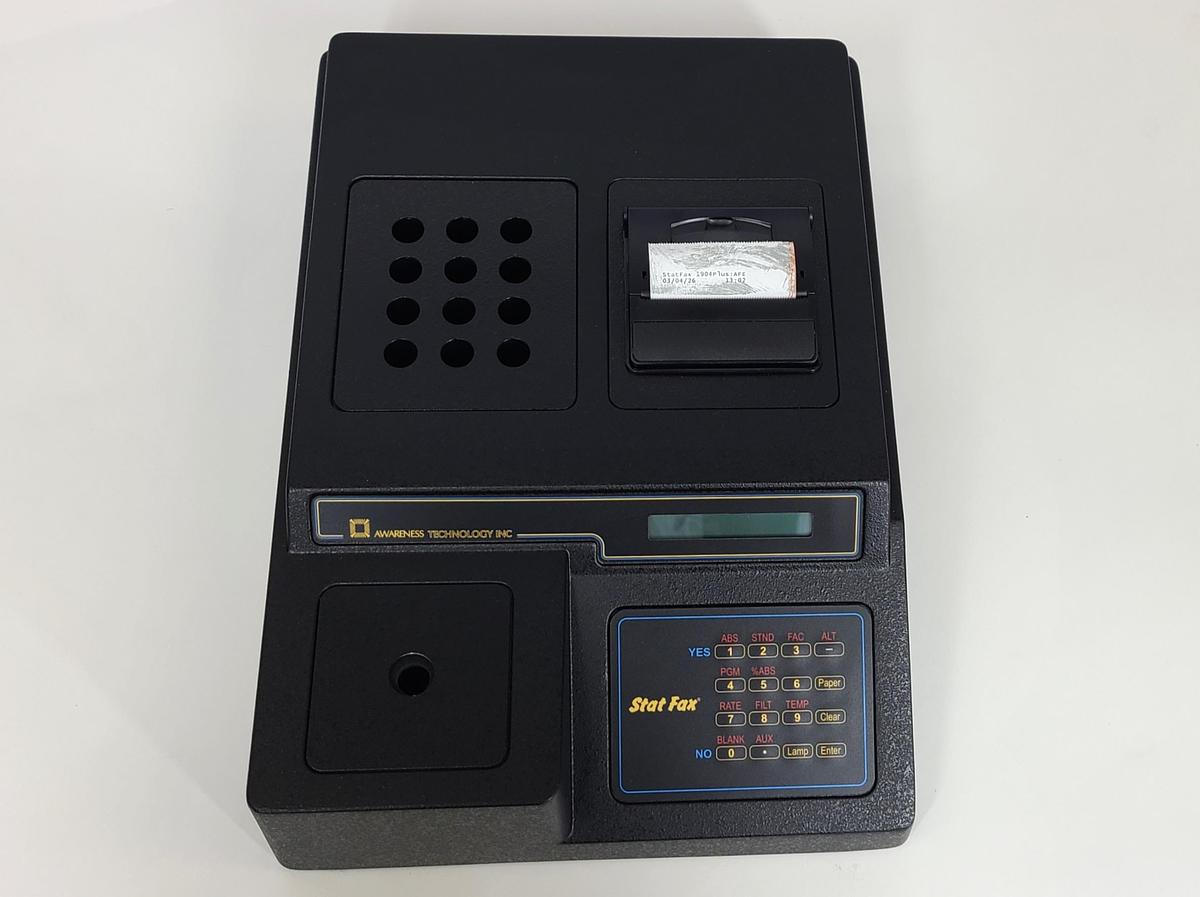

The Awareness Technology Stat Fax 1904+ Chemistry Analyzer is a stand-alone biochemistry analyzer designed to measure absorbance or concentration for both endpoint and kinetic colorimetric assays. Its features include a bichromatic optical system with six standard filters (including 340 nm), a 12-station 37 °C incubation block with temperature-controlled read cell, and non-volatile memory capable of storing up to 60 user programs. The system also includes step-by-step prompting, an onboard graphics printer, and supports cuvettes sized 12 mm × 75 mm. When used with the Mosquito flow cell accessory, it can read sample volumes as small as 250 µL.

Features:

•      Read well accepts 12 mm test tubes

•      Standard 6 filter configuration (340 nm - 600 nm)

•      Reads and Calculates the results of endpoint and kinetic colormetric clinical assays

•      Kinetic Assays may be plotted on the internal graphics printer to verify linearity of the reaction

•      Built-in 37˚C incubation block with 12 stations

•      Single or multipoint calibration

•      Stores more than 50 tests in memory

Specifications:

Stability

• Drift: ≤ 0.005 A in 8 hours (bichromatic)

Light Source

• Tungsten halogen lamp with lamp saver feature

Wavelengths

• Standard: 340, 405, 450, 505, 545, 600 nm
• Optional filter range: 340 – 700 nm (custom order)

Reading Range

• 0 to 2.5 absorbance units

Sampling

• Tube size: 12 mm
• Minimum sample volume: 1 mL
• Read speed: 3 seconds per tube
• Temperature: 37°C
• 12-station block is constantly on
• Read cell has an on/off switch (can be disabled as needed)

Operating Modes

Calculation Modes

• Single point calibration (by standard or factor)
• Multipoint calibration (point-to-point curve fit)
• Rate by standard or factor (batch or individual)

Test Menu

• More than 50 open channels for test storage
• Stores parameters including:
• Wavelengths
• Calculations
• Unit codes
• Linear and normal ranges
• Rate timing
• Standard values
• Test names and previous standard curve

Physical & Electrical

• Dimensions: 9” × 13.5” × 5” (22.86 × 34.29 × 12.7 cm)
• Weight: 10 lbs (4.5 kg)
• Power: 115/230 V AC, 50/60 Hz (switch selectable)
