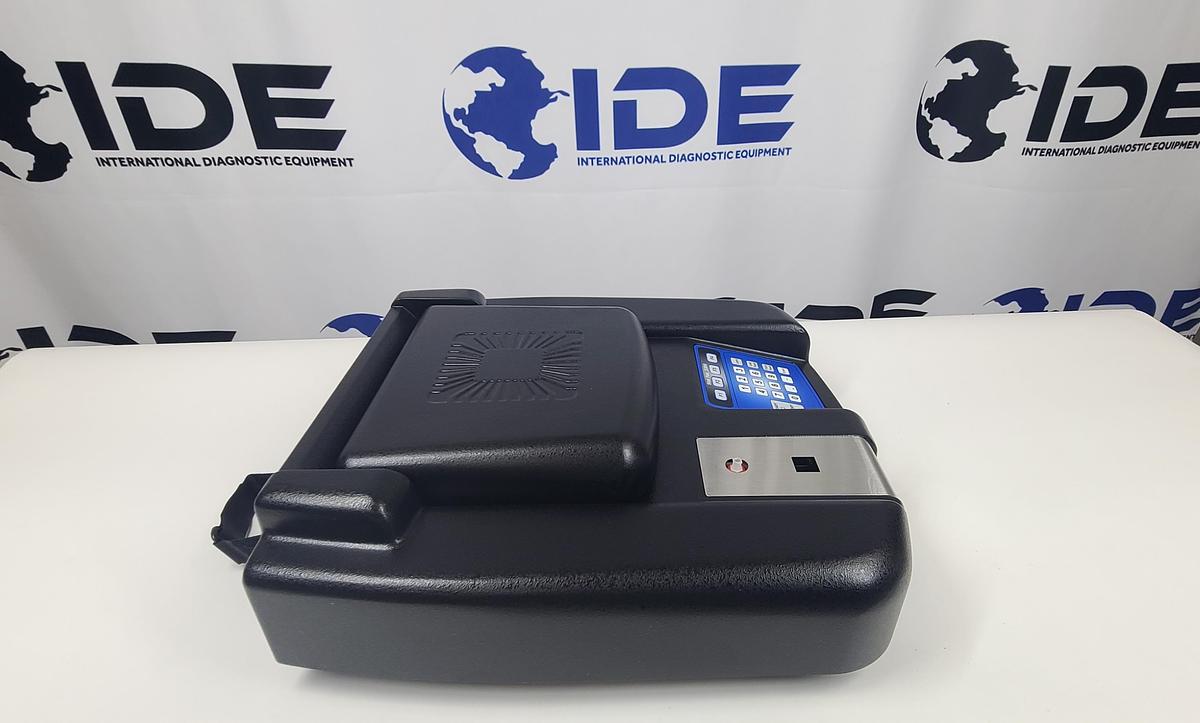

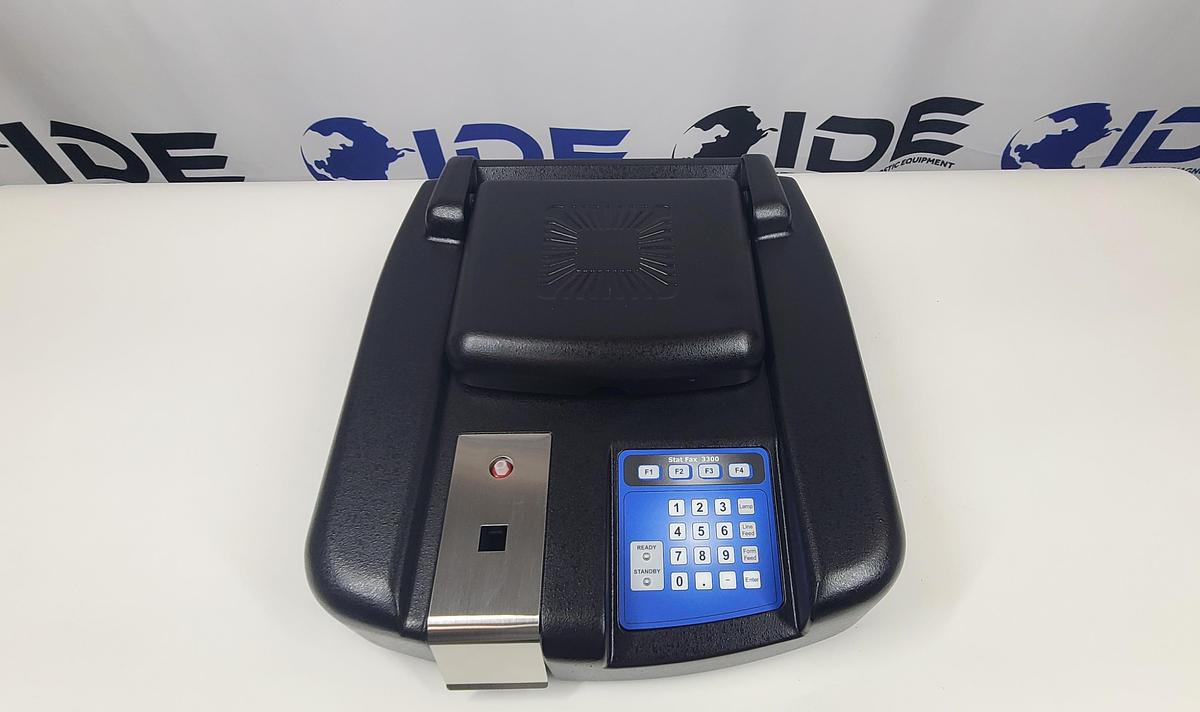

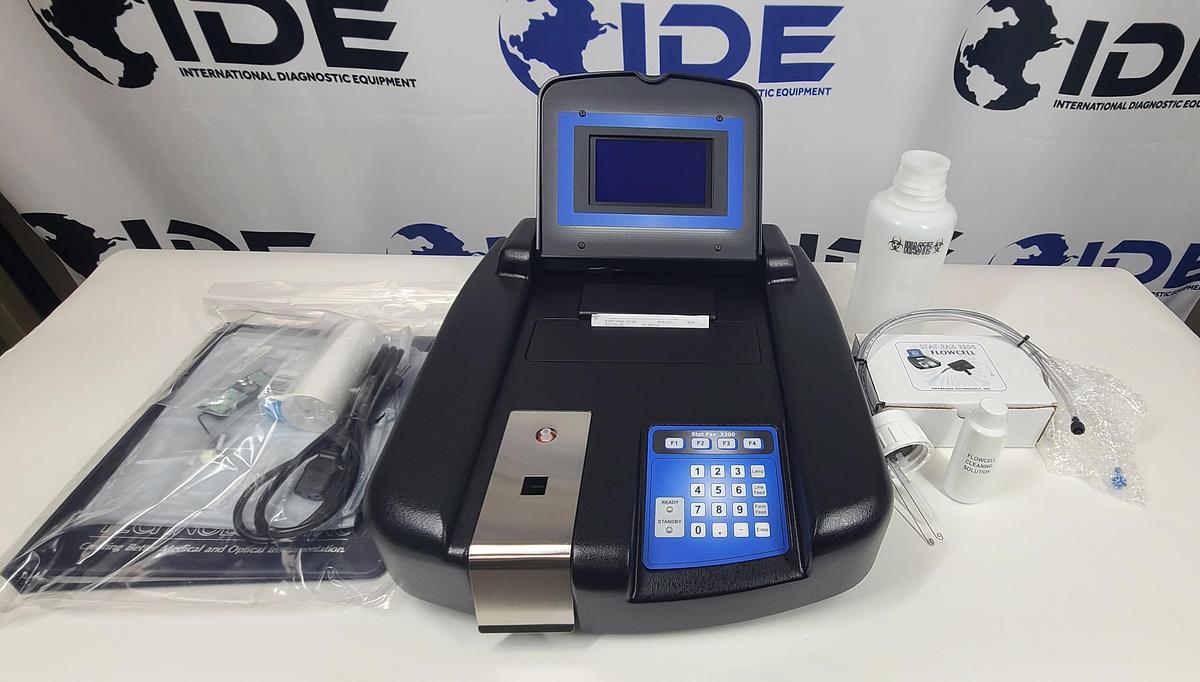

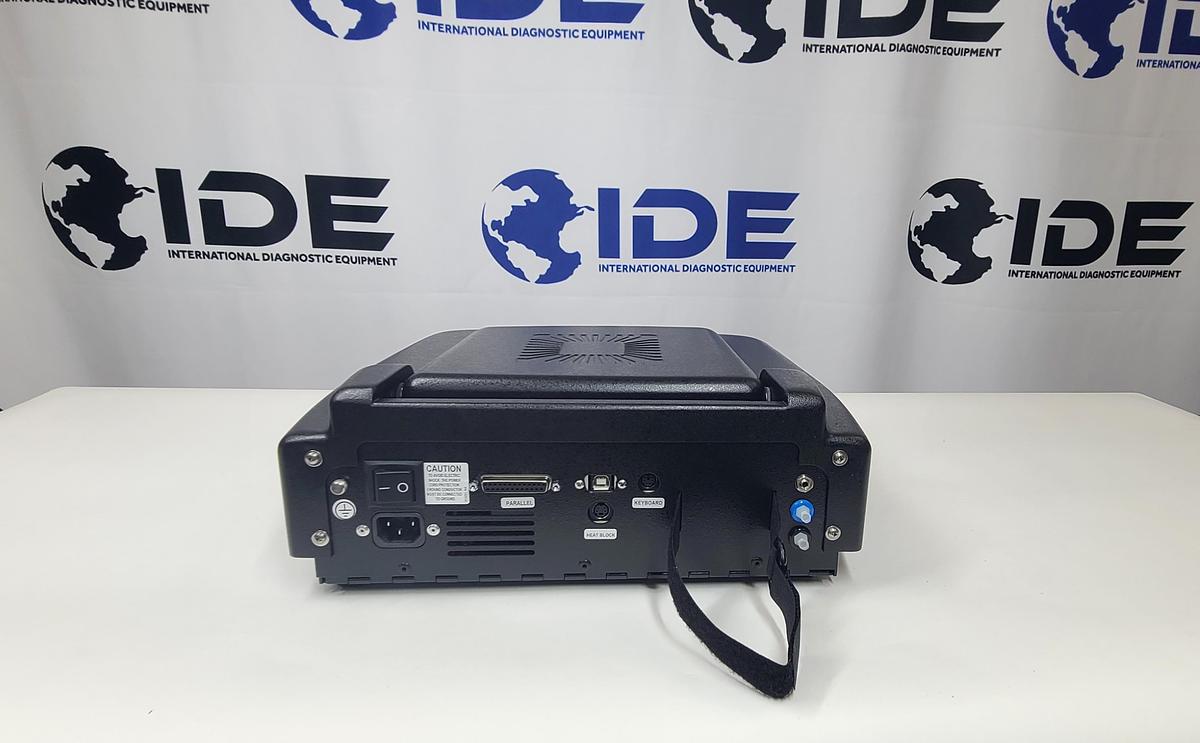

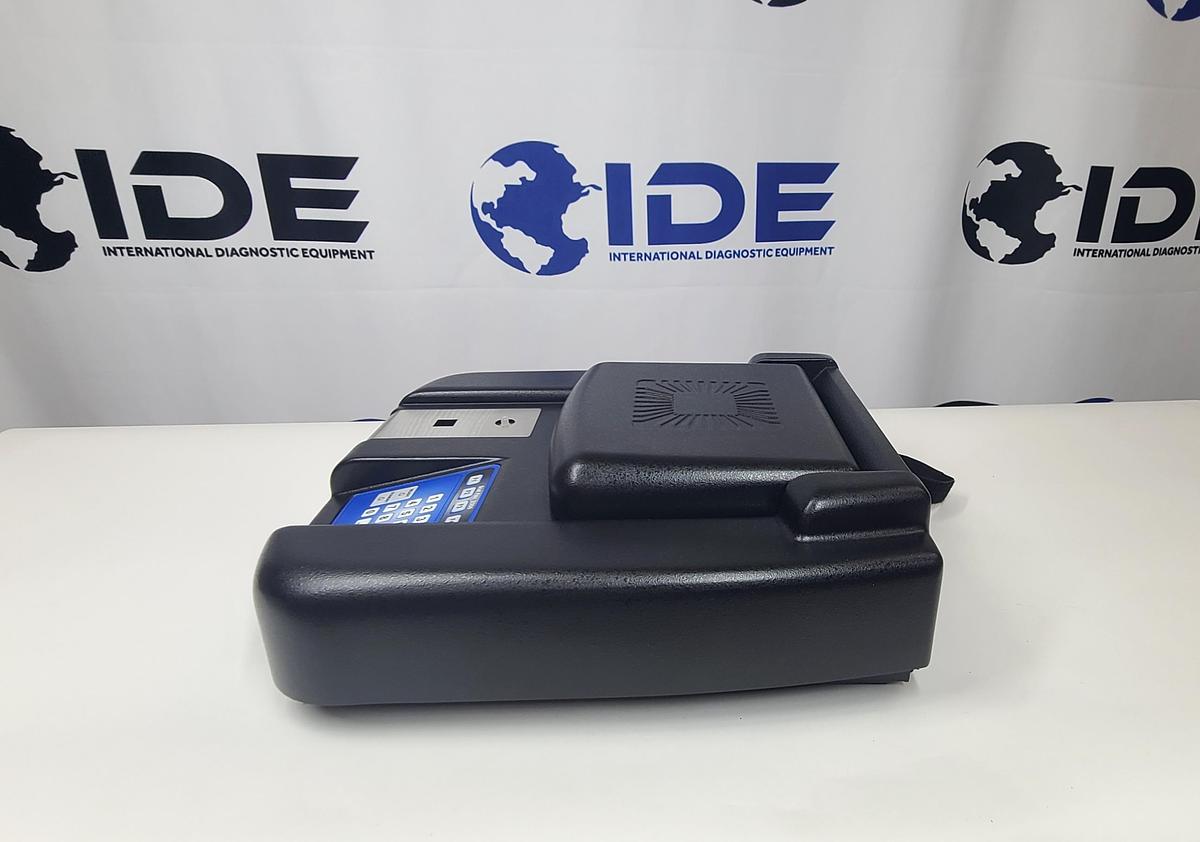

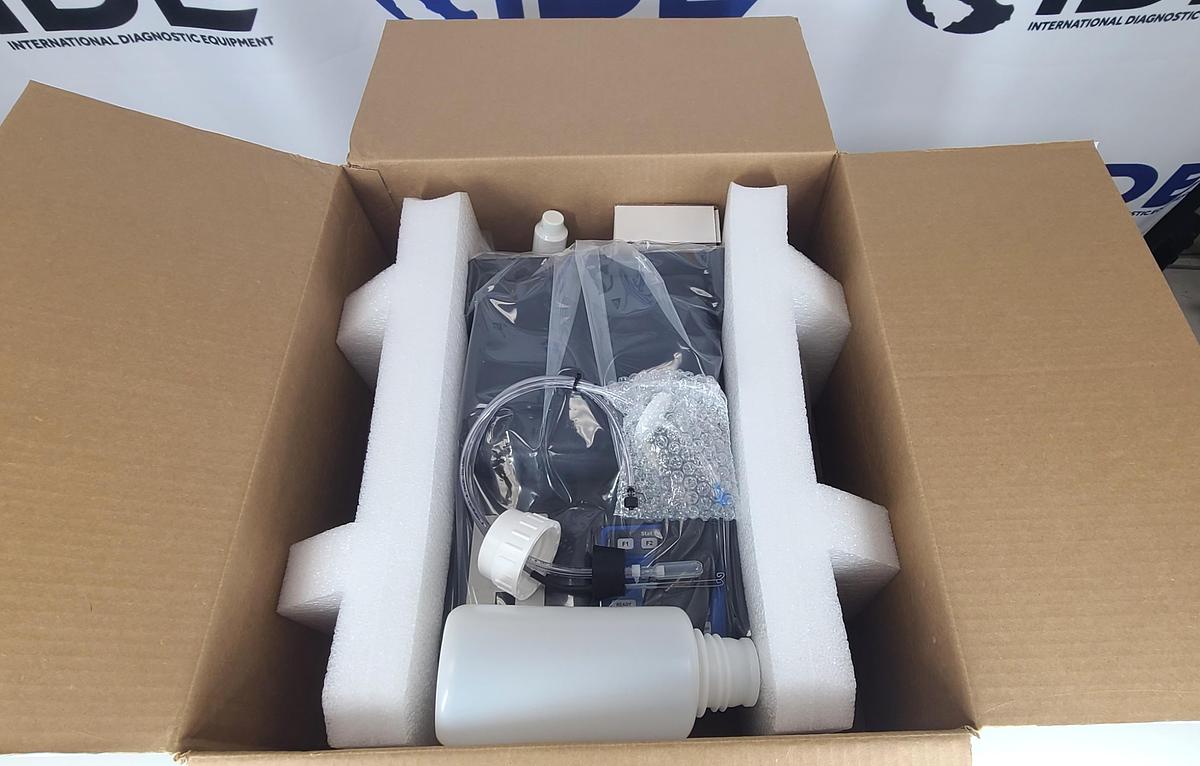

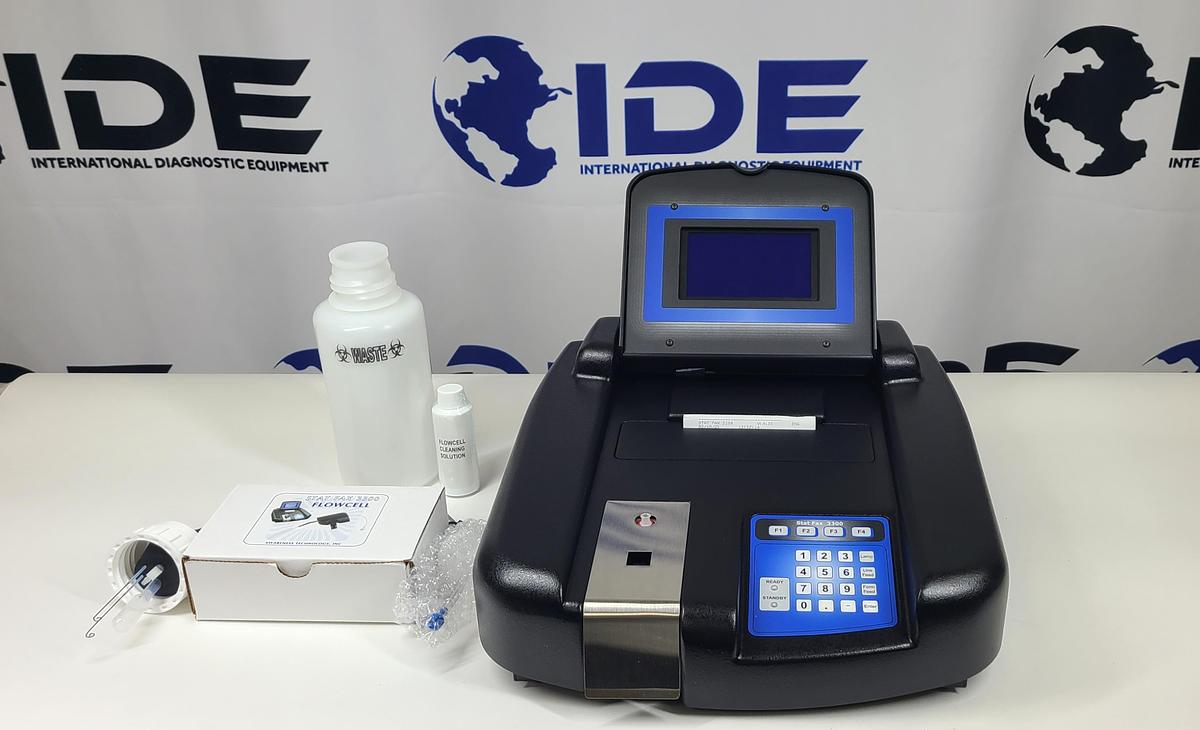

Awareness Technology Stat Fax 3300 Chemistry Analyzer
Awareness Technology Stat Fax 3300 Chemistry Analyzer
$3,750
or
Call 951.296.1266
Description
Awareness Technology Stat Fax 3300 Biochemistry Analyzer
Includes:
The STAT FAX 3300 Chemistry Analyzer is a versatile instrument for precise in-vitro diagnostic testing. It includes a 240 × 128 graphical display, multiple operating modes, and compatibility with tubes and cuvettes. Designed for efficiency, it includes a vacuum system for fast sampling, real-time kinetic plots, QC tracking, and storage for calibration and patient data.
Features:
- Password protection for results and parameters
- Levey-Jennings quality control
- Patient reports and job creation
- Storage: 100+ patient results, 500+ control results, 500+ user tests
- Optional external heat block (18 wells, 37°C controlled)
- Optional read cell cooling (Peltier system)
Specifications:
Photometer
- Tube or cuvette compatible with flowcell option
- Absorbance range: -0.2 to 2.5 AU / -0.2 to 3.5 AU
- Stability: drift ≤ 0.005A in 8 hours (bichromatic)
- Light source: tungsten halogen lamp with lamp saver feature
- Standard wavelengths: 340, 405, 505, 545, 580, 630 nm (+ 2 optional)
- Filter types: ultra long-life multiple cavity IAD hard coat
Sampling
- Sample volume (flowcell): programmable 250–750 µL
- Flowcell body: surgical-grade stainless steel windows
- Windows: Pyrex
- Illuminated volume: 21 µL
- Minimum volume (tube, 12 mm): 1 mL
- Minimum volume (cuvette): 400 µL
Electronics
- Processor: Z180
- Program memory: 1 megabit
- Non-volatile memory: 1 megabit
- RAM: 32 KB
- Display: graphical LCD 240 × 128
- Keyboard: 20-key domed membrane
- PC compatibility: standard PS2 keyboard supported
- Output (RS232): 9600, 8 data bits, 1 stop bit, no parity
- Printer output: compatible with IBM ASCII printers
- Internal printer: 40/80-column thermal
Operating Modes
- Single and multipoint standardization
- Rate mode (factor/standard)
- Curve fitting: linear, point-to-point, regression
- Features: live graphical reaction display, blank & curve recall, sample blanking
Enclosure
- Fire-retardant ABS and steel construction
Dimensions
- 16" (40 cm) × 14.5" (37 cm) × 5.5" (14 cm)
- 12" (30 cm) tall with screen raised
Weight
- 17 lbs (6.4 kg)
Power
- 100–240 VAC (self-sensing), 50/60 Hz
- 50 watts
Specifications
| Manufacturer | Awareness Technology |
| Model | 3300 |
| Condition | New |
| Stock Number | 124 |
| Spectrophotometer Type | Filter photometer |
| Optical Configuration | Single beam with continuously rotating filter wheel Monochromatic or bichromatic reading 8 filter positions |
| Usable Spectral Range | 330 to 770 nm |
| System Procedures | Open and by stored menu |
| Calculating Modes | Absorbance, Single Standard, Factor Mode, Multi Standard Mode (up to 7 standards), Multi Standard % Abs (up to 7 standards), Kinetic Mode, Index Mode |
| Channels | 120 Open |
| Source of Radiation | Tungsten Halogen, 10 Watt, with automatic lamp saver |
| Selection of Wavelength | By filter |
| Filter Type | 4-cavity interference, long-life ion beam-assisted deposition |
| Wavelength Accuracy | +/- 3 nm |
| Filter Location | After sample (heat absorbing filter before sample) |
| Filter Selection | Automatic by software or via keyboard |
| Wavelengths | 340, 405, 505, 545, 580, 630 nm supplied standard, other/additional filters optional |
| Half Bandwidth | < 10 nm |
| 1/100 Bandwidth | 14 nm at 340 nm |
| False Radiant Energy Ratio | < 0.001 at 340 and 405 nm |
| Cuvette | 1 cm square, 12 cm round, flow through |
| Supplied Type | flow through |
| Material | 316 stainless, borosilicate windows |
| Geometry | Cylindrical, 2.3 mm dia x 5 mm +/- 0.05 mm |
| Illuminated Volume | 21 µl |
| Minimum Read Volume | 250 µl |
| Aspiration/Purge | Vacuum pump at 18 cm of Hg |
| Valve | Silicone pinch type |
| Cuvette Holder | Thermostatically controlled compartment at 37° C |
| Detector | Gallium-Arsenide-Phosphide photodiode |
| Display Type | 240 x 128 Graphic LCD w/ Backlight |
| Absorbance | -0.5 to 3.5 (flow-through mode) -0.5 to 2.5 (tube or 1 cm cuvette) |
| Concentration | Maximum 999,999 |
| Kinetic Results | Abs/min with resolution of 0.0002 A/min |
| Zero Compensation | Automatic |
| Range | -0.5 to 2.5 absorbance |
| Parallel | Centronics/IBM-PC compatible |
| Serial | RS-232 at 9600 baud, 8 data, 1 stop, no parity Bi-Directional |
| Data Input | 1) 20 Key Keypad, 2) PS2 101 Keyboard (connector available at back of instrument) |
| Flow-through | < 0.5 % at 1 absorbance, 340/630 nm |
| Stability | Better than 0.003 A/hr monochromatic after warm-up Better than 0.001 A/hr bichromatic after warm-up |
| Warm-up Time | 90 seconds photometric 15 minutes for temperature compartment |
| Electronics | Z180 Microprocessor 18 MHz 128k EEPROM 32 K bytes Nonvolatile RAM (NVRAM) |
| Power | Auto-Switching Power Supply Voltage source: 90 – 264 VAC Frequency: 50/60 Hz Power consumption: 60 watts Installation Category: CAT II Fuses: 2.5A/250V Fast 5-20 mm Glass Fuse, 2.0A/250V Fast 5-20 mm Ceramic Fuse, (2) 6/10 250V Slow Blow 3AG Fuses |
| Dimensions and Weight | 40cm (L) x 37 cm (W) x 14 cm (H) lid closed (30 cm lid opened), 6.4 kg |
