Abbott Architect c4000 Chemistry Analyzer

Abbott Architect c4000 Chemistry Analyzer

The ARCHITECT c4000 clinical chemistry analyzer demonstrates high-quality testing results and rapid STAT turnaround time. The ARCHITECT c4000 enhances laboratory productivity and provides users high confidence in clinical results.

The ARCHITECT c4000 offers a maximum throughput of up to 800 tests per hour. Featuring a load-up capacity of 100 samples with 35 priority positions, the ARCHITECT c4000 allows for up to 90 refrigerated reagent positions on board, plus Integrated Chip Technology (Na+, K+ and Cl-).

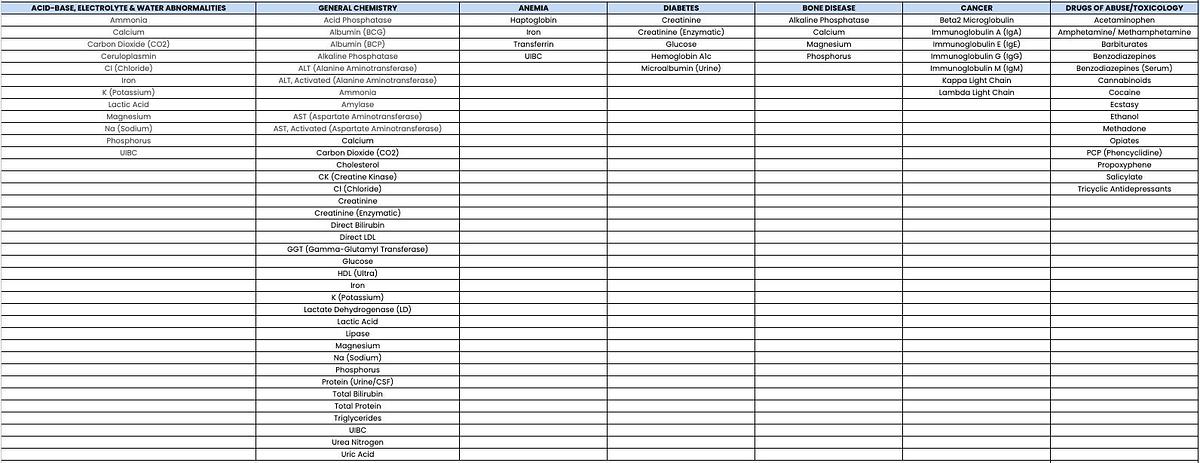

Test Menu

ACID-BASE, ELECTROLYTE & WATER ABNORMALITIES

Ammonia

Calcium

Carbon Dioxide (CO2)

Ceruloplasmin

Cl (Chloride)

Iron

K (Potassium)

Lactic Acid

Magnesium

Na (Sodium)

Phosphorus

UIBC

GENERAL CHEMISTRY

Acid Phosphatase

Albumin (BCG)

Albumin (BCP)

Alkaline Phosphatase

ALT (Alanine Aminotransferase)

ALT, Activated (Alanine Aminotransferase)

Ammonia

Amylase

AST (Aspartate Aminotransferase)

AST, Activated (Aspartate Aminotransferase)

Calcium

Carbon Dioxide (CO2)

Cholesterol

CK (Creatine Kinase)

Cl (Chloride)

Creatinine

Creatinine (Enzymatic)

Direct Bilirubin

Direct LDL

GGT (Gamma-Glutamyl Transferase)

Glucose

HDL (Ultra)

Iron

K (Potassium)

Lactate Dehydrogenase (LD)

Lactic Acid

Lipase

Magnesium

Na (Sodium)

Phosphorus

Protein (Urine/CSF)

Total Bilirubin

Total Protein

Triglycerides

UIBC

Urea Nitrogen

Uric Acid

ANEMIA

Haptoglobin

Iron

Transferrin

UIBC

DIABETES

Creatinine

Creatinine (Enzymatic)

Glucose

Hemoglobin A1c

Microalbumin (Urine)

BONE DISEASE

Alkaline Phosphatase

Calcium

Magnesium

Phosphorus

CANCER

Beta2 Microglobulin

Immunoglobulin A (IgA)

Immunoglobulin E (IgE)

Immunoglobulin G (IgG)

Immunoglobulin M (IgM)

Kappa Light Chain

Lambda Light Chain

DRUGS OF ABUSE/TOXICOLOGY

Acetaminophen

Amphetamine/ Methamphetamine

Barbiturates

Benzodiazepines

Benzodiazepines (Serum)

Cannabinoids

Cocaine

Ecstasy

Ethanol

Methadone

Opiates

PCP (Phencyclidine)

Propoxyphene

Salicylate

Tricyclic Antidepressants

METHODS -Photometric, Potentiometric, Turbidimetric Maximum Throughput -Up to 800 tests/hour Sample Types -Serum, Plasma, Whole Blood, Urine, CSF Sample Tubes Sample Cup -Yes (50 µl dead volume) Sample Capacity -100 Sample Barcode Types -Code 39, Codabar, Interleaved 2 of 5, Code 128 Sample Result Storage -50,000 Sample Volume Automatic Dilution -Yes Sample Probe Carryover -<1000 ppm WB to WB,≤0.1 ppm WB to Serum Reagent Capacity -Up to 90 refrigerated positions plus patented ISE (Na+, K+ and Cl-) Reagent Type ->95% liquid ready-to-use Reagent Onboard Stability Calibration Frequency Sample, Clot and Bubble Detection -Yes Reagent Pressure Monitoring -Yes Sample Interference Measurement System Control Center -1 SCC, with color touchscreen monitor, keyboard and mouse Onboard Maintenance Records -Yes Online Error Code Help -Yes Host Interface -Bidirectional, serial RS-232 interface, host query option available Remote Diagnostics -AbbottLink Dimensions -(H x W x D) 49″ x 63″ x 36″/ Weight- 1,132 lbs Electrical Requirements -AC 180-264V, 47-63 Hz, 20 amp Water Requirements -Deionized water 15 liters/hour during normal operation, 25 liters/hour maximum Heat Output* -3050 BTU/hr, running mode Sample Loading -RSH
