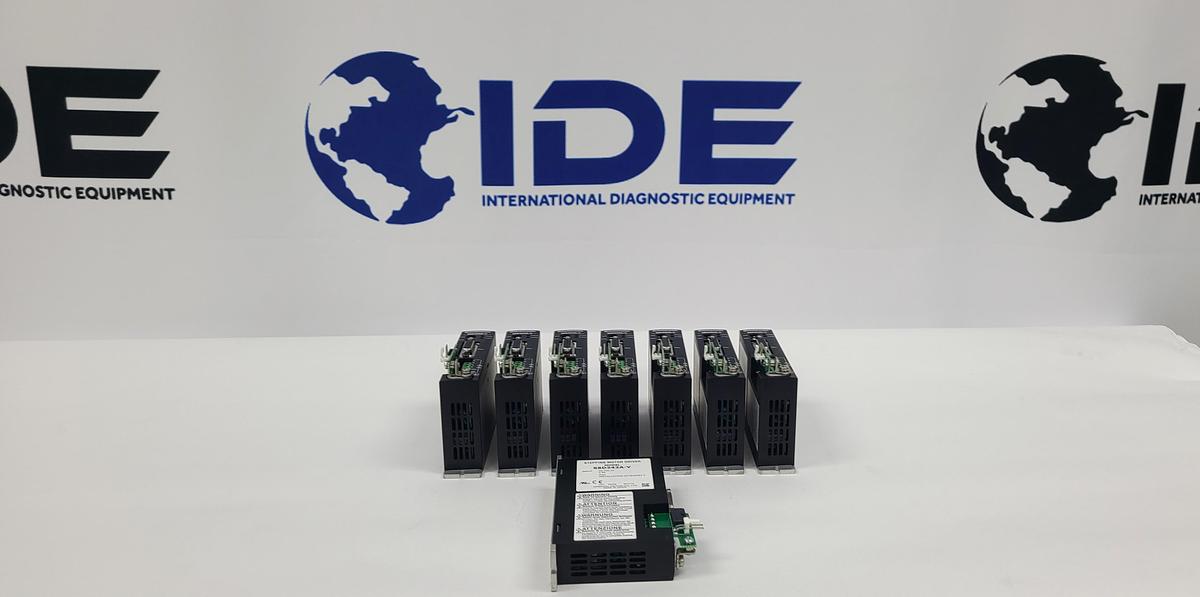

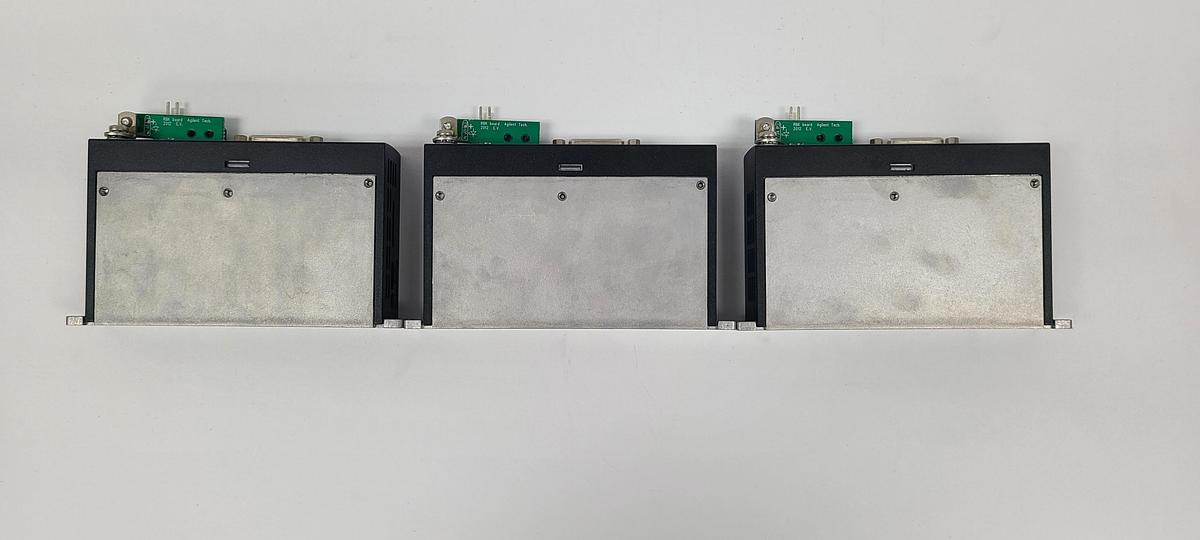

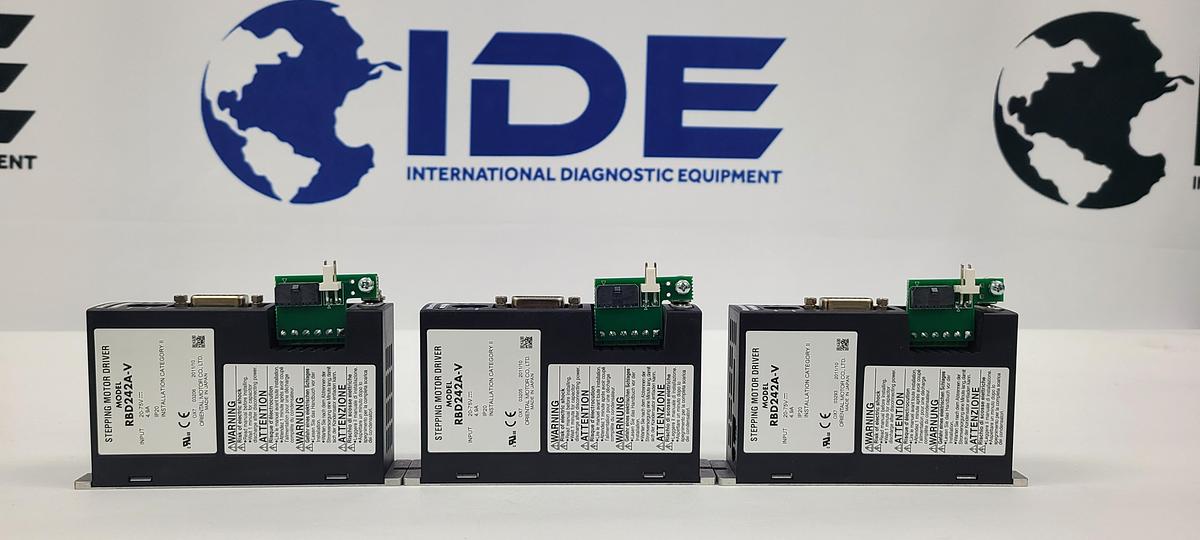

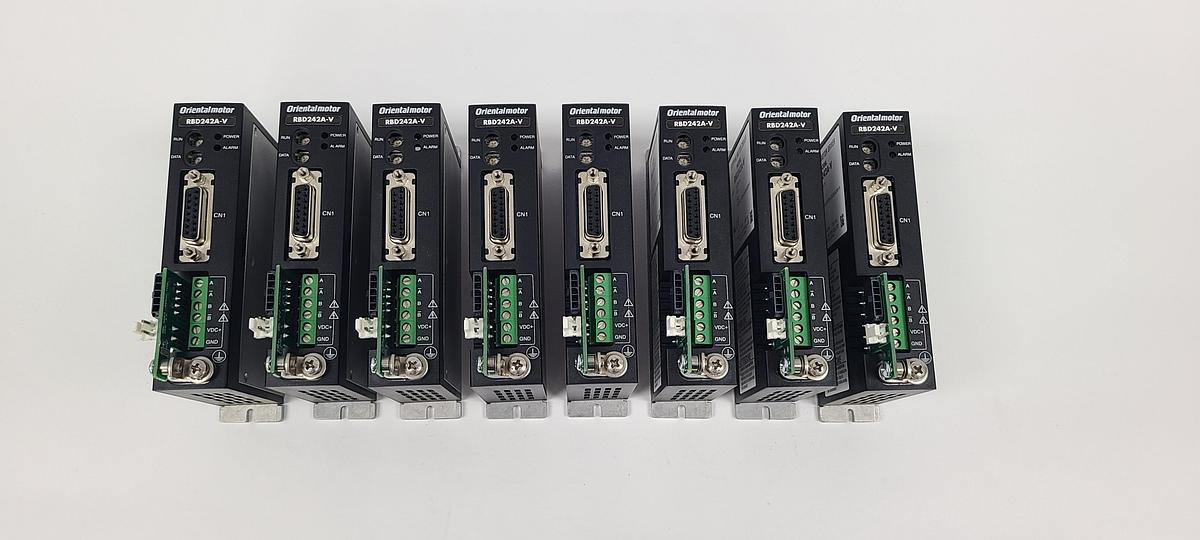

Oriental Motor Stepping Motor Driver RBD232A-V Microstepping 20-75V 4.9A

Oriental Motor Stepping Motor Driver RBD232A-V Microstepping 20-75V 4.9A

Overview:

The Oriental Motor RBD242A-V is a high-performance, industrial-grade 2-phase bipolar micro stepping motor driver designed to provide precise, low-vibration control for stepping motors. Originally part of Oriental Motor’s reliable RBK Series lineup, this driver is highly valued in factory automation and specialized machinery for its smooth motion control and robust power handling. The driver features advanced micro stepping that can divide standard steps into micro-steps as small as 0.014°, alongside a proprietary Smooth Drive function that automatically reduces low-speed vibrations for ultra-smooth motion. Designed with a pulse-input control interface and an IP20-rated enclosure, this industrial-grade unit is commonly used in CNC machines, semiconductor manufacturing, and automated assembly equipment to provide microscopic positioning precision.

Features:

·         Microstepping Resolution breaks down standard motor steps into tiny movements

·         Smooth Drive Function automatically stops the motor from vibrating or shaking when moving at slower speeds

·         Pulse Input Interface accepts standard digital signals from a computer or programmable logic controller to command movements

·         Automatic Current Cut keeps the motor from overheating by dropping the electrical current when the motor stops moving

·         Onboard Adjustments include physical DIP switches and dials right on the case used to set resolution, motor current, and running modes without needing software

·         IP20 Enclosure is a proactive plastic housing designed to keep large debris away from internal electronic circuits

Specifications:

Manufacturer

•          Oriental Motors

Model

•          RBD232A-V

Weight

•          0.81 lbs. (0.35 kg)

Dimensions

•          5.5 x 3.1 x 1.2 in

Input Voltage Range

·         20V-75V DC

Maximum Input Current

•          4.9A

Output Current Range

•          0.09A-4.5A

Chassis Construction

•          Rigid steel backplate with aluminum heat sink core and high-impact plastic control housing

Target Hardware Pairing

•          Calibrated to Oriental Motor’s RBK26
