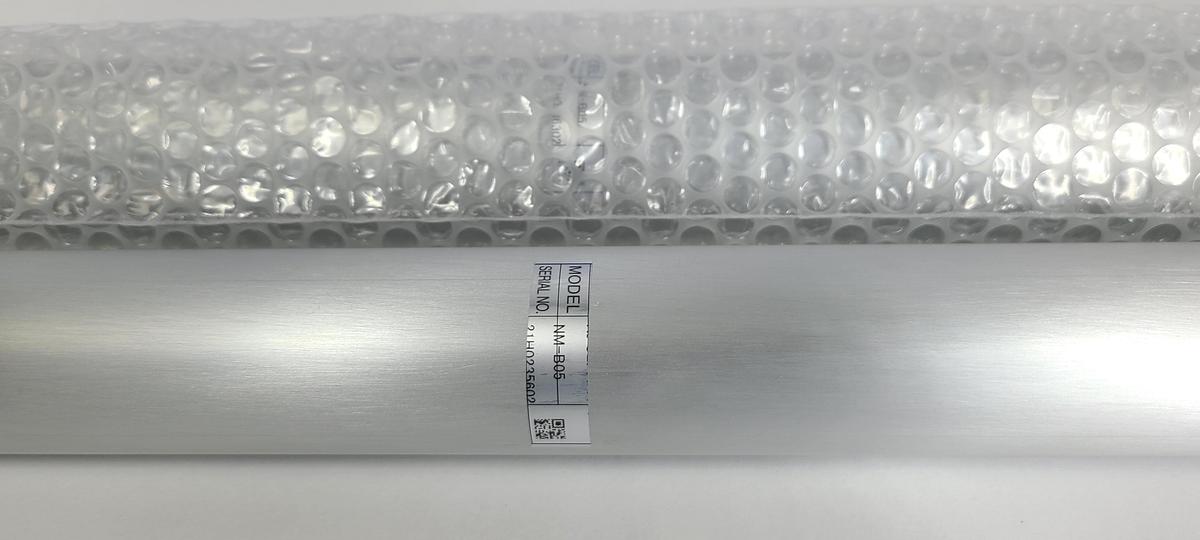

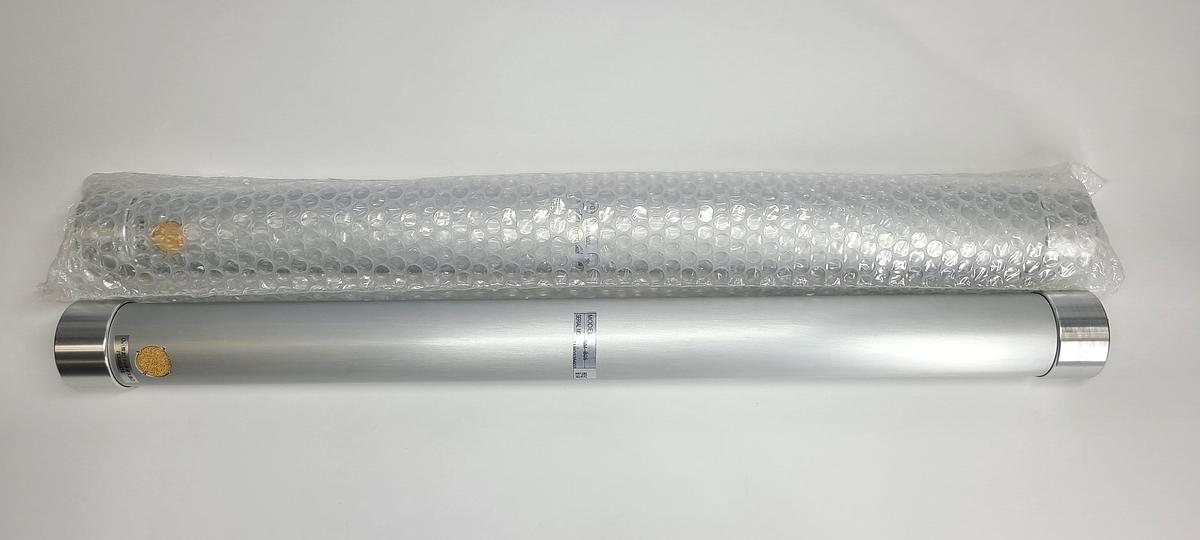

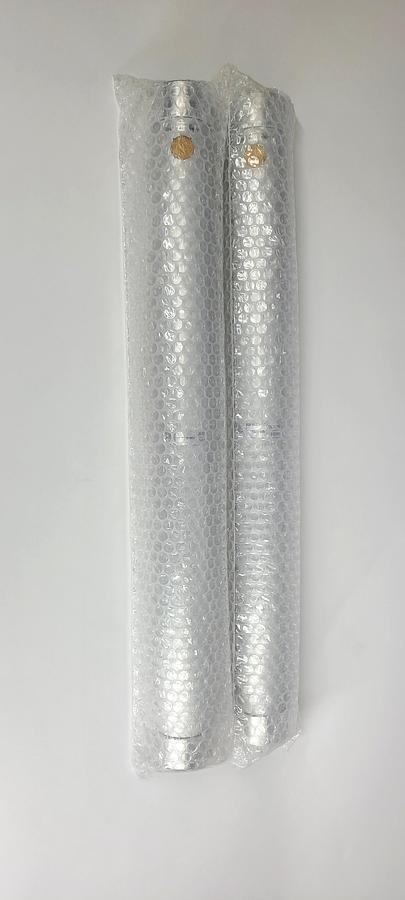

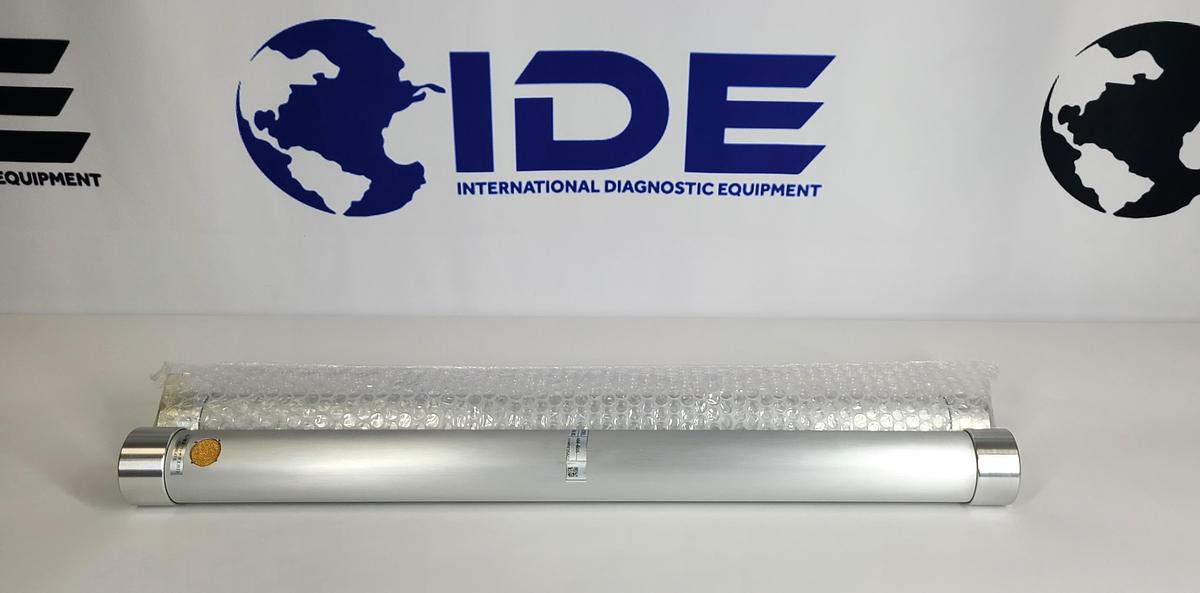

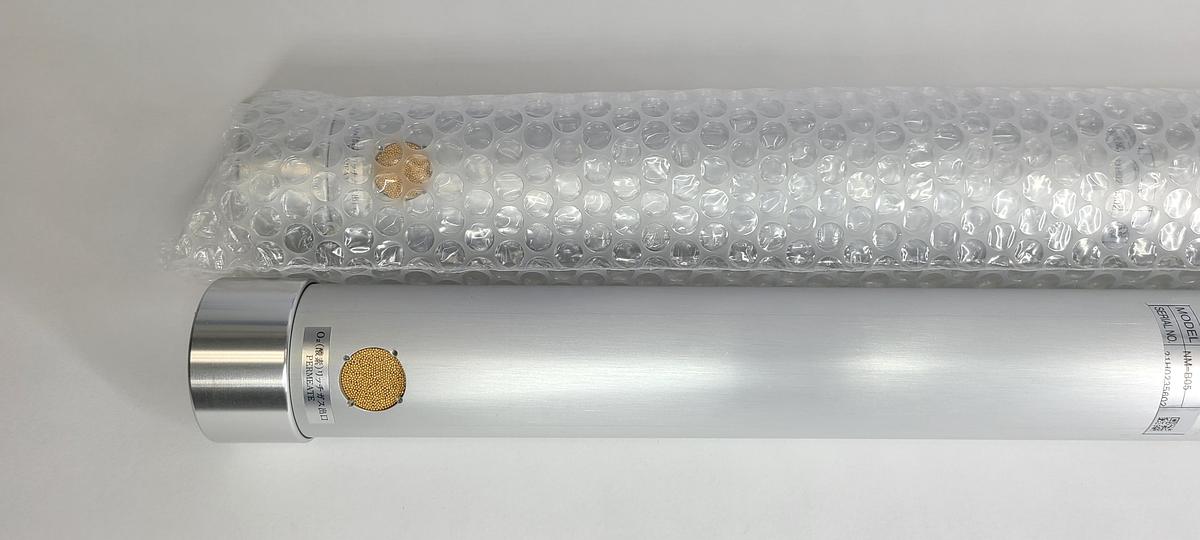

UBE NM-B05A N2 Membrane Nitrogen Separator Unit

UBE NM-B05A N2 Membrane Nitrogen Separator Unit

Overview:

The UBE Industries Ltd. NM-B05A N2 Membrane Nitrogen Separator Unit is a compact, highly efficient gas separation module that extracts clean, dry nitrogen directly from compressed air. Utilizing proprietary polyimide hollow-fiber membranes, the unit relies on selective permeation to quickly vent oxygen, carbon dioxide, and water vapor while capturing nitrogen inside the fibers. This static design contains zero moving parts, offering a virtually maintenance-free, energy-efficient solution capable of delivering nitrogen purities between 90% and 99.9% depending on inlet flow and pressure. The NM-B05A Membrane is widely used for analytical lab instruments, chemical blanketing, and industrial pilot systems.

Features:

·         Elective Permeation separates gas by allowing oxygen and water vapor to quickly pass through fiber walls while keeping nitrogen inside

·         Integrated Gas Drying simultaneously removes moisture from the stream, outputting nitrogen with an exceptionally low-dew point

·         Adjustable Output Purity delivers clean nitrogen with purity levels ranging from 90% to 99.9% based on input pressure and flow rates

·         Push-Fit Fluid Connectors push-to-connect fluid ports for fast, tool-free installation into compressed air lines

·         Chemical & Thermal Ruggedness is built from high-grade polyimide material that offers excellent chemical resistance and handles operational temperatures up to 140 F (60 C)

Specifications:

Manufacturer

·         UBE Industries

Model

·         NM-B04

Weight

·         3.3 lbs.

Dimensions

·         24 x 2.4 x 2.4 in

Nitrogen Purity Level

·         Ranging from 90% to 99.9%

Standard Gas Productivity

·         approximately 0.54 Nm^3/h

Air Temperature Limits

·         140 F (60 C)

Target Filters

·         Oil Free

Max Output Current

·         15/6A
