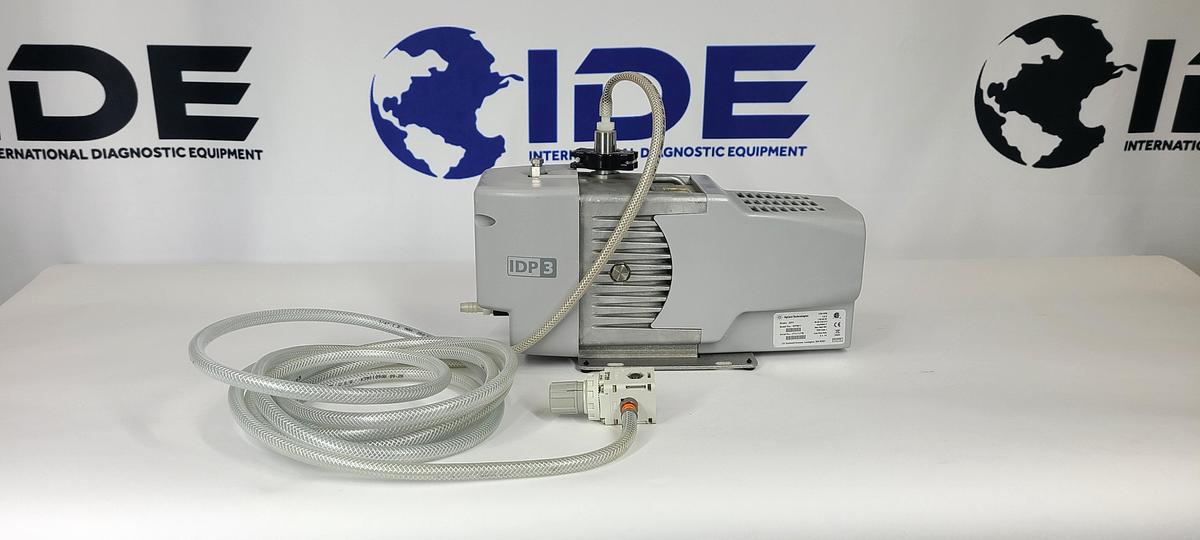

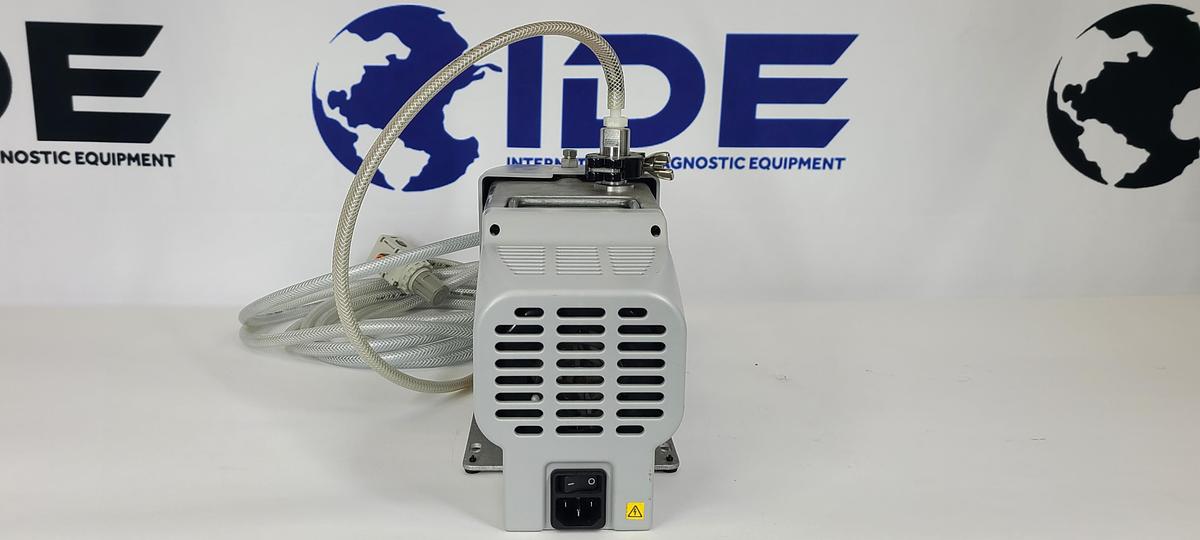

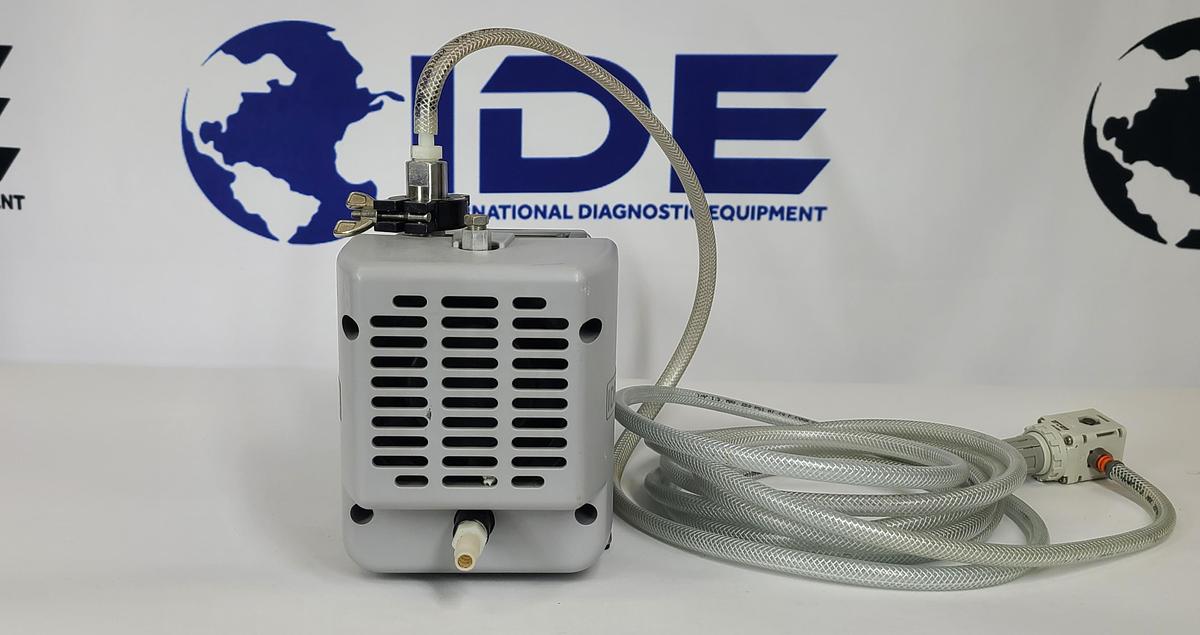

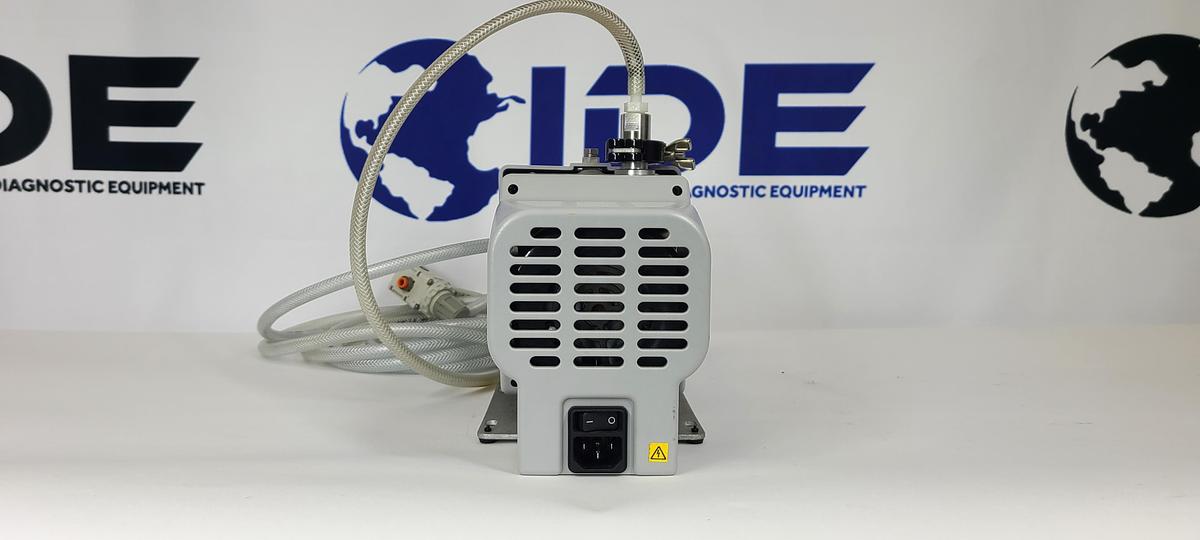

Agilent IDP-3 IDP3D21 Dry Scroll Vacuum Pump with Bottle and Connections Oil-Free

Agilent IDP-3 IDP3D21

Dry Scroll Vacuum Pump with Bottle and Connections Oil-Free

Overview:

The Agilent Technologies IDP-3 IDP3D21 Dry Scroll Vacuum Pump is designed to be wired directly into high-tech laboratory instruments. Unlike standard pumps that plug into a wall outlet, this specific model runs entirely on 24V DC power and features a built-in safety valve. It is most famous for serving as the clean, oil-free backing pump for Agilent GC/MS systems (Gas Chromatography-Mass Spectrometry). It uses a dry scroll mechanism, which means zero oil changes, zero hazardous waste disposal, and zero risk of oil mist polluting your laboratory air or sample path. With its Compact Design and Mess-Free use, the Technologies IDP-3 IDP3D21 Dry Scroll Vacuum Pump is a perfect incorporation to your laboratory.

Includes:

·         Tank

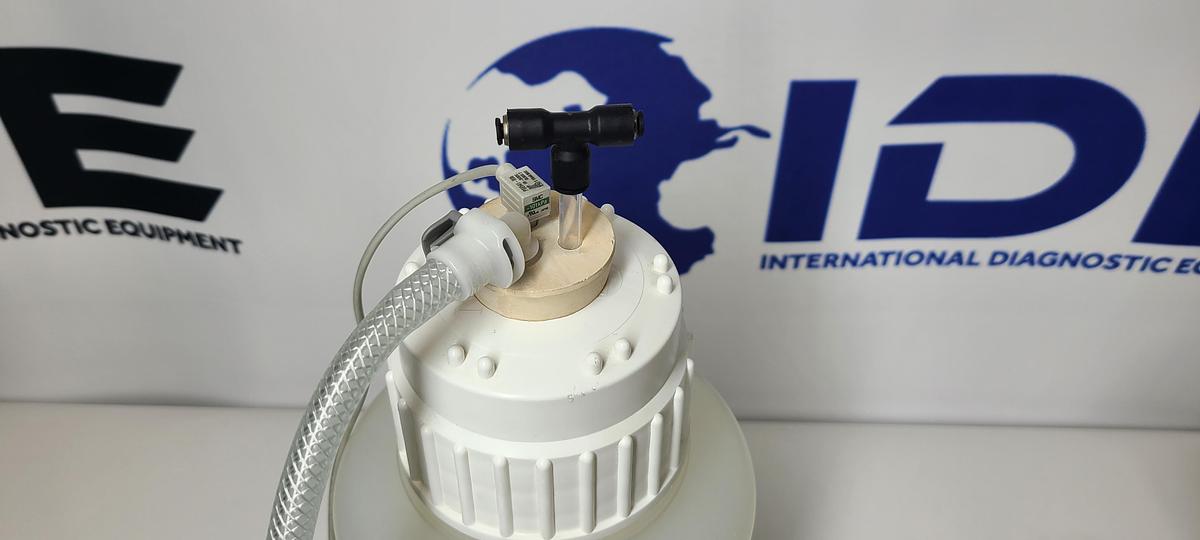

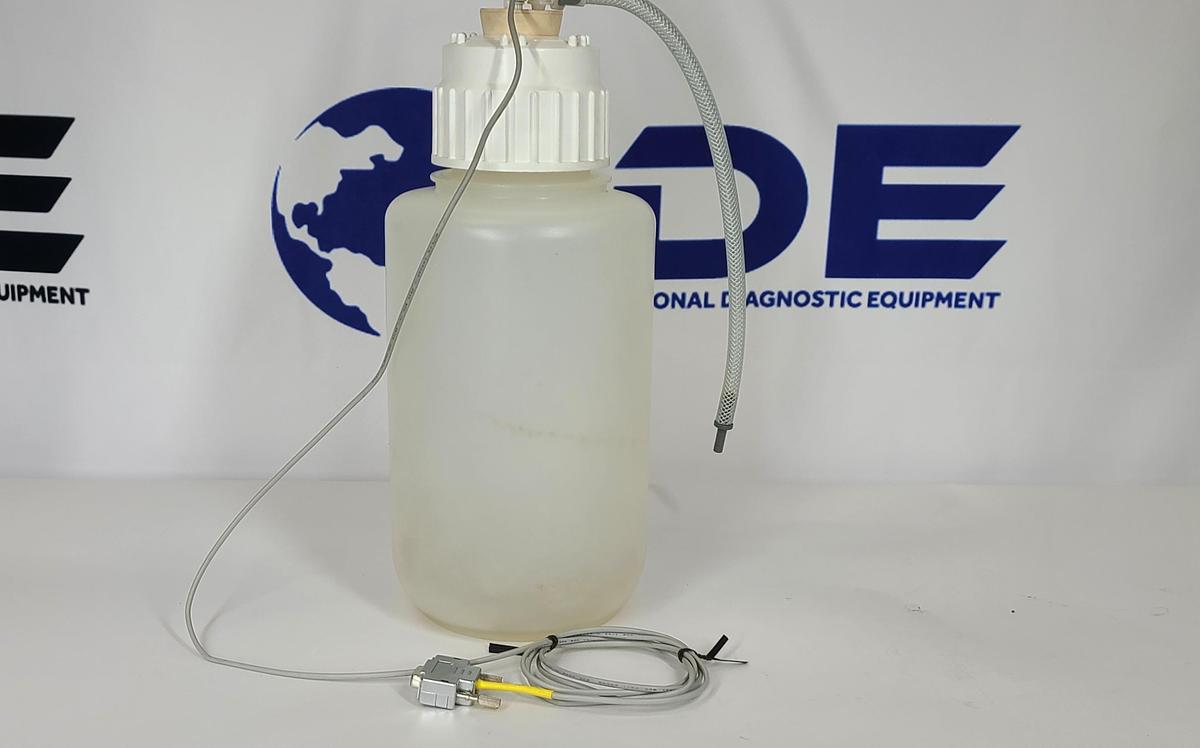

·         Vacuum bottle

·         Connections

Features:

·         24V DC Power Input running on standard 24 Volt DC Instrumentation power

·         Variable Speed Control featuring speed manipulation accepting a 0-10 VCD control signal

·         Bare Power Terminals designed to wire directly into the internal power supply of your main instrument

·         Automatic Thermal Protection with built-in thermal safeguards

·         Integral Hour Meter features a built-in hour tracker to easily monitor usage

·         100% Oil-Free Operation using dry scroll tips to trap air instead of vacuum oil

Specifications:

Manufacturer

•          Agilent Technologies

Model

•          DP3D21

Weight

•          21 lbs. (9.5 kg)

Dimensions

•          5.5 in x 7.13 in x 14.09 in

Operating Temperatures

·         41-104 F

Input Operating Voltage

•          24V DC

Power Rating

•          120 Watts

Control Input

•          9-pin D-sub connector

Wiring Setup

•          Bare Terminal

Peak Pumping Speed

•          60 liters per minute at 3.6m^3/h 2.1 CFM

Bearings and Motor

•          Hermetically isolated shaft
