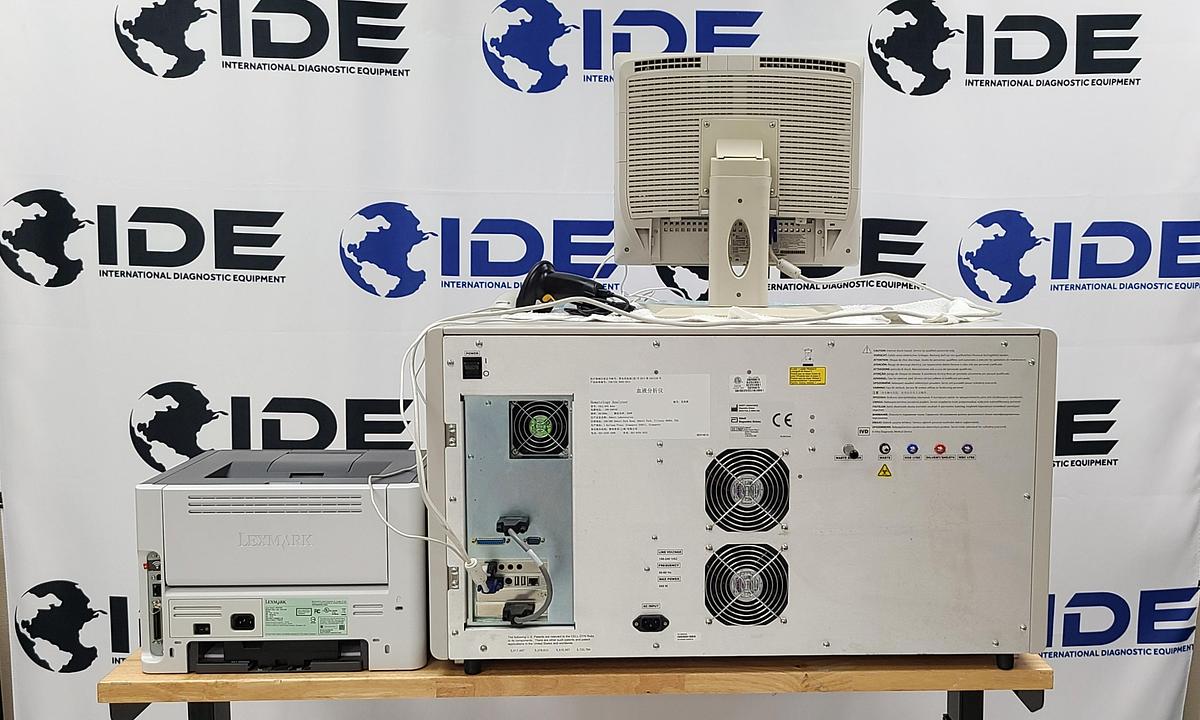

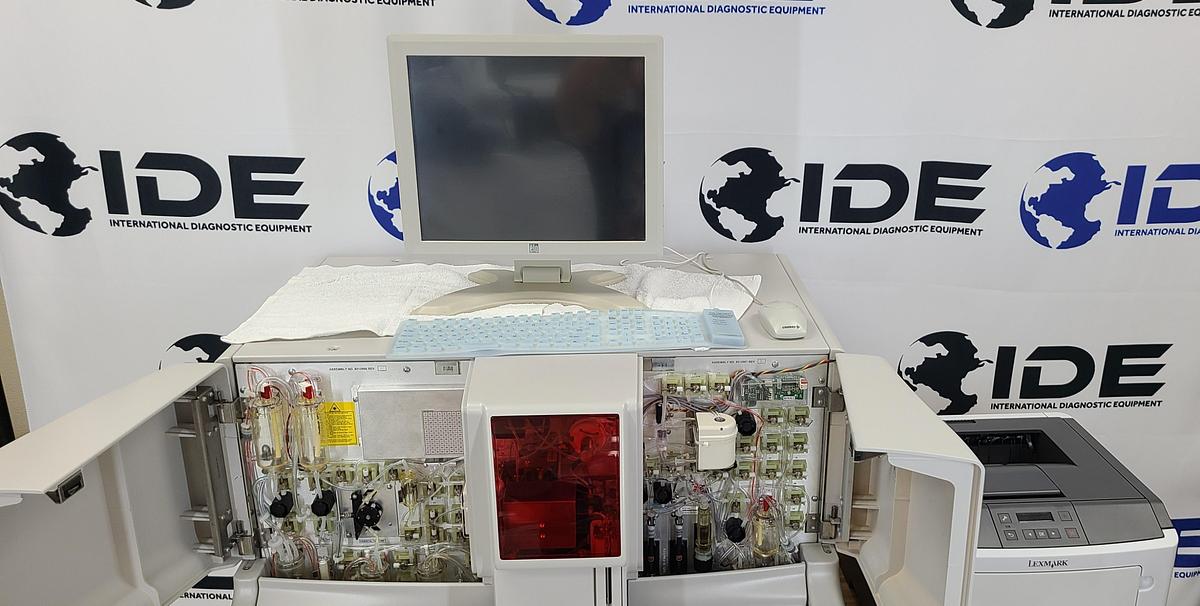

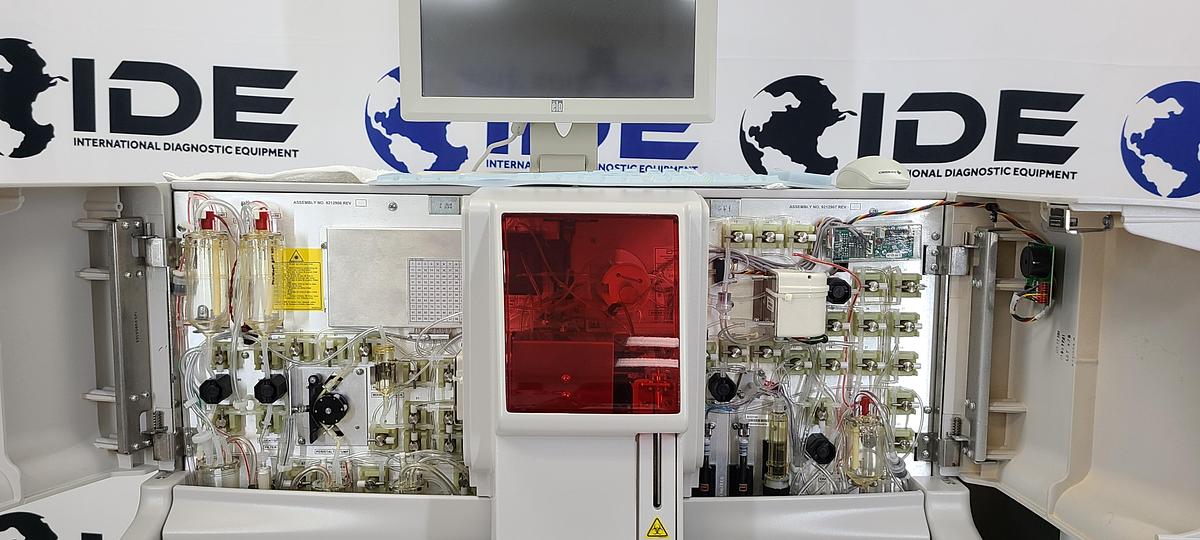

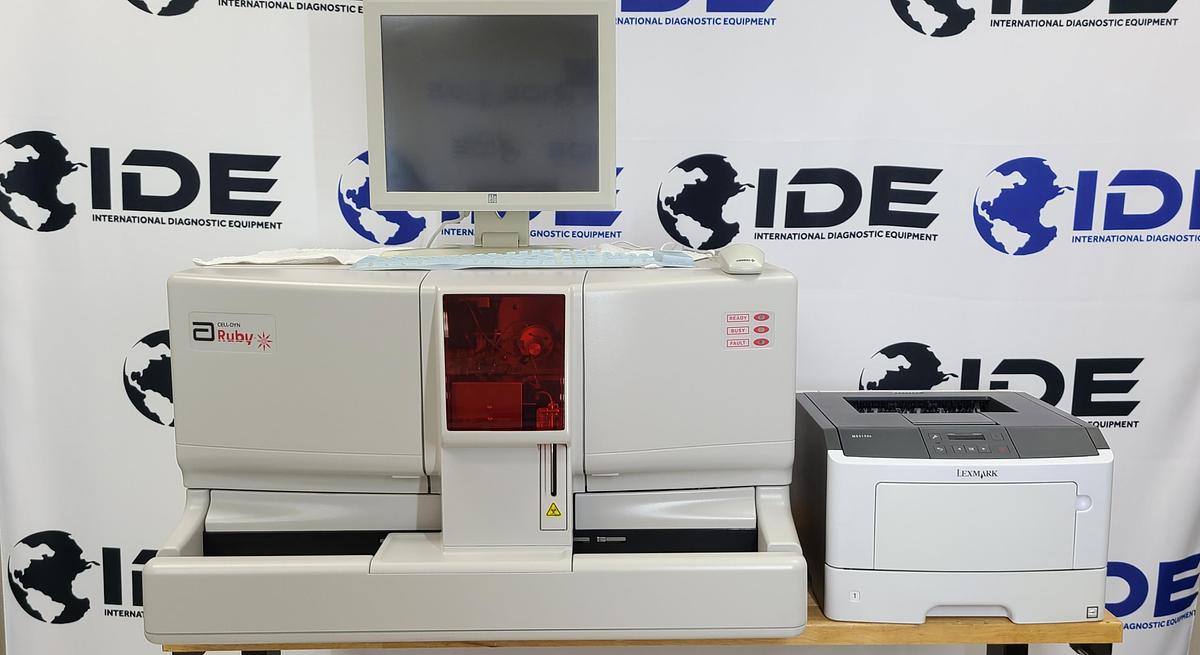

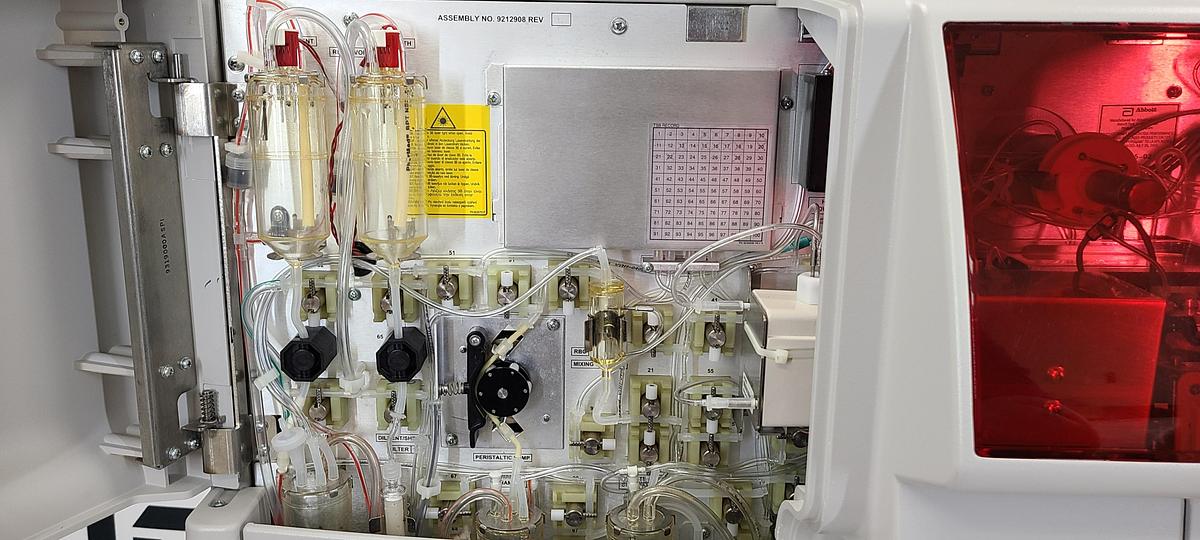

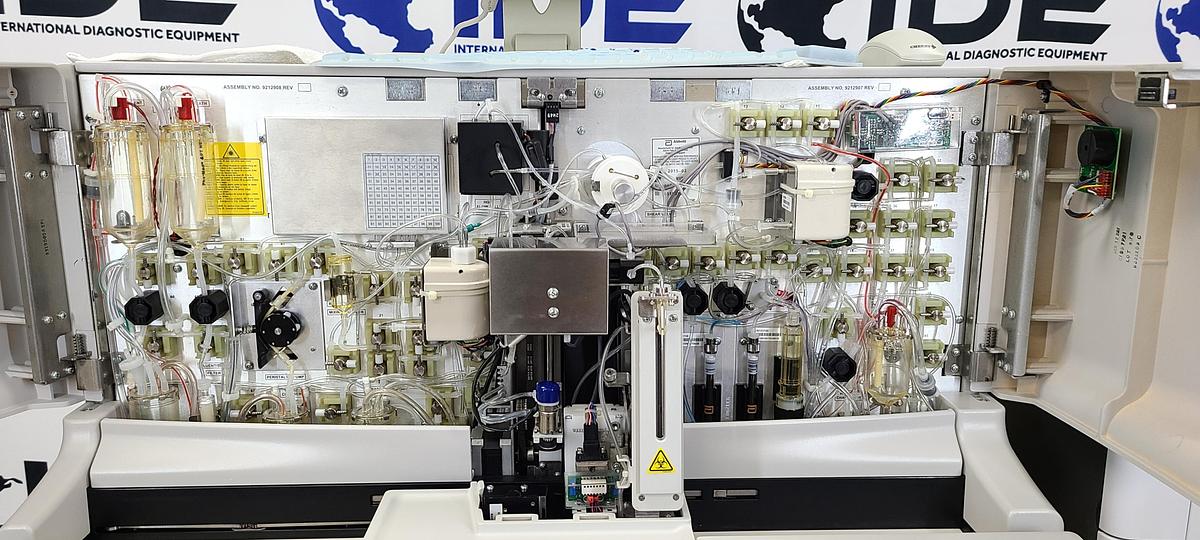

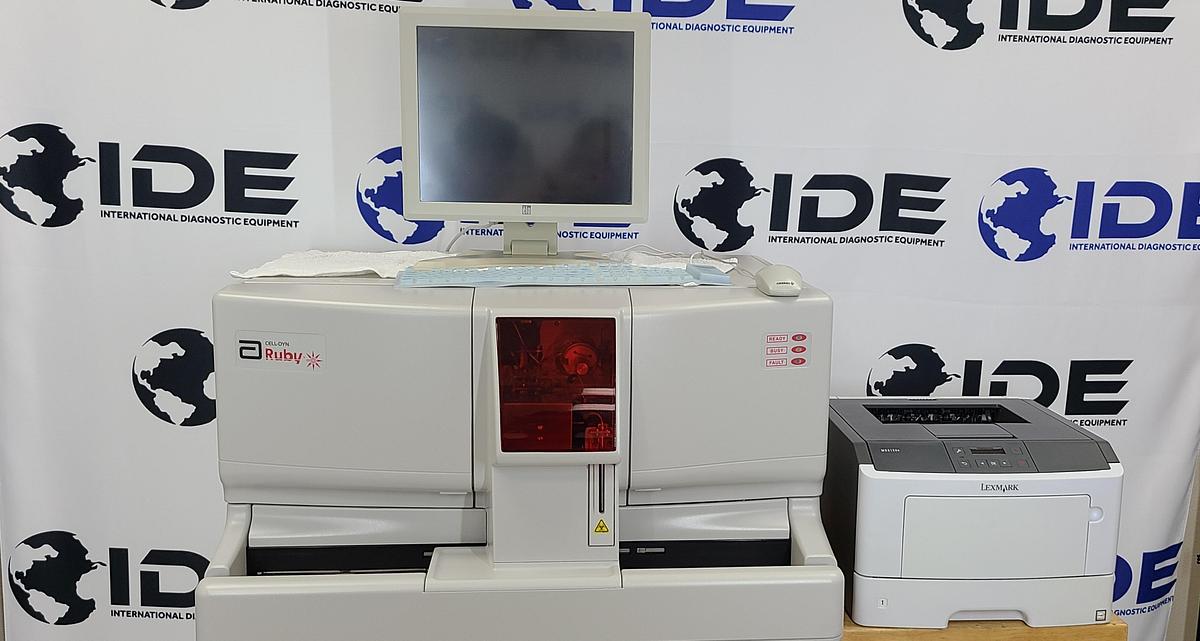

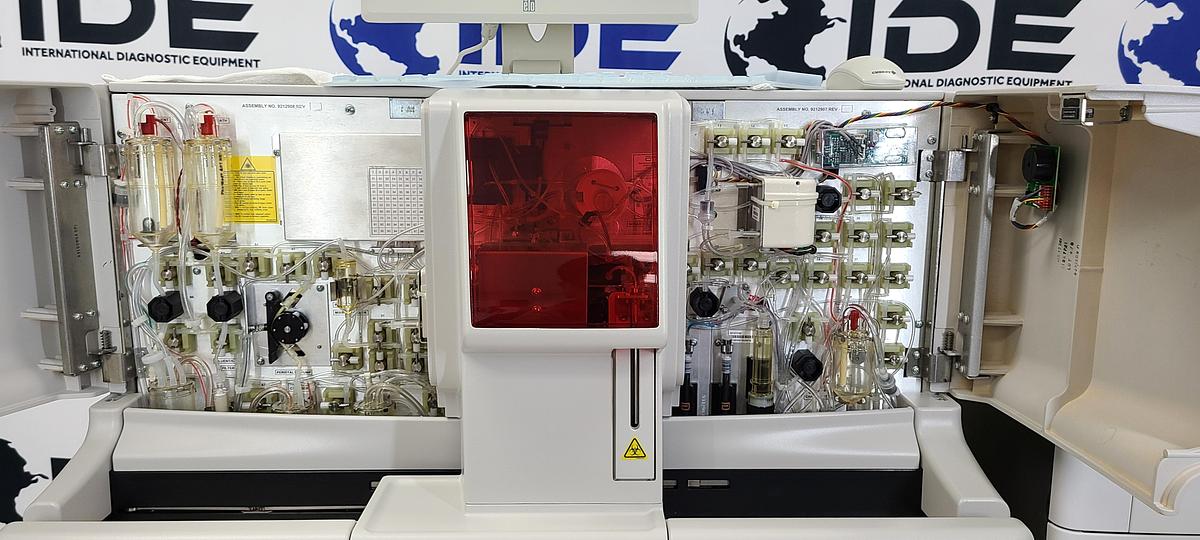

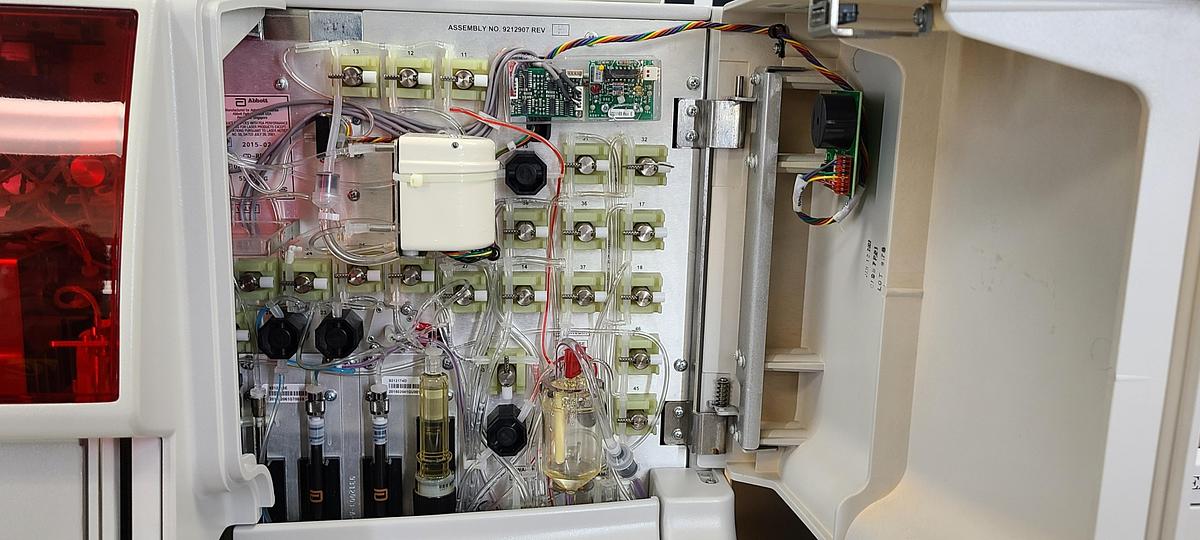

Abbott Cell Dyn Ruby - 5 Part Differential Hematology Analyzer

The Abbott Cell-Dyn Ruby Hematology System

For reliable performance that leads to quality results—the first time—CELL-DYN Ruby delivers and outperforms similar tools. With advanced capabilities for the medium-sized laboratory, you can process more in less time.

Includes:

·         Abbott Cell-Dyn Ruby

·         Pickup tubes

·         Sample Racks

·         Touch Monitor

·         Software

·         All connections

Features:

·         84 tests/hour maximum throughput

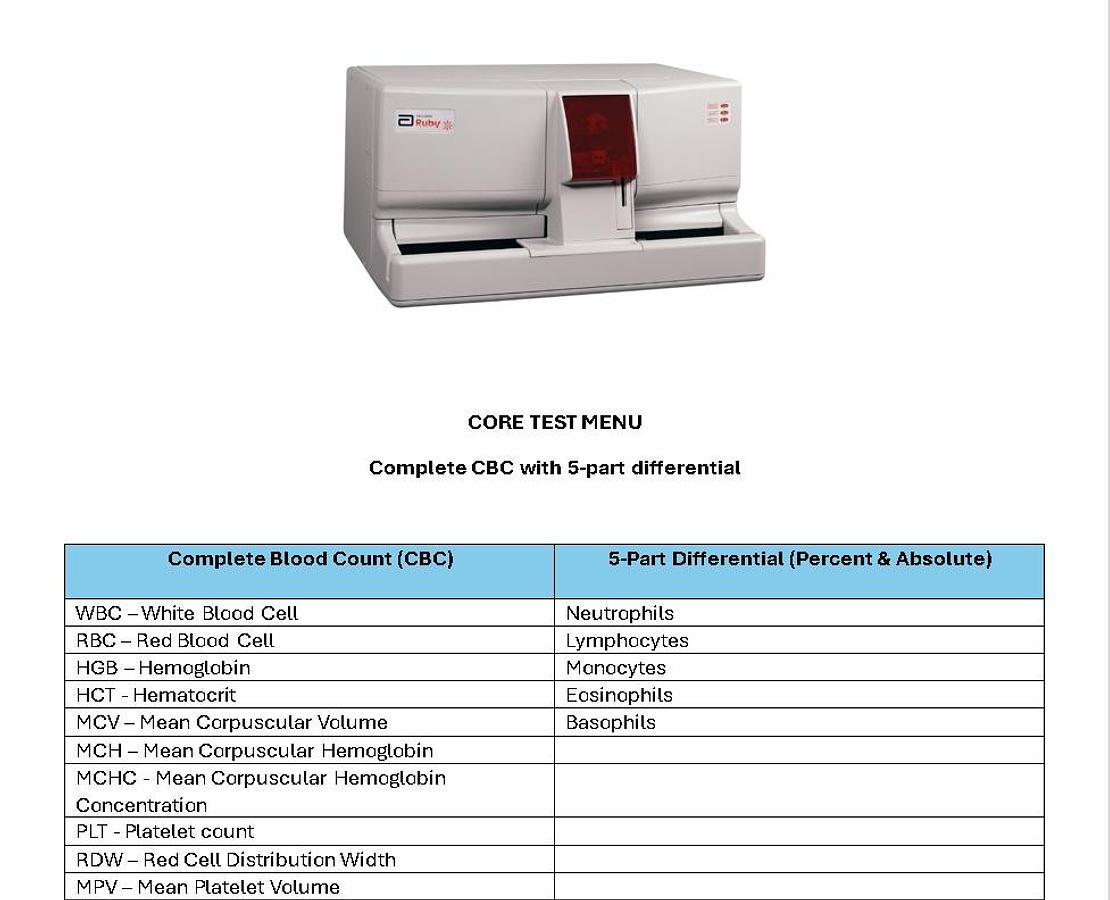

·         CBC + 5-part differential

·         Reticulocyte testing

·         4-angle optical WBC differential technology

·         Dual-angle optical platelet analysis

·         Only 4 reagents required

·         10,000-result onboard storage

·         Integrated QC and statistical tools

·         Levey-Jennings and Westgard QC

·         Rules-based result annotations

·         Color touchscreen interface

·         Automated calibration, reagent, and maintenance monitoring

·         Designed for efficient, high-volume laboratory operation

Specifications:

• Maximum Throughput: Up to 84 CBC + Differential tests/hour in Autoloader Mode
• Sample Volume:Open Mode: 150 µL
• Sample Loader: 230 µL
• Reagents: Only 4 reagents, including reticulocyte reagent
• Sample Type: Whole blood
• System Control Center: Single computer with color touch-screen monitor, keyboard, and mouse

Measurement Ranges

• WBC: 0.02–246.8 × 10³/µL
• RBC: 0.00–7.50 × 10⁶/µL
• HGB: 0.0–25.0 g/dL
• HCT: 8.3–79.8%
• MCV: 58–139 fL
• RDW: 10.0–29.8%
• PLT: 0.0–3000 × 10³/µL
• MPV: 4.3–17.2 fL
• RETC: 0.2–22.9%

Physical Specifications

• Height: 19.25 in (49.9 cm)
• Width: 34 in (86.4 cm)
• Depth: 30.25 in (76.8 cm)
• Weight: 232 lb (105.2 kg)

Electrical Specifications

• Voltage: 100–240 VAC
• Frequency: 50/60 Hz
• Maximum Power Consumption: 550 W
• Power Specifications: Analyzer only

Reagents

• WBC Lyse: 3.8 L Cubitainer
• Diluent / Sheath: 20 L Cubitainer
• CN-Free HGB / NOC Lyse: 3.8 L Cubitainer
• Reticulocyte Reagent: 5.0 mL tubes, each containing 3.7 mL reagent
