Abbott Architect i2000SR Immunoassay Analyzer

The Abbott Architect i2000SR Immunoassay Analyzer

Overview:

The Architect i2000SR immunoassay analyzer meets your laboratory’s high standards by delivering STAT results when you need them. The flexible protocols built into the Architect i2000SR enhance laboratory workflow and allow you to report results with confidence. The Architect i2000SR immunoassay analyzer offers a maximum throughput of up to 200 tests per hour. Featuring a load-up capacity of 135 samples with 35 priority and 100 routine areas, the Architect i2000SR has 25 refrigerated reagent positions.

Features:

• Pressure differential technology detects clots, bubbles, and insufficient sample volumes to reduce errors
• ChemiFlex technology with 1 step, 2 step, and automated pretreatment protocols
• 200 and 100 test kits
• Continuous sample access
• Up to 200 test per hour per module

Specifications:

• Method: CHEMIFLEX
• Maximum Throughput: Up to 200 tests/hour
• Sample Types: Serum, plasma, whole blood, and urine
• Sample Capacity: 135 samples
• Sample Volume: 10–150 µL; average 57 µL
• Sample Cups: Supported; 50 µL dead volume
• Sample Tube Dimensions:
• Height: 72–102 mm
• Diameter: 9.6–16.1 mm
• Sample Barcode Types: Code 39, Codabar, Interleaved 2 of 5, and Code 128
• Sample Result Storage: Up to 50,000 results
• Automatic Dilution: Yes
• Sample, Clot & Bubble Detection: Yes
• Sample Probe Carryover: ≤0.1 parts per million
• Reagent Capacity: 25 refrigerated positions
• Reagent Type: 100% liquid, ready-to-use
• Reagent Onboard Stability: 14–30 days
• Reagent Pressure Monitoring: Yes
• Sample Interference Measurement: No
• Calibration: Required with new reagent lot numbers, when controls are out of range, or as otherwise specified by the package insert
• System Control Center: 1 SCC with color touchscreen monitor, keyboard, and mouse
• Onboard Maintenance Records: Yes
• Online Error Code Help: Yes
• Host Interface: Bidirectional serial RS-232 interface with host query option
• Remote Diagnostics: AbbottLink
• Sample Loading: RSH

Physical Specifications

• Dimensions (H × W × D):
• 48 × 61 × 49 inches
• 121.9 × 154.9 × 124.5 cm
• Weight: 1,081 lbs (490.3 kg)
• Electrical Requirements: AC 180–264 V, 47–63 Hz
• Water Requirements: Purified water for dilution of buffer concentrate
• Heat Output: 4,280 BTU/hr in running mode

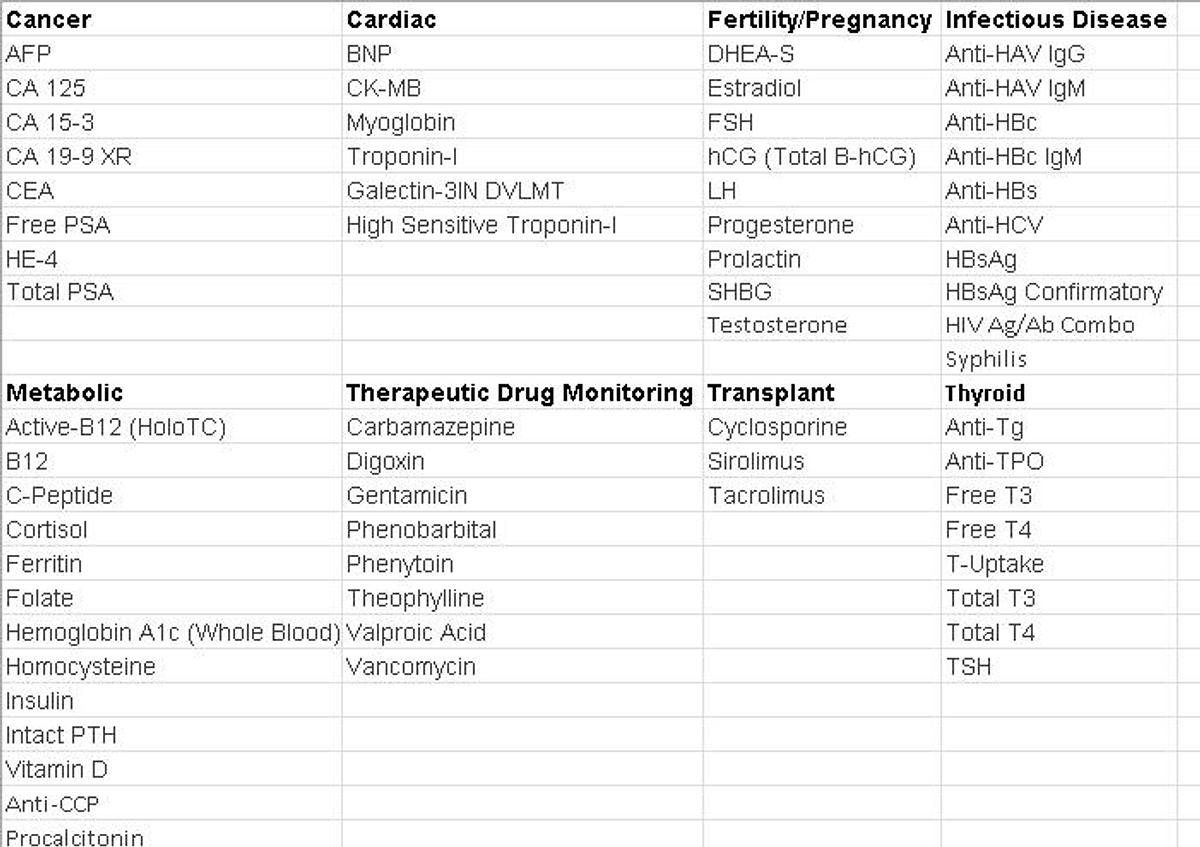

Test Menu:

Cancer

• AFP
• CA 125
• CA 15-3
• CA 19-9 XR
• CEA
• Free PSA
• HE-4
• Total PSA

Metabolic

• Active-B12 (HoloTC)
• B12
• C-Peptide
• Cortisol
• Ferritin
• Folate
• Hemoglobin A1c (Whole Blood)
• Homocysteine
• Insulin
• Intact PTH
• Vitamin D
• Anti-CCP
• Procalcitonin

Cardiac

• BNP
• CK-MB
• Myoglobin
• Troponin-I
• Galectin-3IN DVLMT
• High Sensitive Troponin-I
• Therapeutic Drug Monitoring
• Carbamazepine
• Digoxin
• Gentamicin
• Phenobarbital
• Phenytoin
• Theophylline
• Valproic Acid
• Vancomycin

Fertility/Pregnancy

• DHEA-S
• Estradiol
• FSH
• hCG (Total B-hCG)
• LH
• Progesterone
• Prolactin
• SHBG
• Testosterone

Transplant

• Cyclosporine
• Sirolimus
• Tacrolimus

Infectious Disease

• Anti-HAV IgG
• Anti-HAV IgM
• Anti-HBc
• Anti-HBc IgM
• Anti-HBs
• Anti-HCV
• HBsAg
• HBsAg Confirmatory
• HIV Ag/Ab Combo
• Syphilis
• Thyroid
• Anti-Tg
• Anti-TPO
• Free T3
• Free T4
• T-Uptake
• Total T3
• Total T4
• TSH
