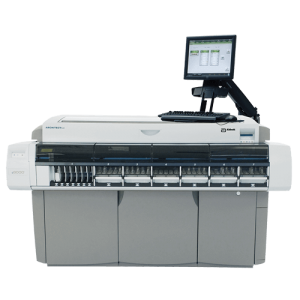

Abbott Architect c8000 Chemistry Analyzer

The Abbott Architect c8000 chemistry analyzer has a consistent STAT turnaround time, great for your laboratories needs. This unit contains a large load-up capacity and minimal sample carryover. The Architect c8000 clinical chemistry analyzer provides all these benefits to help you achieve excellent first-time results and fewer reruns. The ARCHITECT c8000 offers a maximum throughput of up to 1,200 tests per hour, featuring a load-up capacity of 215 samples with 35 priority positions, and has up to 121 refrigerated reagent positions plus Integrated Chip Technology (Na+, K+ and Cl-). With the ARCHITECT c8000, you can have speed, certainty, and confidence in your clinical results.

Additional information

Manufacturer

Specifications

Methods Photometric, Potentiometric, Turbidimetric
Maximum Throughput Up to 1,200 tests/hour
Sample Types Serum, Plasma, Whole Blood, Urine, CSF
Sample Tubes Height: 72-102 mm

Diameter: 9.6-16.1 mm

Sample Cup Yes (50 µl dead volume)
Sample Capacity 215
Sample Barcode Types Code 39, Codabar, Interleaved 2 of 5, Code 128
Sample Result Storage 50,000
Sample Volume 1.5-35 µL, Average: 7.2 µL
Automatic Dilution Yes
Sample Probe Carryover <1000 ppm WB to WB

≤0.1 ppm WB to Serum

Reagent Capacity Up to 121 refrigerated positions plus patented ISE (Na+, K+ and Cl-)
Reagent Type >97% liquid ready-to-use
Reagent Onboard Stability 5-65 days, Average: 38 days
Calibration Frequency 1-60 days, Average: 25 days
Sample, Clot and Bubble Detection Yes
Reagent Pressure Monitoring No
Sample Interference Measurement Yes: Hemolysis, Icterus, and Lipemia
System Control Center 1 SCC, with color touchscreen monitor, keyboard and mouse
Onboard Maintenance Records Yes
Online Error Code Help Yes
Host Interface Bidirectional, serial RS-232 interface, host query option available
Remote Diagnostics AbbottLink
Dimensions
(H x W x D)
48″ x 79″ x 49″

121.9 x 200.6 x 124.5 cm

Weight 1,425 lbs

646.4 kg

Electrical Requirements AC 180-264V, 47-63 Hz, 20 amp
Water Requirements Deionized water 25 liters/hour during normal operation
Heat Output* 3400 BTU/hr, running mode
Sample Loading RSH + Carousel

Test Menu

GENERAL CHEMISTRY DRUGS OF ABUSE/TOXICOLOGY ACID-BASE, ELECTROLYTE & WATER ABNORMALITIES
Acid Phosphatase Acetaminophen Ammonia
Albumin (BCG) Amphetamine/ Methamphetamine Calcium
Albumin (BCP) Barbiturates Carbon Dioxide (CO2)
Alkaline Phosphatase Benzodiazepines Ceruloplasmin
ALT (Alanine Aminotransferase) Benzodiazepines (Serum) Cl (Chloride)
ALT, Activated (Alanine Aminotransferase) Cannabinoids Iron
Ammonia Cocaine K (Potassium)
Amylase Ecstasy Lactic Acid
AST (Aspartate Aminotransferase) Ethanol Magnesium
AST, Activated (Aspartate Aminotransferase) Methadone Na (Sodium)
Calcium Opiates Phosphorus
Carbon Dioxide (CO2) PCP (Phencyclidine) UIBC
Cholesterol Propoxyphene
CK (Creatine Kinase) Salicylate
Cl (Chloride) Tricyclic Antidepressants
Creatinine
Creatinine (Enzymatic) CANCER DIABETES
Direct Bilirubin Beta2 Microglobulin Creatinine
Direct LDL Immunoglobulin A (IgA) Creatinine (Enzymatic)
GGT (Gamma-Glutamyl Transferase) Immunoglobulin E (IgE) Glucose
Glucose Immunoglobulin G (IgG) Hemoglobin A1c (Monitoring &
HDL (Ultra) Immunoglobulin M (IgM) Microalbumin (Urine)
Iron Kappa Light Chain
K (Potassium) Lambda Light Chain
Lactate Dehydrogenase (LD)
Lactic Acid BONE DISEASE ANEMIA
Lipase Alkaline Phosphatase Haptoglobin
Magnesium Calcium Iron
Na (Sodium) Magnesium Transferrin
Phosphorus Phosphorus UIBC
Protein (Urine/CSF)
Total Bilirubin
Total Protein
Triglycerides
UIBC
Urea Nitrogen
Uric Acid
