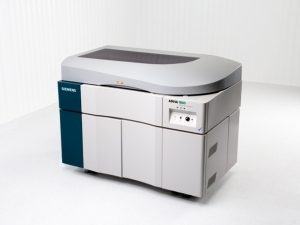

Siemens Advia 1800 Chemistry System

Contact us with any Questions.

Thank you!

Request Quote

IDE-difference

Description

The Siemens Advia 1800 Chemistry system has an extensive menu allows integration of testing for clinical chemistry, drugs-of-abuse, therapeutic drug monitoring (TDM) and specific proteins like Cystatin C and CardioPhase hsCRP. The ADVIA 1800 Clinical Chemistry System offers: Throughput of up to 1,800 tests per hour provides speed to keep pace with workload peaks . 200 basic metabolic panels per hour to meet turnaround-time demands. Large onboard reagent capacity and optional concentrated reagents to reduce interruptions. Optimal standardization of reagents and systems for efficient consumable usage. Refrigerated onboard storage of controls and reagents for extended stability and increased productivity. Automation ready design – no additional hardware required.

Additional information

Manufacturer

Specifications

  • Throughput Rate Up to 1800 tests/hour: 1200 tests/hour colorimetric, 600 tests/hour ISE
  • Assay Capacity Onboard 55 including 3 ISE
  • Sample Handling
    Sample Tubes- 5 mL, 7 mL, 10 mL tubes, 2 mL sample cups
    Sample Tray- 84 samples, positive sample identification
    Sample Rack Handler (optional)- Universal 5-position rack, 425 total onboard capacity, continuous feed capability
    Sample Integrity Check- Qualitative check for hemolysis, lipemia, and icterus
  • General Specifications
    Power Requirements 200/220/230/240 V +/– 10%, 20 A, 50/60 Hz, 3 KVA
    Water Requirements Deionized water from pressurized water (10-30 psi/169-207 KPa) Average Consumption: 30 liters per hour
    Dimensions ADVIA 1800: 44.6 (h) x 58.3 (w) x 34.5 (d) in, 113.3 (h) x 148.0 (w) x 87.6 (d) cm
    Universal Rack Handler: 37 (h) x 29 (w) x 41 (d) in, 86.4 (h) x 73.7 (w) x 104.1 (d) cm
    Weight ADVIA 1800: 1,323 lbs (600 kg)
    Universal Rack Handler: 178 lbs (81 kg)

Test Menu

General Chemistry Specific Proteins Drugs of Abuse/Toxicology Therapeutic Drug Monitoring (TDM)
Acid Phosphatase (Total & NP)2 a1- Acid Glycoprotein Acetaminophen Carbamazepine
Alanine Aminotransferase1 Antistreptolysin O Amphetamines Digoxin
Alanine Aminotransferase (P5P)1 a-1 Antitrypsin Barbiturates (Serum) Gentamicin
Albumin (BCG)1 Apolipoprotein A1 Barbiturates (Urine) Lithium
Alkaline Phosphatase (AMP)1 Apolipoprotein B Benzodiazepines (Serum) Phenobarbital
Alkaline Phosphatase (DEA)5 β2 Microglobulin Benzodiazepines (Urine) Phenytoin
Ammonia Complement 3 (C3) Cannabinoids (THC) Theophylline
Amylase Complement 4 (C4) Cocaine Metabolite Tobramycin
Aspartate Aminotransferase1 C-Reactive Protein (CRP) Ecstasy Valproic Acid
Aspartate Aminotransferase (P5P)1 CRP, Wide Range (wr-CRP) Ethyl Alcohol Vancomycin
Bilirubin, Direct CardioPhase hsCRP Methadone
Bilirubin, Total Cystatin C Methadone Metabolites, EDPP
Calcium (Arsenazo)1 Ferritin Opiates
Calcium (CPC)1 Haptoglobin Phencyclidine
Carbon Dioxide, Enzymatic1 Immunoglobulin A (IgA) Propoxyphene
Chloride (ISE) Immunoglobulin G (IgG) Salicylate
Cholesterol1 Immunoglobulin M (IgM) Tricyclic Antidepressants
Cholinesterase Lipoprotein(a) Creatinine Specimen Validity Test3
Creatine Kinase Microalbumin Nitrite Specimen Validity Test3
Creatinine (Jaffé)1 Myoglobin Oxidant Specimen Validity Test3
Creatinine (Enzymatic) Prealbumin pH Specimen Validity Test3
Fructosamine4 Rheumatoid Factor (RF) Specific Gravity Specimen Validity Test3
Gamma-Glutamyltransferase (GGT) Transferrin
Glucose Hexokinase1
Glucose Oxidase1
Hemoglobin A1c (automated or manual sample pre-treatment)
HDL Cholesterol
Iron
Lactate
Lactate Dehydrogenase (L-P)
Lactate Dehydrogenase (P-L)
LDL Cholesterol
Lipase
Magnesium1
Pancreatic Amylase
Phosphorus, Inorganic1
Potassium (ISE)
Sodium (ISE)
Total Iron Binding Capacity (TIBC)
Total Protein1
Total Protein (Urine/CSF)
Triglycerides1
Urea Nitrogen1
Uric Acid1
