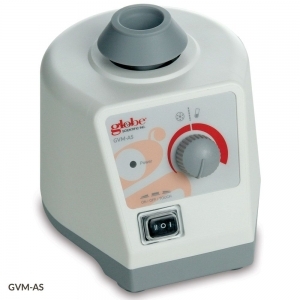

Vortex Mixer GVM-AS

Category:

Description

The GVM-AS Variable Speed Vortex Mixer is the best choice for vortex mixing in your lab. Speed adjustment between 100 – 2500rpm is as easy as rotating the analog dial. A slight press on the top cup quickly and efficiently vortexes virtually any tube. Continuous run function and available adapters allow for simultaneous mixing of multiple samples. A heavy-duty cast aluminum base and suction cup feet make the GVM-AS extremely stable despite its compact footprint.

Features:

  • Touch operation or continuous mode
  • Variable speed control from 0 to 2500rpm
  • Suitable for various tube types and mixing applications with optional adapters
  • Specially designed vacuum suction feet for stability
  • Robust cast aluminum construction
  • Small footprint
  • Rubber suction feet ensure placement and mitigate vibration
  • Wide variety of accessories for virtually every tube used in your lab
  • Spill resistant chassis

Specifications

Specifications GVM-AS
Voltage 110-120V/220-230V, 50/60Hz
Power 60W
Mixing Motion Orbital
Orbital Diameter 4mm
Motor Type Shaded pole motor
Motor Rating Input 58W
Motor Rating Output 10W
Speed Range 0 to 2500rpm
Speed Display Scale
Run Type Touch operation or continuous
Dimensions (W x D x H) 127 x 130 x 160mm (5 x 5.1 x 6.3″)
Weight 3.5 Kg (7.7 lbs)
Operating Temperature 5 to 40°C
Permissible Relative Humidity 80% RH (non-condensing)
Protection Class IP21
Warranty 2 Years
