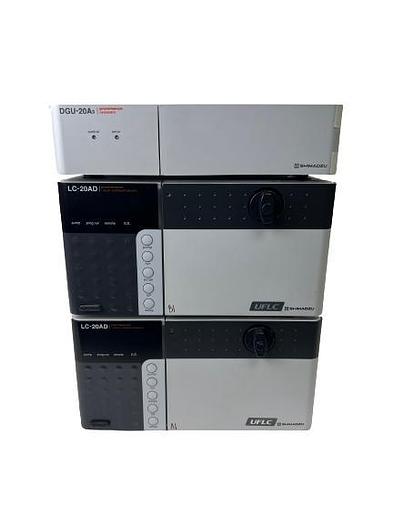

Shimadzu Prominence Modular HPLC
Shimadzu Prominence Modular HPLC
$11,997
or
Call 951.296.1266
Description
Shimadzu Prominence Modular HPLC
Includes:
Features/Benefits
Prominence is a network-ready HPLC system that meets the demands of today’s advanced users. Prominence features the world’s first Web control, fastest sample injection, and highest detection sensitivity performance functions that surpass current HPLC technology. The Shimadzu prominence offers high speed injection times at only 10 seconds (for 10uL injection) per sample injection. This system offers Self Diagnosis (Expert Function), Validation, System control using a web browser, and is fully automated.
Specifications: Shimadzu DGU-20A3 Prominence Degasser Shimadzu LC-20AD Prominence HPLC Pump
Specifications
| Manufacturer | Shimadzu |
| Condition | New |
| Number of Flow Lines | 3 |
| Degassing Performance | UV absorption difference with and without degasser is over 300 mAU (using UV absorption detector, wavelength 210 nm, sensitivity 0.5 AU, flowing Methanol saturated with dissolved oxygen (HPLC grade) at 25°C with 1 ml/min) |
| Operating Flow Rate | 20 mL/min per flow line (using deionized water –applicable range varies depending on the solvent being delivered). |
| Pressure Resistance | 98 kPa (1 kgf/cm2) or less Only when suctioning with the delivery unit. Pressurized delivery to the degasser is prohibited.) |
| Internal Capacity | 380 µL per flow line |
| Materials Contacting Solvents | Special synthetic polymers designed for all solvents (degassing membrane), PEEK (connector joints) |
| External Output | When system self-diagnostics detects an abnormality, a signal is output to the external terminal (ALARM) |
| Self-cleaning | Includes mechanism that extends vacuum pump life by drawing in air when the vacuum pump is running |
| Tubing | 3 mm O.D. x 1.5 mm I.D. PTFE tubing |
| Dimensions | 25″ W x 16.55 x 2.85″ H (26 x 42 x 7.2 cm) |
| Weight | 11 lbs. (5 kg) |
| Operating Conditions | 4 – 35°C, 20 – 85% humidity |
| Power supply | +24 V (powered via connection by remote cable to delivery unit) |
| Solvent delivery method | Parallel-type |
| Plunger capacity | 10µL |
| Maximum discharge pressure | 40MPa |
| Flow-rate setting range | 0.0001 to 10.0000 mL/min. |
| Pulsation | 0.1 MPa (for water at 1.0 mL/min. and 7MPa) |
| Constant-pressure solvent delivery | Supported |
| Operating temperature range | 4C to 35C |
| Dimensions, weight | 260 (W) x 140 (H) x 420 (D) mm, 10 kg |
| Power requirements | 100 VAC, 150 VA, 50/60 Hz |
