Beckman Coulter / Olympus AU 480 Chemistry Analyzer
Beckman Coulter / Olympus AU 480 Chemistry Analyzer
Contact us for price
Description
The AU480 chemistry analyzer is an ideal main analyzer for small- to medium-sized laboratories and hospitals. It offers a throughput of up to 800 tests per hour with ISE and supports simultaneous programming for up to 63 different analytes. The AU480 can also function as a special chemistry or STAT analyzer in any laboratory.
Key Advantages
Robust Testing Capabilities
- Access over 120 Beckman Coulter reagent applications.
- Perform priority testing quickly with the STAT wheel.
- Turn around critical samples efficiently using sample pre-dilution and auto-repeat for over-range results.
Efficient Reagent and Consumable Use
- Minimize hands-on time with ready-to-use liquid concentrated reagents.
- Reduce total cost of ownership with low consumable requirements.
Convenient Operational Features
- Operator support via context-sensitive help screens and instructional videos.
- User-friendly interface with touch-screen monitor.
- Standardized processes reduce tech-to-tech variation and ensure consistent results.
Features
Robust Testing Capabilities
- Over 120 reagent applications available.
- STAT wheel for rapid priority testing.
- Sample pre-dilution and auto-repeat of over-range results.
Efficient Reagent and Consumable Use
- Ready-to-use liquid concentrated reagents reduce daily inventory tasks.
- Lower consumable requirements reduce overall cost.
Convenient Operational Features
- Context-sensitive help screens and instructional videos for operator guidance.
- Intuitive graphical user interface with touch-screen monitor.
- Standardized AU chemistry analyzer processes ensure consistent, reliable results.

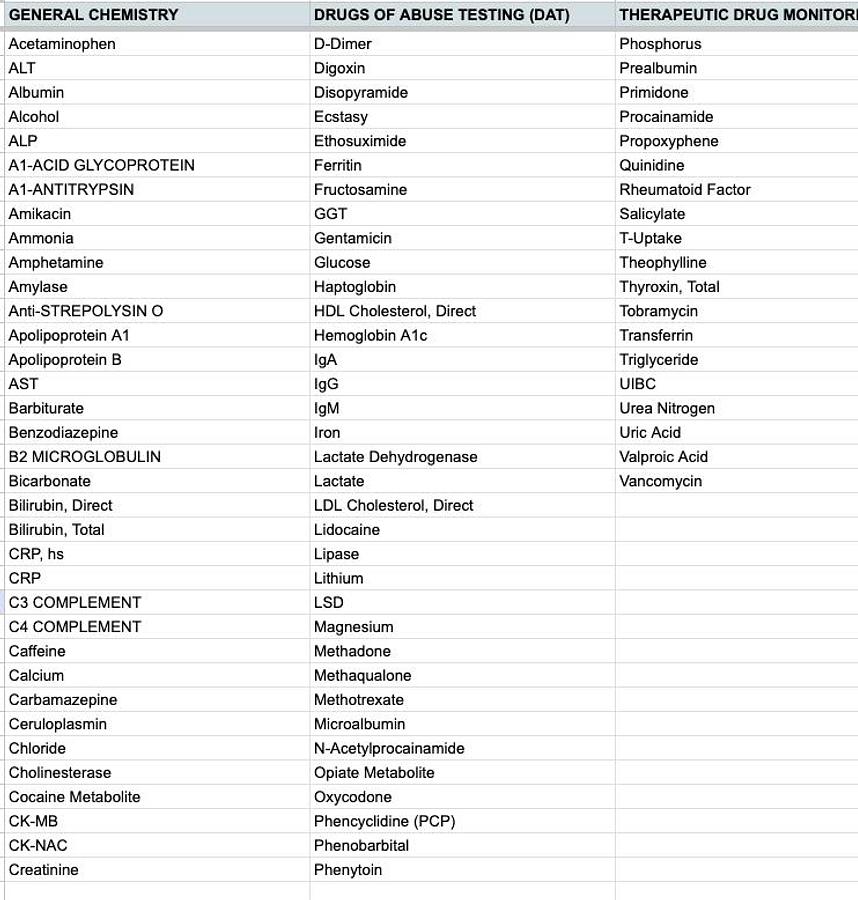

GENERAL CHEMISTRY
Acetaminophen
ALT
Albumin
Alcohol
ALP
A1-ACID GLYCOPROTEIN
A1-ANTITRYPSIN
Amikacin
Ammonia
Amphetamine
Amylase
Anti-STREPOLYSIN O
Apolipoprotein A1
Apolipoprotein B
AST
Barbiturate
Benzodiazepine
B2 MICROGLOBULIN
Bicarbonate
Bilirubin, Direct
Bilirubin, Total
CRP, hs
CRP
C3 COMPLEMENT
C4 COMPLEMENT
Caffeine
Calcium
Carbamazepine
Ceruloplasmin
Chloride
Cholinesterase
Cocaine Metabolite
CK-MB
CK-NAC
Creatinine
DRUGS OF ABUSE TESTING (DAT)
D-Dimer
Digoxin
Disopyramide
Ecstasy
Ethosuximide
Ferritin
Fructosamine
GGT
Gentamicin
Glucose
Haptoglobin
HDL Cholesterol, Direct
Hemoglobin A1c
IgA
IgG
IgM
Iron
Lactate Dehydrogenase
Lactate
LDL Cholesterol, Direct
Lidocaine
Lipase
Lithium
LSD
Magnesium
Methadone
Methaqualone
Methotrexate
Microalbumin
N-Acetylprocainamide
Opiate Metabolite
Oxycodone
Phencyclidine (PCP)
Phenobarbital
Phenytoin
THERAPEUTIC DRUG MONITORING (TDM)
Phosphorus
Prealbumin
Primidone
Procainamide
Propoxyphene
Quinidine
Rheumatoid Factor
Salicylate
T-Uptake
Theophylline
Thyroxin, Total
Tobramycin
Transferrin
Triglyceride
UIBC
Urea Nitrogen
Uric Acid
Valproic Acid
Vancomycin
Specifications
| Manufacturer | Beckman Coulter, Olympus |
| Condition | New |
| Stock Number | 262 |
| Analytical Principle | Spectrophotometry and potentiometry |
| Analytical Types | Endpoint, rate, fixed point and indirect ISE |
| Analytical Methods | Colorimetry, turbidimetry, latex agglutination, homogeneous EIA, indirect ISE |
| Simultaneously Processed Analytes | 60 photometric tests + 3 ISE, 120 pre-programmed onboard tests |
| Throughput | 400 photometric tests/hour; maximum of 800 with ISE |
| ISE Throughput | 200 samples/hr. Maximum tests/hr: 600 if ISE only |
| Sample Feeder | Racks with 10 samples each (barcodes on primary tubes and on racks); capacity of 80 samples; continuous loading |
| Sample Tubes | Primary and secondary tubes; diameter from 11.5 to 16 mm; height from 55 to 102 mm, nestled micro sample cups |
| STAT samples | Up to 22 positions for STAT samples via cooled turntable. Easy-to-operate interrupts between tests. Auto-repeat run capability. |
| Reagent Capacity | 76 positions for (R1+R2, detergent position). Holds 15, 30 and 60ml bottles. |
| Sample Types | Serum, plasma, urine, other |
| Reagent Volume | R1: 10–250 μl; R2: 10–250 μl (in 1 μl increment) |
| Photometry System | Direct assay through the reaction cuvette (0–3.0 OD) mono and bichromatic measurements possible |
| Sample Volume | 1–25 μl in 0.1 μl steps (1-25 μl for repeats) |
| Calibration | Auto calibration, cooled calibrator positions; master calibration established by two-dimensional barcode |
| Sample Pre-dilution | Dilution ratio: Fixed to 3, 5, 10, 15, 20, 25, 50, 76 or 100 |
| Test Requisition | Individual and profile test requisition via online, mouse, function keys and touch-screen |
| Sample Integrity | Lipaemia, Haemolysis and Icterus analysis. Sample clot detection and probe crash protection. |
| Online | RS232C. Full uni- and bidirectional communication possible. |
| Reagent Storage | Refrigerated (4–12°C) |
| Data Storage | Sample number 100,000 samples. Reaction Data 200,000 tests. |
| Dimensions (W x H x D) | ANL: 1,450 x 1,205 x 760 |
| Total Reaction Volume | 90–350 μl |
| Reaction Cuvette | Permanent glass cuvettes |
| Reaction Time | Up to 8 minutes, 37.5 seconds |
| Reaction Incubation | 37°C, dry bath |
| Wavelength | 13 different wavelengths between 340–800 nm |
| Quality Control | Auto QC, cooled QC positions |
| Rerun | 1. Auto rerun and manual rerun available |
| Software | Windows 7® |
| Power Supply | 100–240v; 60 Hz/ < 3.5 kVA |
| Analytical System | Fully automated, random access chemistry system with STAT capability |
