Variable Speed Analog Tube Roller GTR-AVS

Category:

Description

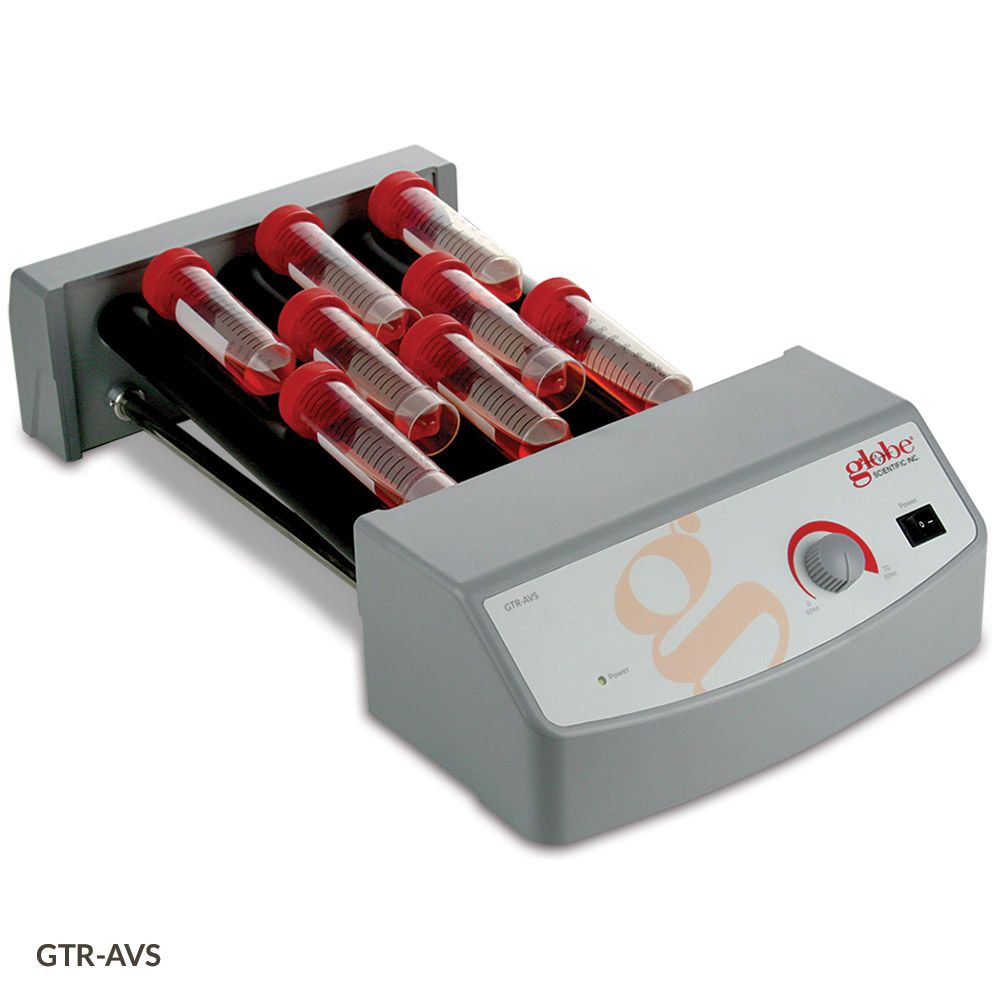

Analog Tube Roller

The Globe Scientific GTR-AVS was designed for gently mixing a wide range of tubes, containers and bottles. The analog dial can be set anywhere between 10 rpm and 70rpm. In addition to a rolling motion, the rollers are mounted slightly off center to rise and fall in a “see-saw” fashion. These two motions ensure your samples are thoroughly mixed for optimal homogeneity. The six (6) rollers can accommodate up to 8.8 lbs or ten (10) 15/50mL centrifuge tubes.


Features:

  • Speed Range of 0-70rpm
  • Six (6) roller design for gentle sample agitation and ease of cleaning
  • Cold room and incubator compatible
  • DC brushless motor is quiet and maintenance free

Additional information

Manufacturer

Specifications

Specifications

GTR-AVS

Amplitude

24mm

Motor Type

DC Motor

Max. Load Capacity

4 Kg (8.8lbs)

Number of Rollers

6

Roller Size (Length)

280mm (11″)

Speed Range

0 – 70rpm

Operation Mode

Continuous

Voltage

100-240V, 50/60Hz

Power

25W

Dimensions (W x D x H)

260 x 450 x 120mm (10.2 x 17.7 x 4.7″)

Weight

4.5 Kg (9.9 lbs)

Operating Temperature

5 to 40°C

Permissible Relative Humidity

80% RH (non-condensing)

Protection Class

IP21

Warranty

2 Years
