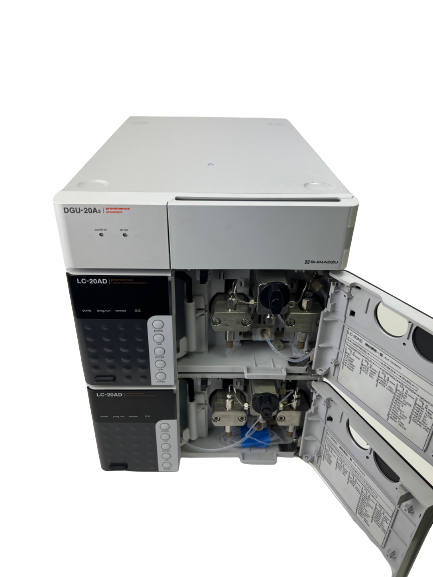

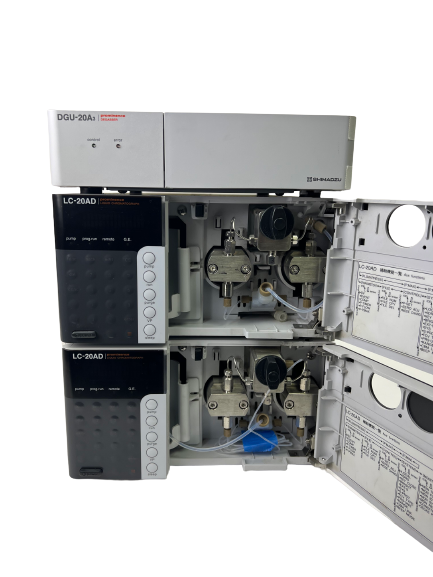

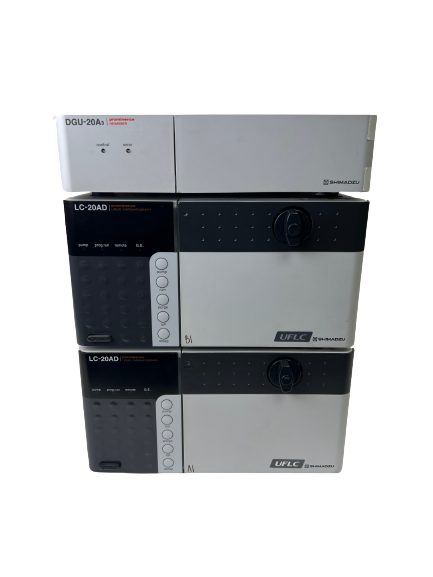

Shimadzu Prominence Modular HPLC

$11,997.00

Description

Shimadzu Prominence Modular HPLC



Includes:



  • One DGU-20A3 Prominence Degasser



  • Two LC-20AD Prominence Liquid Chromatograph







Additional information

Manufacturer

Specifications

Specifications:



Shimadzu DGU-20A3 Prominence Degasser

  • Number of Flow Lines: 3
  • Degassing Performance: UV absorption difference with and without degasser is over 300 mAU (using UV absorption detector, wavelength 210 nm, sensitivity 0.5 AU, flowing Methanol saturated with dissolved oxygen (HPLC grade) at 25°C with 1 ml/min)
  • Operating Flow Rate: 20 mL/min per flow line (using deionized water –applicable range varies depending on the solvent being delivered).
  • Internal Capacity: 380 µL per flow line
  • Pressure Resistance: 98 kPa (1 kgf/cm2) or less Only when suctioning with the delivery unit. Pressurized delivery to the degasser is prohibited.)
  • Tubing: 3 mm O.D. x 1.5 mm I.D. PTFE tubing
  • Materials Contacting Solvents: Special synthetic polymers designed for all solvents (degassing membrane), PEEK (connector joints)
  • External Output: When system self-diagnostics detects an abnormality, a signal is output to the external terminal (ALARM)
  • Self-cleaning: Includes mechanism that extends vacuum pump life by drawing in air when the vacuum pump is running
  • Dimensions: 25″ W x 16.55 x 2.85″ H (26 x 42 x 7.2 cm)
  • Weight: 11 lbs. (5 kg)
  • Operating Conditions: 4 – 35°C, 20 – 85% humidity
  • Power supply: +24 V (powered via connection by remote cable to delivery unit)





Shimadzu LC-20AD Prominence HPLC Pump

  • Solvent delivery method: Parallel-type
  • Plunger capacity: 10µL
  • Maximum discharge pressure: 40MPa
  • Flow-rate setting range: 0.0001 to 10.0000 mL/min.
  • Pulsation: 0.1 MPa (for water at 1.0 mL/min. and 7MPa)
  • Constant-pressure solvent delivery: Supported
  • Operating temperature range: 4C to 35C
  • Dimensions, weight: 260 (W) x 140 (H) x 420 (D) mm, 10 kg
  • Power requirements: 100 VAC, 150 VA, 50/60 Hz



Features/Benefits

Prominence is a network-ready HPLC system that meets the demands of today’s advanced users. Prominence features the world’s first Web control, fastest sample injection, and highest detection sensitivity performance functions that surpass current HPLC technology. The Shimadzu prominence offers high speed injection times at only 10 seconds (for 10uL injection) per sample injection. This system offers Self Diagnosis (Expert Function), Validation, System control using a web browser, and is fully automated.
