Description

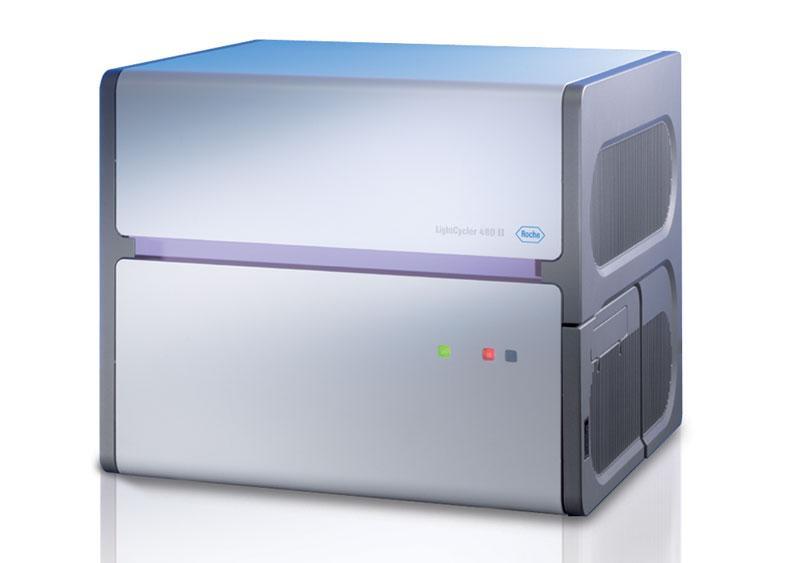

Roche LightCycler 480 || Real Time PCR Benchtop System



Includes: One Roche Light Cycler and Accessories.



The LightCycler® 480 System is a proven high-performance, medium-to high-throughput PCR platform that provides various methods for gene detection, gene expression analysis, genetic variation analysis, and array data validation. Benefit from cutting-edge thermal block and optical technology that leads to excellent well-to-well homogeneity and maximized detection sensitivity. Generate meaningful results via the state-of-the-art data analysis methods, in line with MIQE guidelines, and analyze true raw data without the need for passive reference dyes or normalization plates.

The ideal combination of speed, accuracy and versatility

The LightCycler® 480 System features a versatile, plate-based, real-time PCR device that supports mono- or multicolor applications. The benchtop instrument is easily customizable to meet changing user requirements, and can be integrated into everyday use as an automated high-throughput solution.



Additional information

Weight 121 lbs
Dimensions 21 × 20 × 23 in
Manufacturer

Features/Benefits

Features:

Rely on the LightCycler® 480 System to perform:

Gene Quantification

Gene detection

Absolute quantification

Relative quantification/gene expression analysis

Genetic Variation Analysis

Melt-curve genotyping with HybProbe- or SimpleProbe probes

Endpoint genotyping with hydrolysis probes

Gene Scanning or Methylation analysis with High Resolution Melting (HRM)

Multiple Plate Analysis

96-or 384-well plates

Fast, highly sensitive, and reproducible results for qualitative and quantitative detection of nucleic acids, mutation scanning, and SNP analysis

Basic and advanced methods for gene expression and genotyping based on endpoint analysis or melting curves

Wide range of probe formats and fluorescent dyes

White or clear multiwell plates to best fit your assay format, application, and workflow



Specifications

Dimensions W x D x H: 24 in x 24 in x 21.5 in (57.4 cm x 58.8 cm x 49.7 cm)
Weight 121 lb (55.6 kg)
Power consumption 200–240 Vac (50/60 Hz, 1500 VA)
Reaction volumes 5 μL–20 μL (384-well)

10 μL–100 μL (96-well)

Temperature control Peltier-based heating/cooling from 37°C–95°C (20° starting temperature to perform specific melting curve analyses)
Heating rate 96-well block: 4.4°C/s

384-well block: 4.8°C/s

Cooling rate 96-well block: 2.2°C/s

384-well block: 2.5°C/s

Excitation LightCycler® 480 LED Lamp (430-630 nm)
Detector Cooled monochrome CCD camera
Filters Excitation (nm): 440, 465, 498, 533, 618

Detection (nm): 488, 510, 580, 610, 640, 660

Computer Pentium PC with Windows 7

Test Menu

Gastro Parasite Panel Gastro Virus Panel Gastro Bacteria Panel Respiratory Influenza Panel
Giardia2 Novovirus GG12 Aeromonas2 Influenza A2
Dientamoeba fragilis2 Novovirus GG22 Yersinia enterocolitica2 Influenza B2
Cryptosporidium spp2 Sapovirus1,2 Campylobacter2 Influenza A H1 (H1N1)1,2
Blastocystis2 Rotavirus2 Shigella/EIEC2 Influenza A H31
Entamoeba histolitica2 Adenovirus1,2 Salmonella2 Influenza A H51
Emerging Pathogens Panel Astrovirus1,2 Plesiomonas1 Influenza A H7 (H7N9)1
Zika Virus2 Enterovirus1 Influenza A H91
Respiratory Virus Panel Respiratory Coronavirus Panel Carbapenemase Panel Respiratory Atypical pneumonia Panel
RSV1,2 Sarbecovirus SARS-CoV-22 KPC2 Pneumocystis jirovecii1
ParaInfluenza 11,2 SARS-CoV-2 (COVID 19) N-gene1 OXA-232 Mycoplasma pneumoniae1
ParaInfluenza 21,2 SARS-CoV-2 (COVID 19) E-gene1 GES1,2 Chlamydophila psittaci1
ParaInfluenza 31,2 SARS-CoV-2 (COVID 19) RdRP-gene1 VIM2 Chlamydia pneumoniae1
ParaInfluenza 41,2 MERS Coronavirus UpE1 NDM2 Legionella pneumophila1
Enterovirus1,2 MERS Coronavirus Orf1a1 OXA-482 Legionella spp/pn1
Bocavirus1,2 Coronavirus HKU11 IMP1,2
Parechovirus2 Coronavirus OC431 EHEC Panel New Born Panel
Metapneumovirus1,2 Coronavirus 229E1 STX1-EHEC1 TREC1
Adenovirus1,2 Coronavirus NL631 STX2-EHEC1 KREC1
Picornavirus1,2 panCoronavirus1 EAE-EHEC1
Rhinovirus1 Bordetella pertussis1 Non-Culturable Panel Filovirus Panel
Bordetella parapertussis1 T. whipplei1 Ebola Zaire1
Tropical Panel Bacterial Meningitis Panel Resistance Panel
Zika1,2 Escherichia coli uidA1 MCR-12
Dengue1 Listeria monocytogenes1 Mycoplasma Macrolide1
Chikungunya1 Streptococcus pneumoniae1
Plasmodium genus1 Neisseria meningitidis1
Streptococcus agalactiae1
Haemophilus influenzae1
