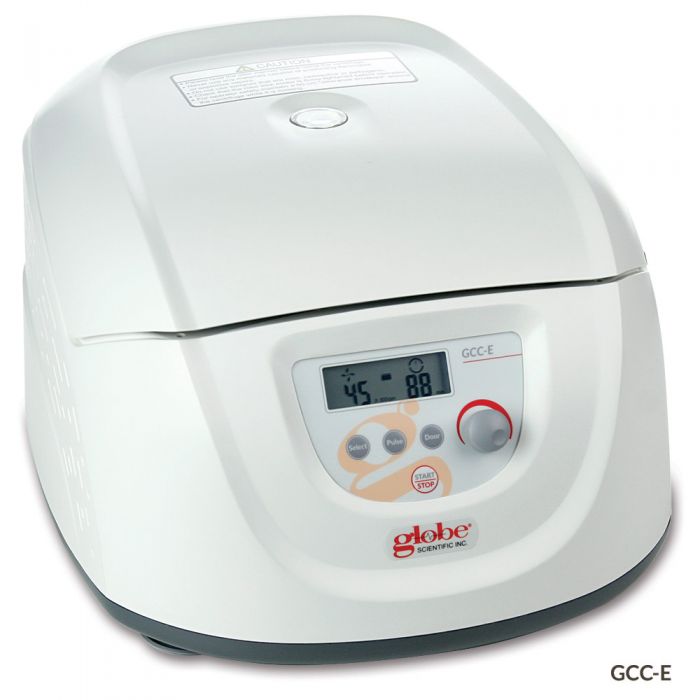

Enhanced Clinical Centrifuge GCC-E

  • Speed / RCF set point
  • Pulse function
  • Audible alert function
Request Quote
Category: Tag:

Description

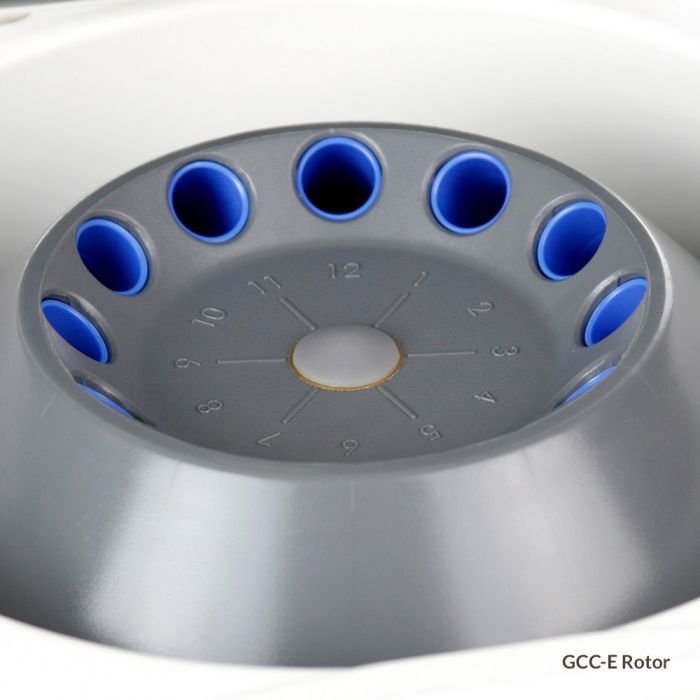

Building on the solid platform of Globe Scientifics’ standard clinical centrifuge, the GCC-E adds an enhanced user interface with it’s easy to read backlit LCD display, high accuracy and automated self-diagnosis on startup. The GCC-E is suitable for numerous clinical and research applications and includes a twelve (12) position rotor that accommodates 5mL, 7mL or 10mL culture or blood collection tubes and up to eight (8) 15mL tubes. All adapters are included

The GCC-E clinical centrifuge is compatible with most PRP methods.

Programming allows for setting by either speed or G-force. A quick spin function enables easy spin downs when a timed program isn’t necessary. The added safety of an electric locked lid ensures users don’t open the lid too soon after protocol is completed.

Features:



  • Simple programming for ease of use

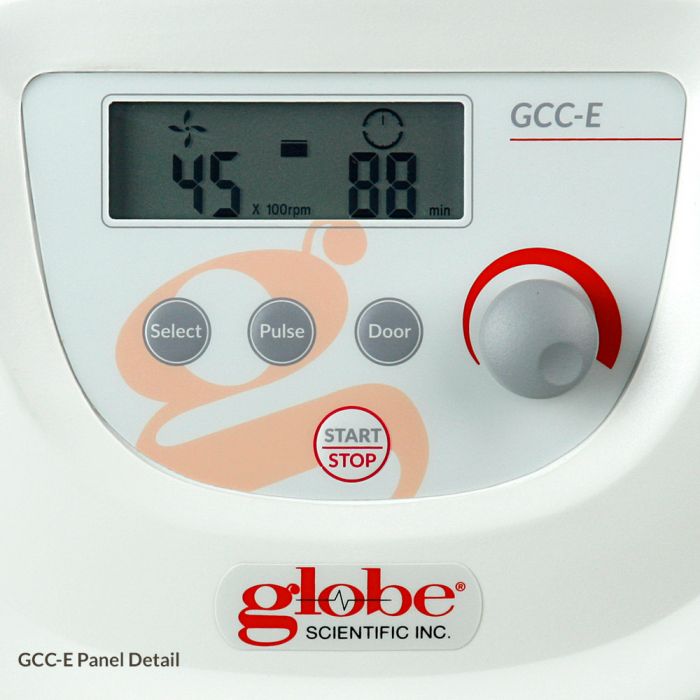

  • Intuitive menus with highly legible LCD display
  • Rotor speed can be set by RPM or G-force
  • Maintenance free motor
  • Quick spin function (pulse button)

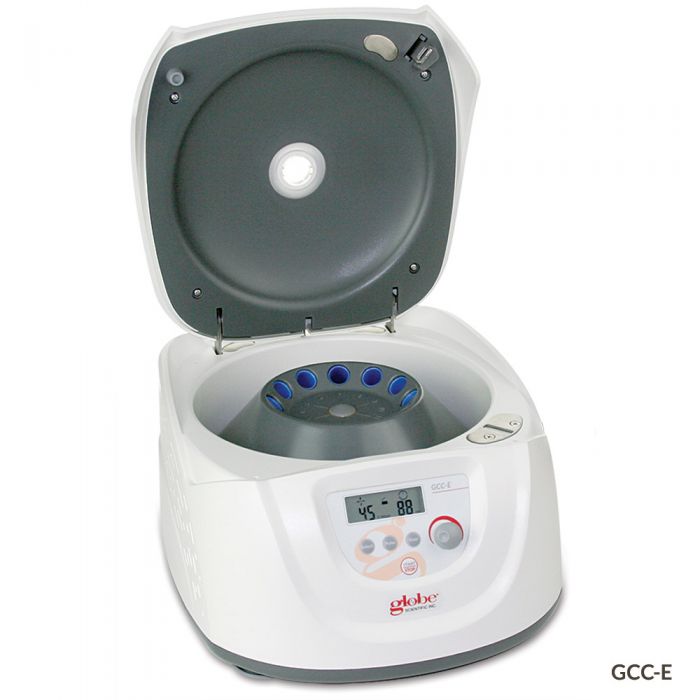

  • Electronic locking safety lid with automatic release
  • Automatic self-diagnostics on startup (shows accumulative run time and retains last set parameters)
  • Quick acceleration and deceleration
  • All adaptor sleeves and risers included
  • Audible alert function



Advanced Features:



  • Speed / RCF set point
  • Pulse function
  • Audible alert function



Safety Features:



  • Door interlock
  • Excessive speed detection
  • Automatic self-diagnosis

Specifications

Specification GCC-E
Speed 300-4500 rpm in 100rpm increments
Maximum RCF 2490 x G
Speed Accurcy +/- 20 rpm
Rotor Capacity Twelve (12) 5m7mL/10mL tubes or Eight (8) 15mL tubes
Run Time 30 sec – 99 min or continuous
Power 3A, 70W
Display LCD
Acceleration Time 20 seconds
Braking Time 13 seconds
Dimension (WxDxH) 301 x 354 x 217mm (11.9 x 13.9 x 8.5″)
Weight 6 Kg (13.2 lbs)
Certifications CE, UL, IVD
Warranty 2 Years
