Awareness Technology Stat Fax 4200 Stand-alone ELISA microplate reader

Category:

Description

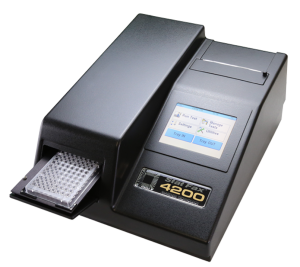

Awareness Technology Stat Fax 4200 Stand-alone ELISA microplate reader

The Stat Fax 4200 is a compact, standalone, 8-channel microplate reader. Its streamlined design offers touch screen interface, rapid reading, superb optics, on-board curve-fitting software, and built-in printer to meet the requirements of modern laboratories.



  • Measures Absorbance of 96 wells in approximately 10 seconds
  • Easy to use with touch-screen display and built in printer
  • Selectable plate formatting will read trays containing microwell strips
  • Monochromatic or bichromatic reading
  • Uses standard microwell plates for all reactions
  • open system
  • Four filter model (405 nm – 630 nm)
  • Optional 6 filter VIS model (405 nm – 630 nm)
  • On board data reduction calculations include single- and multi-point curve fitting, including regressions, plus cutoff absorbance calculations, all with step-by-step user prompting.
  • User-programmable open system.
  • user-programmable plate formatting.
  • Fully automatic reading.
  • Reads 96 wells in about 12 seconds.
  • Built-in thermal printer with graphics capability.
  • Interactive touch-screen LCD with USB mouse option.
  • Bichromatic optics
  • Standard model includes four filters.
  • Six-filter models are available.
  • Long-life IAD filters.

Additional information

Manufacturer

Specifications


Photometric accuracy ± 1%
Stability Drift of no more than 0.005 A in 8 hours
Display Interactive touch-screen LCD
Printer Thermal dot matric, 20 characters per line plus graphics
Interface USB mouse
Microprocessor eZ80
Plate transport Stepper motor
Calculation modes Single point calibration, point-to-point curve fit, polynomial regression,
linear and sigmoidal regression (log and linear), cutoff absorbance, multipoint % absorbance
Additional features User-programmable open system, selectable plate formatting, alphanumeric test naming,
automatic interpretation options, duplicate well options, curve plotting and editing,
flags and error messages
Bandwidth 10 nm
Detection Mode Absorbance
Filters IAD hardcoat interference, 10 nm half bandpass, from 405 to 700 nm
Lighting Remote halogen lamp source with lamp saver feature
Photometric Range -0.20 to 4.0 Absorbance units (A)
Sample Formats Standard 96-well microtiter plates or strip trays
Scanning Speed Reads absorbances of 96 wells in about 10 seconds
Dimensions (H x W x D) 7.5 in. x 13 in. x 16.5 in.
Power Requirements 115 V or 230 V AC, 50-60 HZ (auto-sensing)
Weight 15 lbs
Enclosure Painted flame-retardant ABS plastic cover and base
