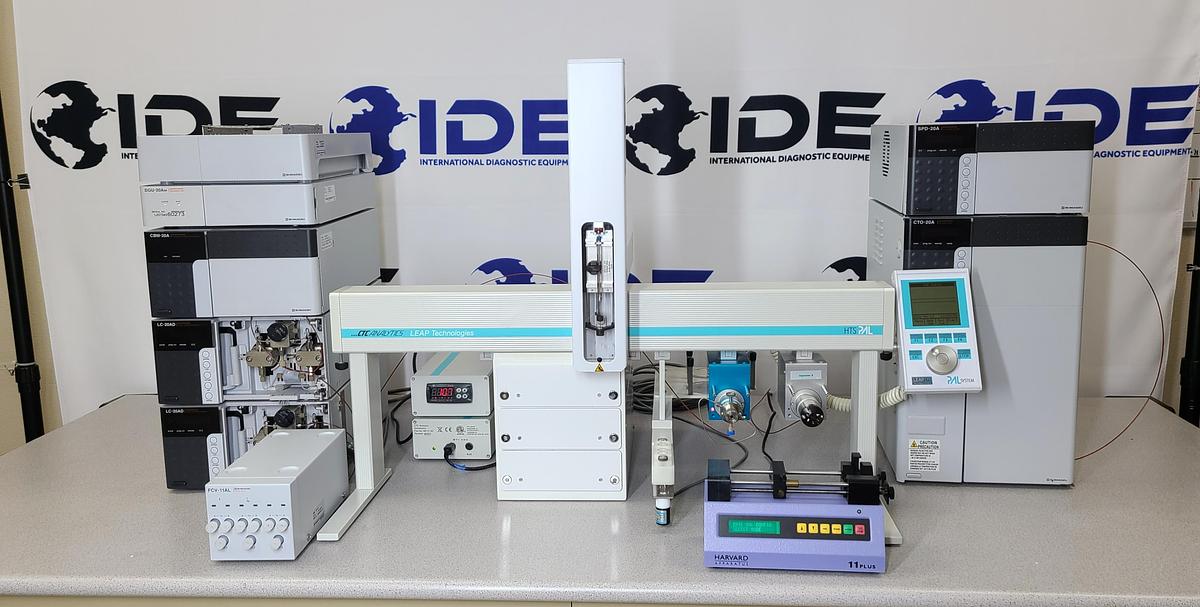

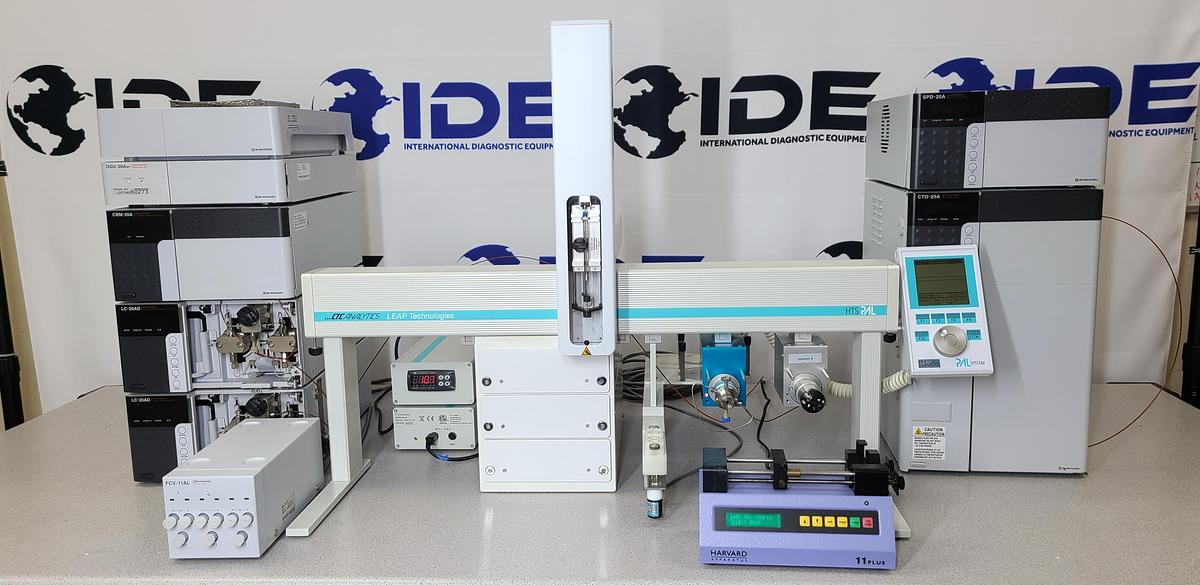

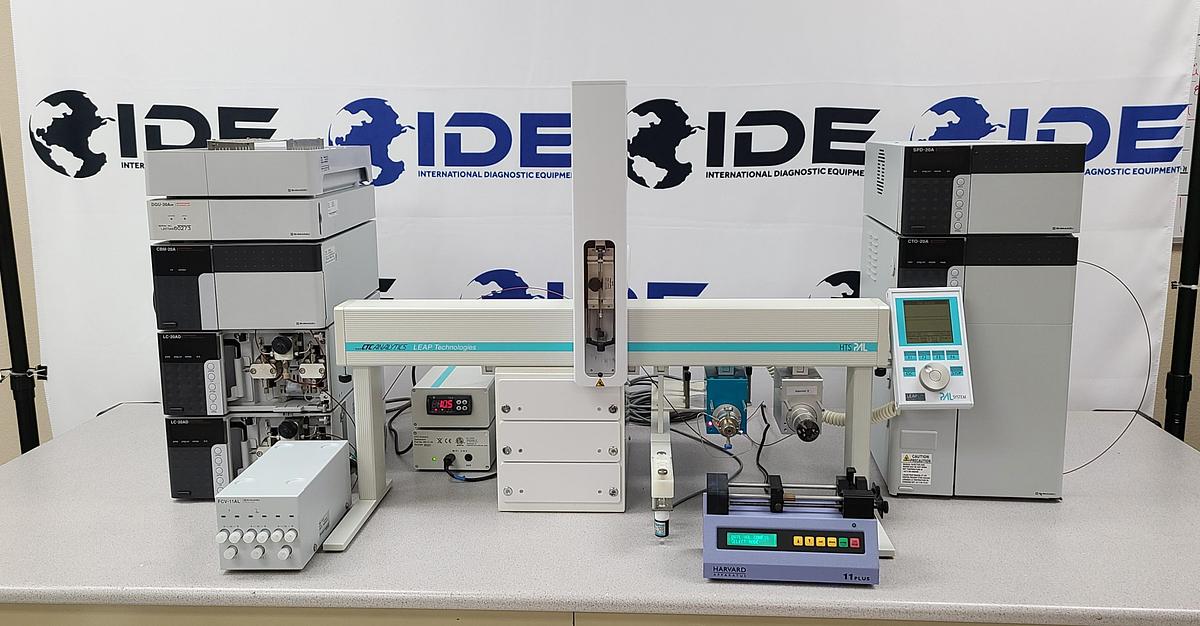

SHIMADZU Prominence LC-20a Modular HPLC System w/ CTC Analytics LEAP Auto Sampler and UV/VIS Detector

SHIMADZU Prominence LC-20a Modular HPLC System w/ CTC Analytics LEAP Auto Sampler and UV/VIS Detector

SHIMADZU Prominence LC-20a Modular HPLC System is a highly reliable, network-ready modular HPLC system engineered for high-throughput analytical testing in pharmaceutical, environmental, and biochemistry laboratories. Its modular stack design allows users to customize setups using high-precision solvent delivery pumps, rapid-injection autosamplers with low carryovers, and advanced optical detectors like UV-Vis or Photodiode Arrays. Controlled via a centralized web-ready system interface, it enables automated self-diagnostics, remote instrument monitoring, and fast analytical separations, making it a rugged and versatile workhorse. The CTC Analytics Autosampler is an open-frame, gantry-style robotic fluid handler. Unlike traditional, enclosed, brand-specific autosamplers, it is a highly adaptive platform engineered to bridge the gap between complex sample preparation and direct instrument injection.

INCLUDES:

• Agilent 6460C triple quadrupole mass spectrometer with Jet Stream ESI source

• Configured HP Z workstation PC with Agilent MassHunter installed

• Monitor, Keyboard & Connections

• Agilent MS40 Vacuum pump (6460C)

• Agilent 1260 Infinity II/1290 Infinity UHPLC system (Degasser,pumps, autosampler, column oven):

• Agilent 1260 Inf Solvent Tray

• Agilent 1260 Inf K4225A HiP Degasser

• Agilent 1260 Inf K1312B Bin Pump

• Agilent 1260 Inf II (2) G7167A Multisampler

• Agilent 1290 Inf K1316C TCC Clinical ed.

• All Fluidic tubing, fittings, and LC-to-MS transfer lines

• N2 gas lines from generator to MS ion source

• Waste collection and vent linesOverview

• Harvard 11 Plus Syringe Pump

Features:

·         Solvent Tray holds the mobile phase bottles securely at the very top of the system

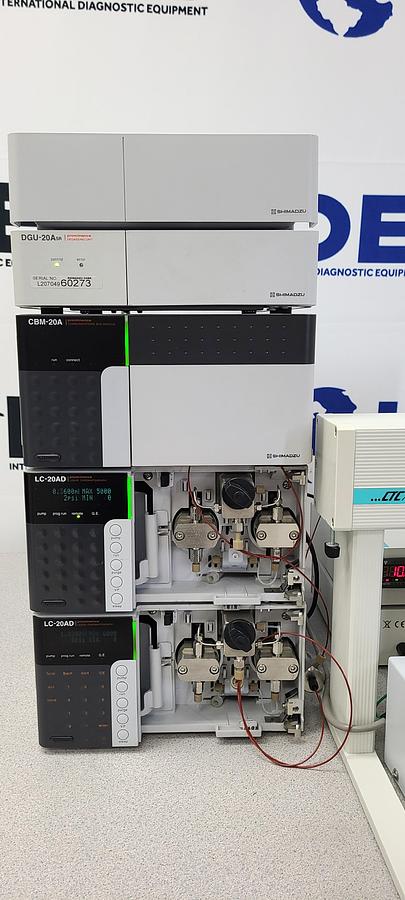

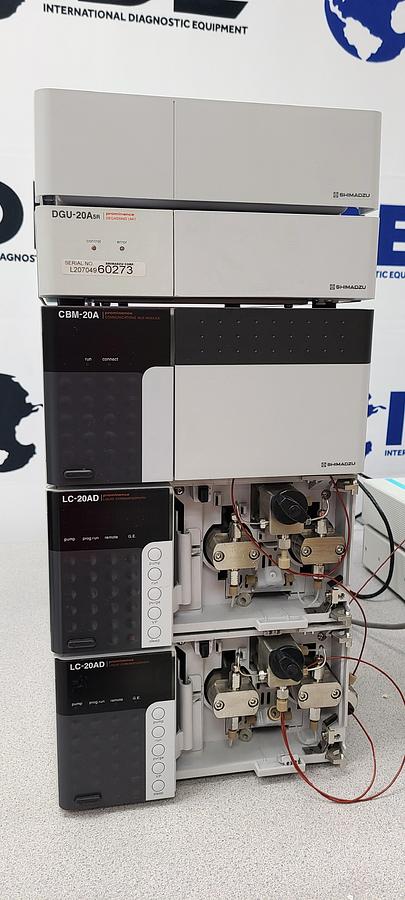

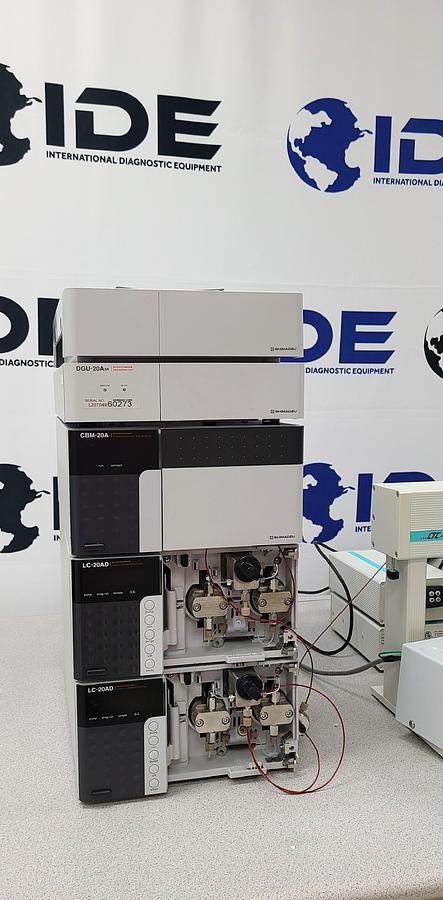

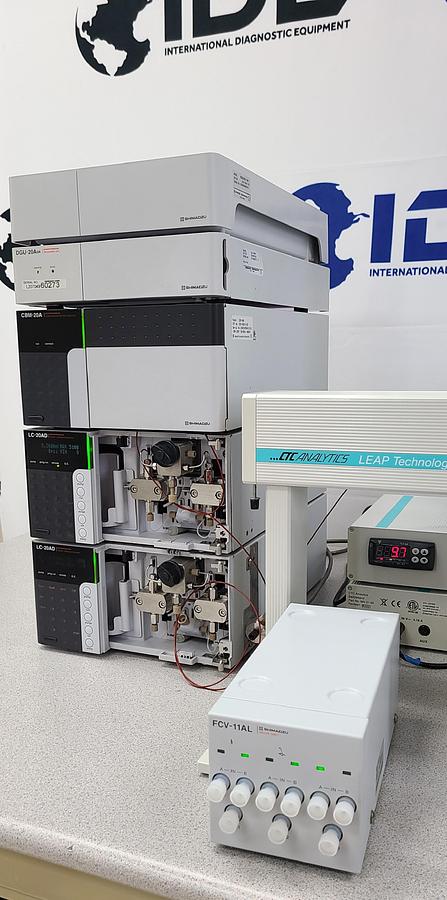

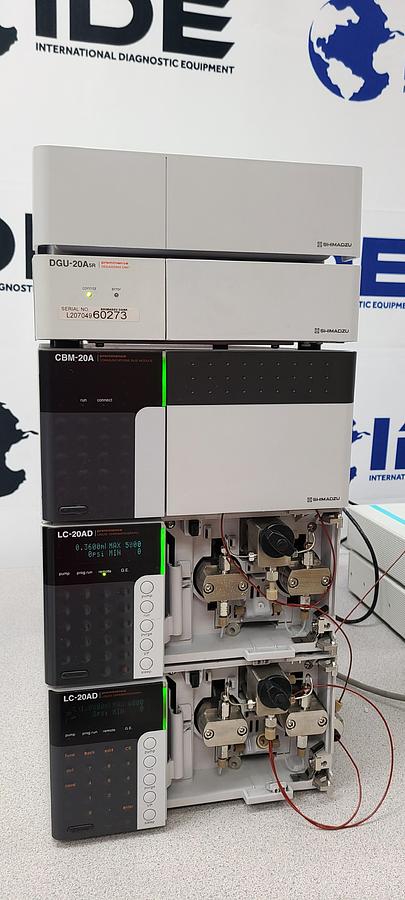

·         LC-20AD Solvent Pumps are high precisions pumps that deliver a continuous, pulse free stream of solvent

·         CBM-20A System Controller acts as the data and control interface linking all the stacked modules

·         CTO-20A Column Oven regulates the internal temperature around the analytical column to unsure highly reproduceable separation

·         DGU-20A Degasser removes dissolved gases from the mobile phase to prevent air bubbles from disruption the baseline

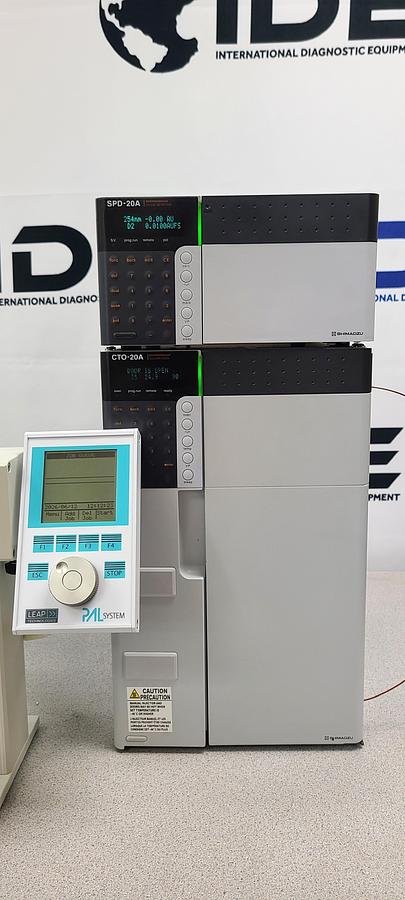

·         SPD-20A UV/VIS Detectors that monitor and record the separated compounds as they exit the column

·         Robotic Tool Change features high end configuration. The robot automatically switched between up to six different tools mid-sequence without manual intervention

·         Ultra-High Density Sample Capacity has an extended Y-Axis Frame to accommodate thousands of samples

Specifications:

Manufacturer

·         SHIMADZU Corporation

Model

·         Prominence LC20A Series

Weight

·         LC-20AD – 10kg to 11kg

·         CTO-20A – 27kg to 30kg

·         UV/VIS Detector – 13kg

·         CMB-20A – 6kg

Dimensions

·         LC-20AD – 260 x 140 x 420 mm

·         CTO-20A – 260 x 41 x 500 mm

·         UV/VIS Detector – 260 x 415 x 420 mm

·         CMB-20A – 260 x 140 x 420 mm

Power Requirements

·         LC-20AD – 100–240 VAC, 150–180 VA, 50/60 Hz

·         CTO-20A – 110–230 VAC, 100–300 VA, 50/60 Hz

·         UV/VIS Detector – 100–240 VAC, 150 VA, 50/60 Hz

·         CMB-20A – 100– 240 VAC, 60 VA, 50/60 Hz

System Footprint

·         Vertical Stack Design

Operating pH Range

·         pH to pH 14

Operating Temperature Range

·         39.2°F to 95°F

Flow Rate Setting Range

·         to 10.0000 mL/min

Maximum Discharge Pressure

·         40 MPa (approx. 5,800 psi / 400 bar)

Flow Rate Accuracy

·         ±1% or ±2 µL/min (whichever is greater)

Flow Rate Precision

·         ≤ 0.06% RSD

Gradient Capacity

·         Up to 4 solvents mixed using a low-pressure gradient unit, or 2 to 3 solvents via high-pressure mixing configurations

Temperature Control Method

·         Forced-air circulation

Temperature Setting Range

·         Ambient -10°C up to 85°C (with CTO-20AC cooling module)

Column Accommodations

·         Fits up to two 30 cm columns along with optional manual dosing taps or switching valves

Standard Sample Rack Capacity

·         Accommodates 175 standard 1 mL vials, 105 standard 2 mL vials, or up to 4 deep-well microplates.

High-Throughput Scaling

·         Can expand up to 4,068 samples utilizing an optional external Rack Changer module.

Injection Volume Range

·         µL to 100 µL (Standard loop configuration).

Injection Cycle Speed

·         Unparalleled processing speed of just 10 seconds per routine analytical injection

Configurations available:

• As is (working conditions)
• Re-Certified
