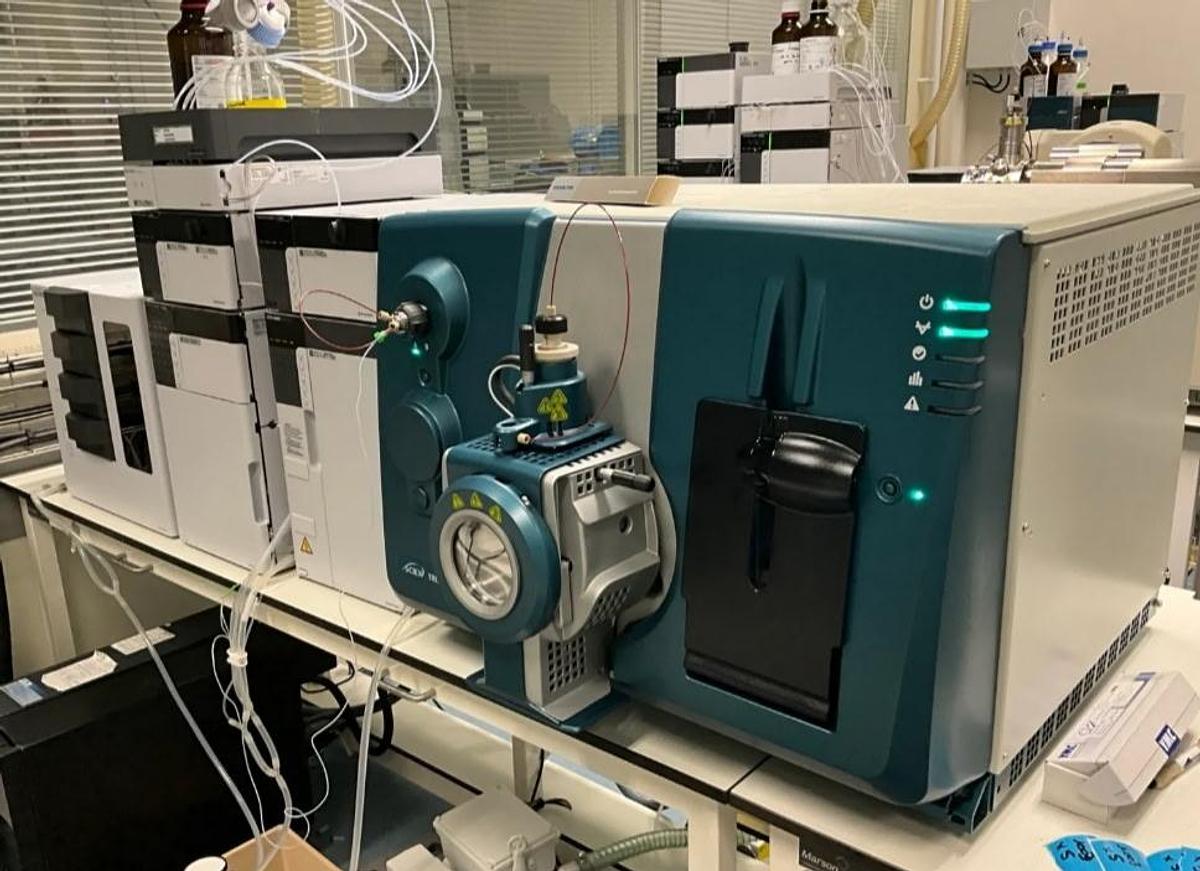

AB Sciex 5500 LC-MS/MS with Shimadzu LC-30

AB Sciex 5500 LC-MS/MS with Shimadzu LC-30

Includes:

The SCIEX Triple Quad 5500+ LC-MS/MS with Shimadzu LC-30 UHPLC is a high-performance analytical platform engineered for exceptional sensitivity, robustness, and high-throughput quantitative analysis. Combining the advanced capabilities of the SCIEX 5500+ Triple Quadrupole Mass Spectrometer with the precision and reliability of the Shimadzu LC-30 UHPLC, this system delivers outstanding performance for pharmaceutical research, clinical diagnostics, toxicology, food safety, environmental testing, and forensic applications. Designed for demanding laboratory workflows, it offers fast analysis, low-level detection, and highly reproducible results.

·         AB Sciex 5500 LC-MS/MS

·         Shimadzu LC-30 UHPLC

·         Binary pumps

·         Auto Sampler

·         Column Oven

·         Degasser

·         System Controller

·         Computer Workstation

·         Analyst Software

·         Turbo V Ion Source

·         Roughing Pumps

·         Cables and Tubing

Features:

• High-sensitivity Triple Quadrupole LC-MS/MS platform
• Shimadzu LC-30 (Nexera X2) UHPLC for rapid, high-resolution separations
• Turbo V Ion Source for robust performance across a wide flow range
• Optional OptiFlow Turbo V Source for microflow applications
• QTRAP Ready (upgradeable via software license)
• Fast 5 ms polarity switching
• Acquisition rates up to 500 MRM transitions/second
• Dynamic range up to 6 orders of magnitude
• Scheduled MRM Pro for increased compound coverage
• Analyst Software and compatible with SCIEX OS-MQ
• Compatible with SelexION Differential Mobility (optional)
• High sensitivity and excellent reproducibility for trace-level quantitation
• Low carryover and precise UHPLC injections
• Ideal for routine production laboratories and research applications

Ideal Applications:

• Pharmaceutical Research
• Clinical Research
• Toxicology
• Food Safety Testing
• Environmental Analysis
• Forensic Testing
• Biomarker Quantitation
• Therapeutic Drug Monitoring
• Veterinary Drug Analysis
• Pesticide and Residue Screening

Specifications:

• Manufacturer: Sciex
• Model: Triple Quad 550+ LC MS/MS
• Mass Analyzer: Triple Quadrupole
• Ion Source: Turbo V ESI/APCI
• Optional Ion Source: OptiFlow Turbo V
• Mass Range: 5-1,250 m/z
• Scan Speed: Up to 12,000 Da/sec
• MRM Acquistion Rate: Up to 500 MRM/sec
• Polarity Switching: 5ms
• Dynamic Range: Up to 6 orders of Magnitude
• Detector: High-Energy Dynode (HED) with Multichannel Election Multiple
• Resolution: Unit Resolution (0.7 Da FWHM)
• Software: Analyst Software / SCIEX OS-MQ Compatible
• LC System: Shimadzu LC-30 UHPLC
• Pump Type: Binary High Pressure Gradient
• Maximum LC Pressure: 130 MPa (19,000 psi)
• Autosampler: Shimadzu SIL-30AC
• Colum Oven: Shimadzu CTO-30A
• Dimensions: 72"x 36"x 30"
• Weight: Approximate weight range 700-900lbs
