Roche Cobas E411 Fully Automated Immunoassay Analyzer

Roche Cobas E411 Immunoassay Analyzer

Overview:

The cobas e 411 analyzer is a fully automated analyzer that uses a patented ElectroChemiLuminescence (ECL) technology for immunoassay analysis. It is designed for both quantitative and qualitative in vitro assay determinations for a broad range of applications

Includes:

·         Analyzer with computer

·         Software

·         Bench

·         Manual

Features:

• High sensitivity, reliability, and reproducibility of results due to ECL technology
• More than 100 assays available¹
• Up to 18 assays can be run at a throughput of up to 86 tests/hour²
• 9 min STAT applications for emergency sample assays, including:
• TnT Gen. 5
• Creatine-Kinase MB
• Myoglobin
• Parathyroid Hormone (PTH)
• Human Chorionic Gonadotropin (hCG)¹

Specifications:

System Overview

·         Fully automated, random-access immunoassay analysis system

·         Available in two configurations:

·         Disk system

·         Rack system

System Components

·         Analytical Module

o   Windows XP Embedded operating system

o   Integrated touch-screen PC

Sample Handling Module

·         Rack-operated or disk-operated configuration

Performance

·         Sample Throughput: Up to 88 samples/hour (theoretical maximum)

·         Test Throughput: Up to 88 tests/hour (theoretical maximum)

·         Number of Channels: 18 reagent channels/slots

o   Supports up to 18 different assays simultaneously

·         Programmable Assays: Up to 60 assays

o   Assay parameters programmable via 2D barcode

o   Programming by loading reagent/assay information

Sample Types

·         Serum

·         Plasma

·         Urine

Sample Input / Output Capacity

·         Disk System: Up to 30 samples

·         Rack System: Up to 75 samples on 15 racks

·         Rack: RD standard 5-position rack

·         Rack Types:

o   Routine

o   STAT

o   Control

o   Calibrator

STAT Sample Handling

·         Any unoccupied position on the sample disk

·         Dedicated STAT port on the rack feeder

Sample Containers

·         Primary Tubes: 5–10 mL

o   16 × 100 mm

o   16 × 75 mm

o   13 × 100 mm

o   13 × 75 mm

·         Sample Cups: 2.5 mL

·         Micro Cups: Not supported

·         Cup-on-Tube: Cup can be placed on top of a 16 × 75 mm or 16 × 100 mm tube

·         Sample Volume

o   Sample Volume per Test: 10–50 µL, depending on assay protocol

Minimum Sample Volume

·         Primary Tubes:

o   13 mm tube: 600 µL

o   16 mm tube: 1,000 µL

·         Sample Cup:

o   Standard cup-on-tube: 200 µL

o   Special setting: 150 µL

Sample Barcode Types

·         Code 128

·         Codabar (NW 7)

·         Interleaved 2 of 5

·         Code 39

On-Board Control Unit

·         PC with Pentium III processor

·         Color 15-inch SVGA touch-screen monitor

·         Windows XP Embedded operating system

System Interfaces

·         RS-232 serial interface

·         Bi-directional communication

·         Standard PC connectivity, including:

o   USB

o   Ethernet

o   Serial ports

o   Other communication interfaces for peripheral devices

Sample Database

• Capacity: Up to 2,000 test results
• Stores results for:
• Routine testing
• STAT testing
• Control testing

Test Methods

• Pre-defined assay protocols, including:
• Sandwich
• Competitive
• Titration

Calibrator & Quality Control (QC)

• Calibrator/QC Input:
• Rack system
• Sample disk
• Calibration:
• Calibration triggered upon QC failure
• 2-point calibration
• Calibration performed per lot or per cobas e-pack
• QC Methods:
• Individual QC
• Cumulative QC
• Preventive QC after calibration

Electrical Requirements

• Power Requirements:
• 100–120 VAC, 50/60 Hz, single phase
• 200–240 VAC, 50/60 Hz, single phase
• Power Consumption: 800 VA

Water & Waste Requirements

• Water Container Capacity: 3 liters
• Water Quality Requirements:
• 10 µS/cm or 0.1 MΩ
• Bacteria-free water
• Water Consumption:
• Approximately 3 L per 250 tests
• Approximately 12 mL per cycle

Regulatory Certifications

• GS
• CE
• UL
• C-UL
• CB Report and Certificate

Operating Conditions

• Ambient Temperature: 18–32 °C (64.4–89.6 °F)
• Ambient Humidity: 20–80%

Noise Level

• Standby Mode: 60 dBA
• Average During Operation: 63 dBA

Physical Specifications

• Width: 1,200–1,700 mm (disk/rack configuration)
• Depth: 730–950 mm (disk/rack configuration)
• Height: 560 mm (without PC unit)
• Weight:
• Disk configuration: Approximately 170 kg
• Rack configuration: Approximately 210 kg

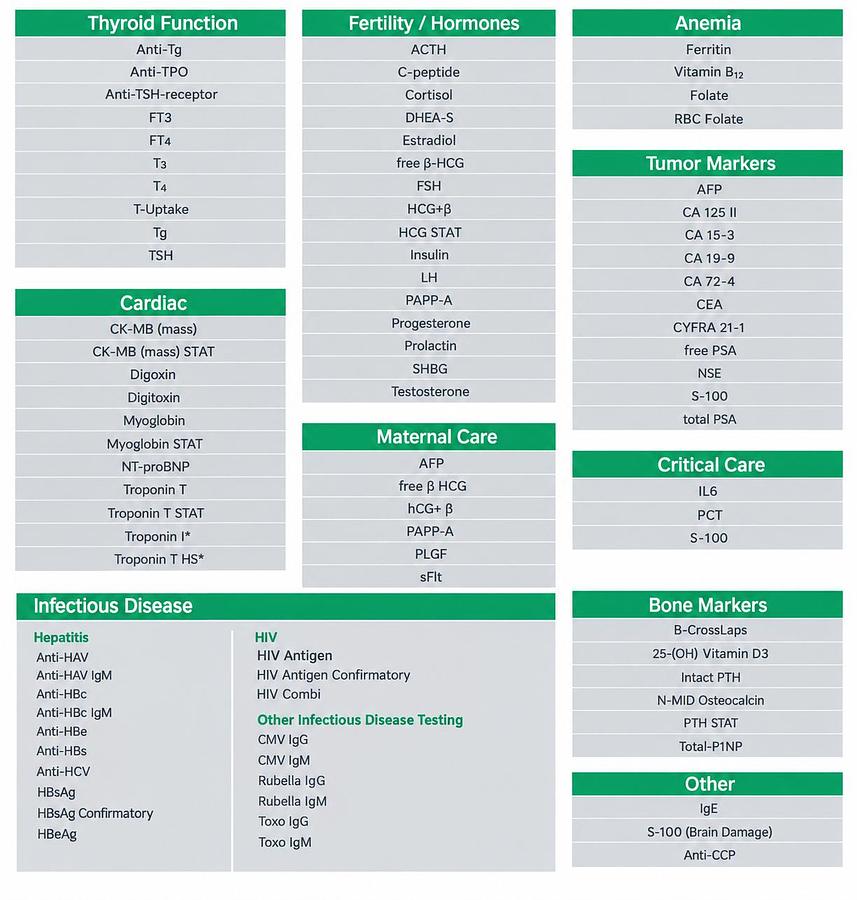

 Assay Menu:

Thyroid Function:

·         Anti-Tg

·         Anti-TPO

·         Anti-TSH-receptor

·         FT3

·         FT4

·         T3

·         T4 T-Uptake

·         Tg

·         TSH

·         Fertility / Hormones:

·         ACTH

·         C-peptide

·         Cortisol

·         DHEA-S

·         Estradiol

·         free B-HCG

·         FSH

·         HCG+B

·         HCG STAT

·         Insulin

·         LH

·         PAPP-A

·         Progesterone

·         Prolactin

·         SHBG Testosterone

 Anemia:

·         Ferritin

·         Vitamin B12

·         Folate

·         RBC Folate

Tumor Markers:

·         AFP

·         CA 125 II

·         CA 15-3

·         CA 19-9

·         CA 72-4

·         CEA

·         CYFRA 21-1

·         free PSA

·         NSE

·         S-100

·         total PSA

Cardiac:

·         CK-MB (mass)

·         CK-MB (mass) STAT

·         Digoxin

·         Digitoxin

·         Myoglobin

·         Myoglobin STAT

·         NT-proBNP

·         Troponin T

·         Troponin T STAT

·         Troponin I*

·         Troponin T HS*

 Maternal Care:

·         AFP

·         free β HCG

·         hCG+ β

·         PAPP-A

·         PLGF

·         sFLt

Critical Care:

·         IL6

·         PCT

·         S-100

Infectious Disease:

·         Anti-HAV

·         Anti-HAV IgM

·         Anti-HBc

·         Anti-HBc IgM

·         Anti-Hbe

·         Anti-HBs

·         Anti-HCV

·         HBsAg confirmatory

·         CMV IgG

·         CMV IgM

·         HBeAg

·         HBsAg

·         HIV Antigen

·         HIV Antigen confirmatory

·         HIV combi

·         Rubella IgG

·         Rubella IgM

·         Toxo IgG

·         Toxo IgM

Bone Markets:

·         B-CrossLaps

·         25-(OH)2 Vitamin D3

·         Intact PTH

·         N-MID Osteocalcin

·         PTH STAT

·         Total-P1NP

 Other:

·         IgE

·         S-100 (brain damage)

·         Anti-CCP
