Share Applied Biosystems QuantStudio 12k FLex Real-Time PCR System, 384-well, 0.1 mL

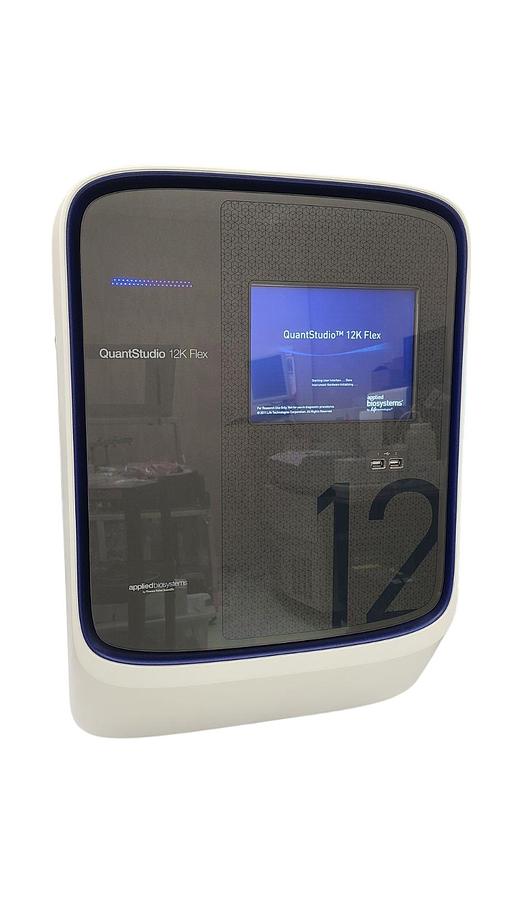

Applied Biosystems QuantStudio 12k FLex Real-Time PCR System, 384-well, 0.1 mL

Overview:

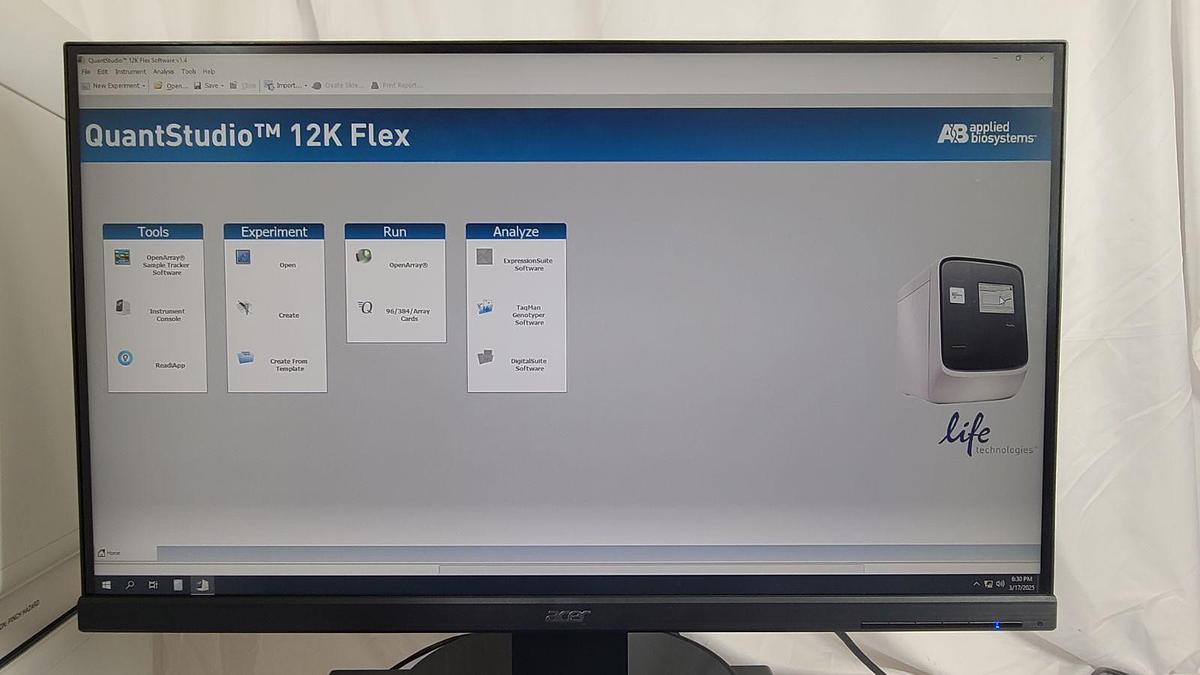

The QuantStudio 12K Flex Real-Time PCR System can simultaneously run up to four 3,072-reaction OpenArray plates in approximately four hours. When combined with the QuantStudio 12K Flex OpenArray AccuFill System, it can generate over 110,000 data points in an 8-hour day with as little as 20 minutes of hands-on time per run. Its feature-rich touchscreen interface and comprehensive software tools for gene expression and genotyping significantly enhance laboratory productivity.

Designed for maximum flexibility, the QuantStudio 12K Flex system includes five interchangeable block formats: OpenArray plate, TaqMan Array card, 384-well, and 96-well (0.1 mL and 0.2 mL), allowing unmatched versatility for labs with varied format requirements. The system also supports laboratory information management systems (LIMS) and includes features to assist with 21 CFR Part 11 compliance, making it suitable for high-throughput, validated environments.

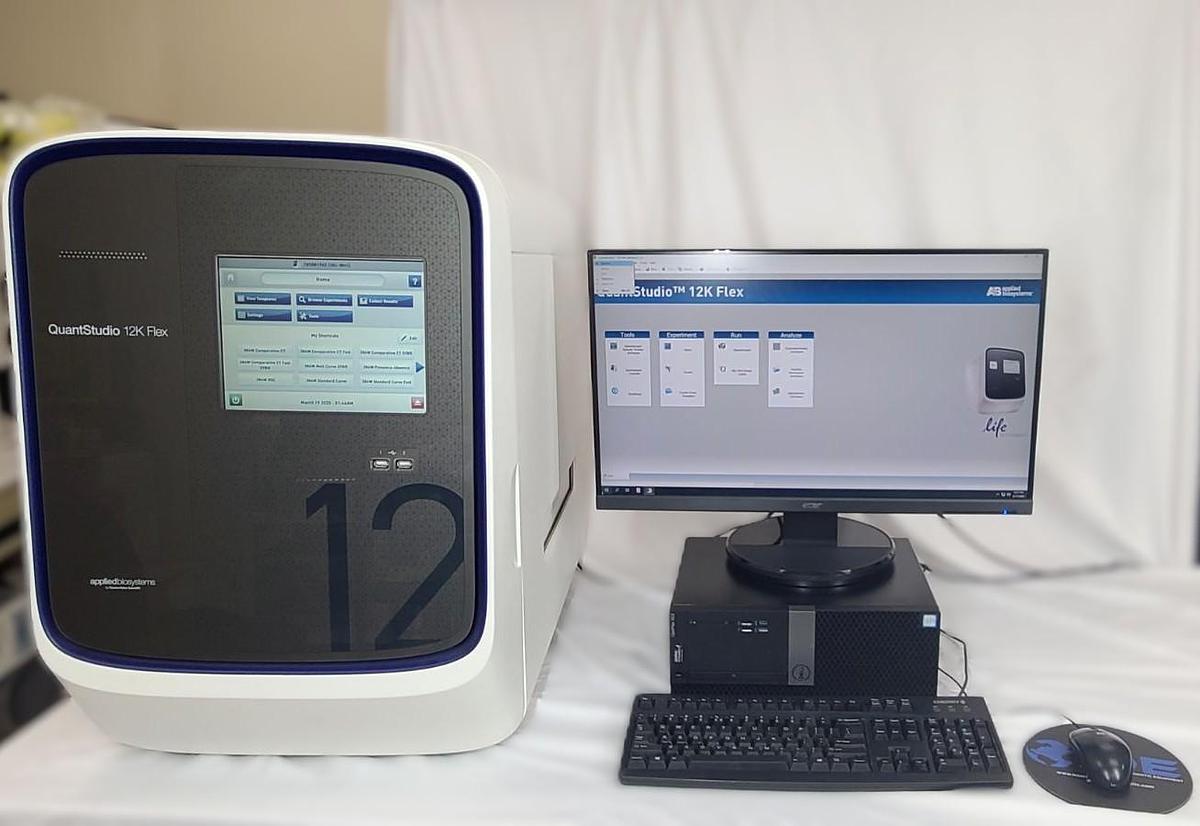

• Includes: One QuantStudio 12K Flex system complete with all accessories

Features & Benefits

• Maximize throughput with minimal resources:
• Run up to four OpenArray plates in a single run, increasing throughput by up to 32-fold.
• Five interchangeable blocks:
• OpenArray plate, TaqMan Array Card, 384-well, and 96-well (0.1 and 0.2 mL) blocks, all interchangeable without tools.
• Automation compatibility:
• Compatible with the Thermo Scientific Orbitor RS2 Microplate Mover to reduce manual tasks and increase productivity.
• Maximum multiplexing & chemistry options:
• Enhanced OptiFlex fluorescence detection allows up to six multiplexing targets.
• Reduced start-up and hands-on time:
• Start a 12,000-data-point experiment in 20 minutes or less.
• 21 CFR Part 11 compliance & LIMS support:
• Supports laboratory information management systems and optional security, auditing, and e-signature packages for validated, high-throughput environments.

Specifications: System Information

• Product Line: QuantStudio
• Format: OpenArray Plate
• Capacity: 4 OpenArray (3,072 Through-Hole) Plates
• Block Format: Interchangeable
• For Use With: QuantStudio systems
• External Computer: Computer and Monitor

Performance

• Dynamic Range: Up to 7 logs of linear dynamic range (OpenArray)

Display & Interface

• Display Type: Touchscreen

Upgrade Options

• TaqMan Array Card Block Upgrade Option
• 384-well Block Upgrade Option

Electrical Requirements

• Voltage: 100–240 VAC
• Frequency: 60 Hz

Physical Specifications

• Dimensions: 51 cm (W) × 74 cm (H) × 67 cm (D)
• Weight: 69 kg (152 lbs)
